Ruijie RG-S6250 10Gigabit Switch Optical Module Selection Solution
The RG-S6250 series switches are a new generation of high-performance, high-density 10 Gigabit switches launched by Ruijie Networks for cloud data centers and high-end campuses. This series of switches supports 48 10G ports and 8 100G ports, and each 100GE port can adapt to 100G and 40G. Next, ETU-LINK will introduce the common specifications of products such as optical modules, active optical cables (AOC), and high-speed cables (DAC) matched with Ruijie RG-S6250 switches.
1. 10 Gigabit optical module optional information
|
ETU PN |
Ruijie PN |
Package |
Wavelength (nm) |
Distance |
Connector Type |
Patch Cord |
|
ES85X-3LCD03 |
XG-SFP-SR-MM850 |
SFP+ |
850 |
300m |
LC |
OM3 |
|
ES31X-3LCD10 |
XG-SFP-LR-SM1310 |
SFP+ |
1310 |
10km |
LC |
OS2 |
|
ES55X-3LCD40 |
XG-SFP-ER-SM1550 |
SFP+ |
1550 |
40km |
LC |
OS2 |
|
ES55X-3LCD80 |
XG-SFP-ZR-SM1550 |
SFP+ |
1550 |
80km |
LC |
OS2 |
2. 40G/100G Optical Module Optional Information
|
ETU PN |
Ruijie PN |
Package |
Wavelength (nm) |
Distance |
Connector Type |
Patch Cord |
|
EQ854X-3MCD01 |
40G-QSFP-SR-MM850 |
QSFP+ |
850 |
100m |
MPO |
OM3 |
|
EQ314X-3LCD10 |
40G-QSFP-LR4-SM1310 |
QSFP+ |
1310 |
10km |
LC |
OS2 |
|
EQ28510X-3MCD01 |
100G-QSFP-SR-MM850 |
QSFP28 |
850 |
100m |
MPO |
OM3 |
|
EQ2xx10X-3LCD10 |
100G-QSFP-LR4-SM1310 |
QSFP28 |
1295 1300 1304 1309 |
10km |
LC |
OS2 |
3. 40G/100G AOC active optical cable optional information

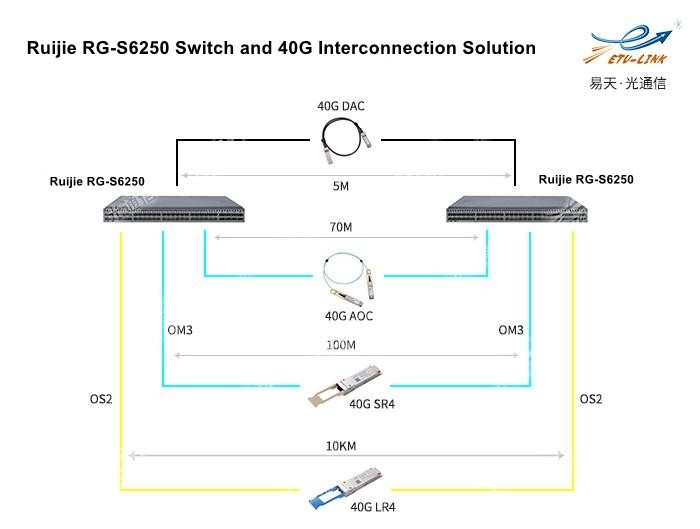

The above is the interconnection scheme of RG-S6250 series switches, optical modules and cables. The products provided in this article can be provided by ETU-LINK. The RG-S6250 switch can build a non-blocking data center network. It not only supports an advanced cache scheduling mechanism to ensure the effective use of the device's cache capacity, but also supports multiple services and large traffic to ensure the normal development of services.
