New H3C S10500 Series Ethernet Core Switch Optical Transmission Solution
H3C S10500 series switch products are core switching products specially designed and developed by H3C for cloud computing data center core, next-generation campus network core and metropolitan area network aggregation.Using advanced CLOS multi-level and multi-plane switching architecture,it can provide continuous bandwidth upgrade capability, support data center large two-layer technology TRILL,vertical virtualization and MDC (one virtual multiple) technology,support EVB and FCOE,and fully compatible with 40G and 100G Ethernet standard.
The following are the optical transmission solutions organized by ETU-LINK.

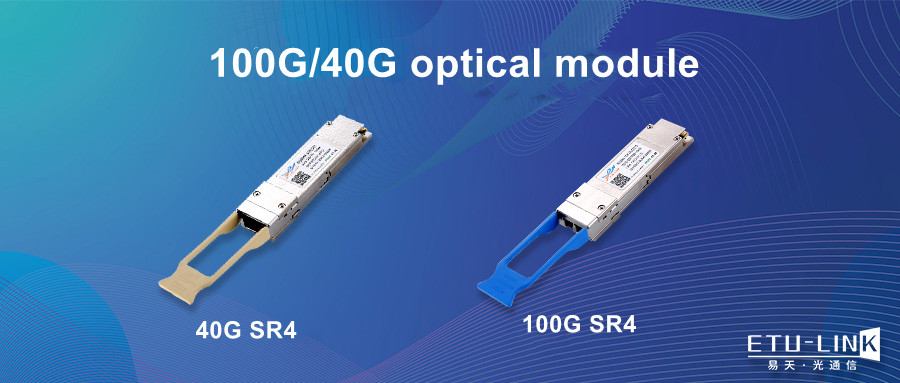

1. 100G/40G optical module
|
ETU PN |
H3C PN |
Package |
Wavelength (nm) |
Distance |
Interface type |
Patchcord matching
|
|
EQ28510X-3MCD01 |
QSFP-100G-SR4-MM850 |
QSFP28 |
850 |
100m |
MPO |
MPO-MPO Muitimode OM4 Optical fiber patch cord |
|
EQ2xx10X-3LCD10 |
QSFP-100G-LR4-WDM1300 |
QSFP28 |
1295 1300 1304 1309 |
10km |
LC |
LC-LC Single mode OS2 Optical fiber patch cord |
|
EQ854X-3MCD01 |
QSFP-40G-SR4-MM850 |
QSFP+ |
850 |
100m |
MPO |
MPO-MPO Muitimode OM3 Optical fiber patch cord |
|
EQ314X-3LCD10 |
QSFP-40G-LR4-PSM1310 |
QSFP+ |
1310 |
10km |
LC |
LC-LC Single mode OS2 Optical fiber patch cord |
2. 100G/40G AOC Active Optical Cable
|
ETU PN |
H3C PN |
Specification Description |
Connector type |
Cable length |
|
EQ2A10X-33CDxx |
QSFP-100G-D-AOC |
100G QSFP28 to 100G QSFP28 Active Optical Cable |
QSFP28 to QSFP28 |
Within 70m |
|
EQ2A10X-34S23CDxx |
QSFP-100G-4SFP-25G-AOC |
100G QSFP28 to 4X 25G SFP28 Active Optical Cable |
QSFP28to SFP28 |
Within 70m |
|
EQA4X-33CDxx |
QSFP-40G-D-AOC |
40G QSFP+ to 40G QSFP+ Active Optical Cable |
QSFP+ to QSFP+ |
Within 70m |
|
EQA4X-34S3CDxx |
QSFP-40G-4SFP-10G-AOC |
40G QSFP+ to 4X 10G SFP+ Active Optical Cable |
QSFP+ to SFP+ |
Within 70m |
3. 100G/40G DAC high speed cable
|
ETU PN |
H3C PN |
Specification Description |
Connector type |
Copper cable length |
|
EQ2DP10X-32Q2CNxx |
QSFP-100G-D-CAB |
100G QSFP28 to 100G QSFP28 direct cable |
QSFP28 |
Within 5m |
|
EQ2DP10X-34S2CNxx |
QSFP-100G-4SFP-25G-CAB |
100G QSFP28 to 4X 25G SFP28 direct cable |
QSFP28 SFP28 |
Within 5m |
|
EQDP4X-330CNxx |
LSWM1QSTK2 |
40G QSFP+ to 40G QSFP+ direct cable |
QSFP+ to QSFP+ |
Within 5m |
|
EQDP4X-34SCNxx |
LSWM1QSTK5 |
40G QSFP+ to 4X 10G SFP+ direct cable |
QSFP+ to SFP+ |
Within 5m |
4. 10G/1G Optical transceivers
|
ETU PN |
H3C PN |
Rate |
Wavelength （nm） |
Distance |
Connector type |
optical fiber type |
|
SFP-XG-SX-MM850-A |
ES85X-3LCD03 |
10G |
850 |
300m |
LC |
Muitimode |
|
SFP-XG-LX-SM1310 |
ES31X-3LCD10 |
10G |
1310 |
10km |
LC |
Single mode |
|
SFP-GE-SX-MM850 |
ES8512-3LCD05 |
1.25G |
850 |
550m |
LC |
Muitimode |
|
SFP-GE-LX-SM1310 |
ES3112-3LCD10 |
1.25G |
1310 |
10km |
LC |
Single mode |
S10500 products include six models, S10504, S10506, S10508, S10508-V, S10510, and S10512, which can adapt to the port density and performance requirements of different network scales and provide users with strong equipment guarantees for core network construction.
ETU-LINK can provide optical modules of various specifications compatible with H3C equipment. All optical module products have passed the real machine test before shipment to ensure compatibility and have undergone a number of high-quality tests to ensure their stability. Provide users with system solutions to help users build a low-cost, high-efficiency, and easy-to-manage stable network.
