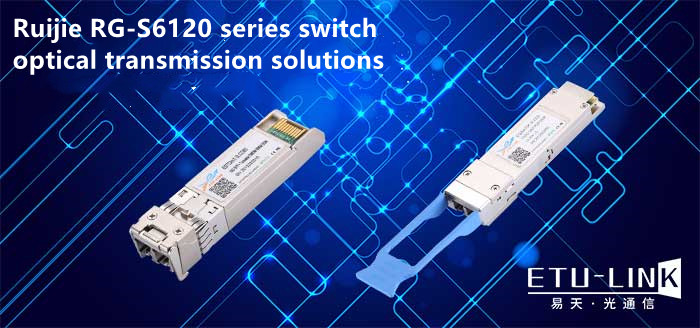

Ruijie RG-S6120 Series Aggregation Switch Optical Transmission Solution

  • March 02. 2023

The RG-S6120 series switches are Ruijie Networks multi-service 10 Gigabit switches for next-generation converged networks. It integrates rich campus and data center features. This series of switches adopts advanced hardware architecture design and is equipped with Ruijie Networks' new modular operation. The system provides faster hardware processing performance and more convenient operation and use experience.


The RG-S6120 series switches are equipped with 10G SFP+ ports, 25G SFP28 ports, 40G QSFP+ ports, and 100G QSFP28 ports. ETU-LINK will provide you with the following optical module solutions based on these port types.

ETU PN

package

Wavelength

(nm)

Transmission distance

Connector Type

Fiber Type

ES85X-3LCD03

SFP+

850

300m

Dual LC

OM3

ES31X-3LCD10

SFP+

1310

10km

Dual LC

OS2

ES2852X-3LCD01

SFP28

850

70M

100M

Dual LC

OM3/OM4

ES2312X-3LCD10

SFP28

1310

10KM

Dual LC

OS2

EQ854X-3MCD01

QSFP+

850

100/

150m

MPO

OM3/OM4

EQxx4X-3LCD10

QSFP+

1271

1291

1311

1331

10KM

Dual LC

OS2

EQ28510X-3MCD01

QSFP28

850

100m

MPO

OM4

EQ2xx10X-3LCD10

QSFP28

1295

1300

1304

1309

10km

LC

OS2


The above is the interconnection scheme of Ruijie RG-S6120 series switches, optical transceivers and cables. The optical modules products provided in this article can be provided by ETU-LINK. RG-S6120 series switches provide high-performance, complete end-to-end service quality, flexible and rich security settings for large-scale network aggregation, small and medium-sized network core, and campus data center access, meeting the needs of high-speed, secure, and intelligent enterprise networks.
