Raisecom ISCOM3000X Series 10-gigabit switch optical module solution

  • April 11. 2023

Raisecom ISCOM3000X series 10-Gigabit switch is equipped with 1U standard chassis, small size, large capacity, 1.28T switching capacity, L2/L3 full line speed forwarding; 48 10 Gbit/s SFP+ downstream ports, four or six 40 Gbit/s QSFP+ upstream ports, QSFP+ ports can be used as four 10GE SFP+ ports, providing flexible networking capabilities and meeting the requirement for high-density access to 10 Gbit/s servers.



There are two models of ISCOM3048XF-4Q and ISCOM3048XF-6Q. The ISCOM3048XF-4Q is equipped with 48 10G SFP+ ports (compatible with gigabit SFP downward) and four 40G QSFP+ ports. The ISCOM3048XF-6Q comes with 48 10G SFP+ ports (downward-compatible gigabit SFP) and four 40G QSFP+ ports. The following easy daylight communication (ETU-LINK) will help you match the corresponding transmission products according to the port type.

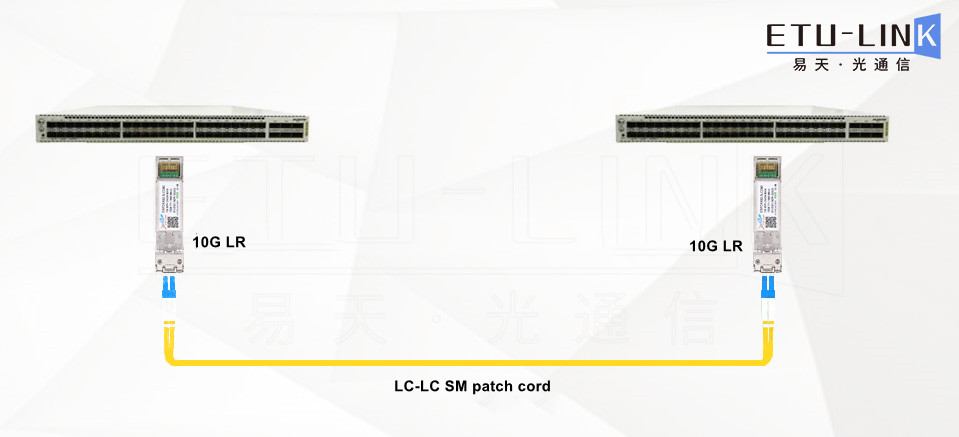

The type of optical module selected mainly depends on the transmission distance required by the equipment is how many meters. Generally, multi-mode optical module can be selected for short distance transmission, and multi-mode optical fiber jumper can be used. Single-mode optical module and single-mode optical fiber jumper can be used for long-distance transmission. The following is the 10-gigabit optical module solution for the 10 Gbit/s SFP+ ports.



ETU PN

Data Rate

Package

Wavelength(nm)

Distance

Connector

Fiber type

ES85X-3LCD03

10G

SFP+

850

300m

Dual LC

OM3

ES31X-3LCD10

10G

SFP+

1310

10km

Dual LC

OS2

ES55X-3LCD40

10G

SFP+

1550

40km

Dual LC

OS2

ES55X-3LCD80

10G

SFP+

1550

80km

Dual LC

OS2



40G QSFP+ optical module solution:


ETU PN

Data Rate

Package

Wavelength(nm)

Distance

Connector

Fiber type

EQ854X-3MCD01

40G

QSFP+

850

150m

Dual LC

OM3

EQxx4X-3LCD10

40G

QSFP+

CWDM

10km

Dual LC

OS2

EQxx4X-3LCD40

40G

QSFP+

CWDM

40km

Dual LC

OS2



The above is the ISCOM3000X series 10-Gigabit switch optical module solution introduced by ETU-LINK. For more details, please refer to the previous article.
