The Optical Module Solution for Juniper EX4650 Switch

  • April 15. 2023

Juniper EX4650 Ethernet switch provides Layer 2 and Layer 3 connectivity of 2 Tbps to networked devices such as security routers, servers, and other switches. The EX4650 is equipped with 48 line speed 10GbE/25GbE small pluggable optical module (SFP/SFP+/SFP28) ports and 8 line speed 40GbE/100GbE quad core SFP+optical module (QSFP+/QSFP28) ports in a compact 1U platform, providing flexible support for mixed 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE environments. Below, ETU-LINK will help you match corresponding transmission products based on the type of port.


1. 1G port

Gigabit ports can use Gigabit SFP optical modules or 1G DAC cables. Please refer to the table below for details.


Juniper PN

ETU PN

Rates

Wavelength

Distace

Fiber Type

EX-SFP-1GE-SX

ES8512-3LCD05

1.25G

850nm

550m

Multi mode

EX-SFP-1GE-LX

ES3112-3LCD10

1.25G

1310nm

10km

Single mode


2. 10G port

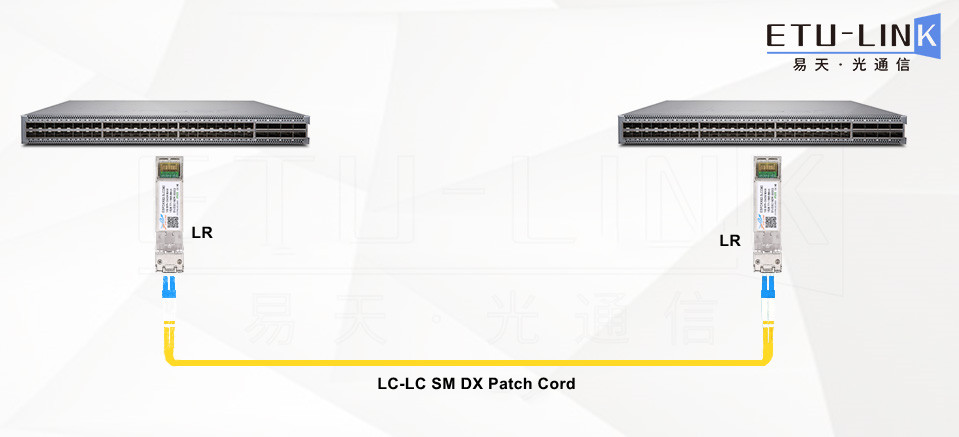

The 10 Gigabit port can be transmitted using 10G SFP+ optical modules with fiber patch cords. For details, see the table below.

Juniper PN

ETU PN

Rates

Wavelength

Distance

Fiber Type

EX-SFP-10GE-SR

ES85X-3LCD03

10G

850nm

300m

Multi mode

EX-SFP-10GE-LR

ES31X-3LCD10

10G

1310nm

10km

Single mode

EX-SFP-10GE-ER

ES55X-3LCD40

10G

1550nm

40km

Single mode

EX-SFP-10GE-ZR

ES55X-3LCD80

10G

1550nm

80km

Single mode


3. 25G port

The 25G port can be transmitted using a 25G SFP28 optical module with fiber patch cords. For details, see the table below.

Juniper PN

ETU PN

Rates

Wavelength

Distance

Fiber Type

JNP-25G-SR

ES2852X-3LCD01

10G

850nm

100m

Multi mode

JNP-25G-LR

ES2312X-3LCD10

10G

1310nm

10km

Single mode


4. 40G port

The 40G port can be transmitted using a 40G QSFP+ optical module with optical patch cords. For details, see the table below.

Juniper PN

ETU PN

Rates

Wavelength

Distance

FIBER Type

EX-QSFP-40G-SR4

EQ854X-3MCD01

40G

850nm

100m

Multi mode

EX-QSFP-40G-LR4

EQxx4X-3LCD10

40G

CWDM

10km

Single mode


5. 100G port

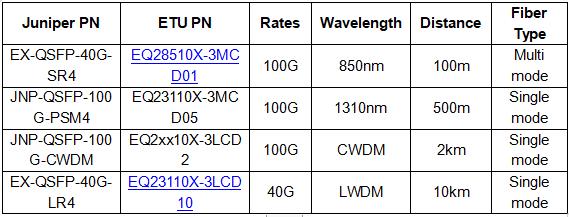

100G ports can be transmitted using 100G QSFP28 optical modules with fiber patch cords. For details, see the table below.


The above is the configuration scheme for Juniper switches listed by ETU-LINK. For more information on the configuration scheme for switches and optical modules, please refer to previous articles.
