Ruijie RG-6510 series switch optical module solution
Ruijie RG-6510 series switch is a new generation of high-performance, high-density 25G/100G switch for cloud data center and high-end Park, which can meet the design requirements of spine-leaf three-layer network architecture. Ruijie RG-6510 switch is equipped with 48 25G ports and 8 100G ports (can support 100G, 40G adaptive). Next, etu-link will introduce the optical module collocation solution of Ruijie RG-6510 switch.

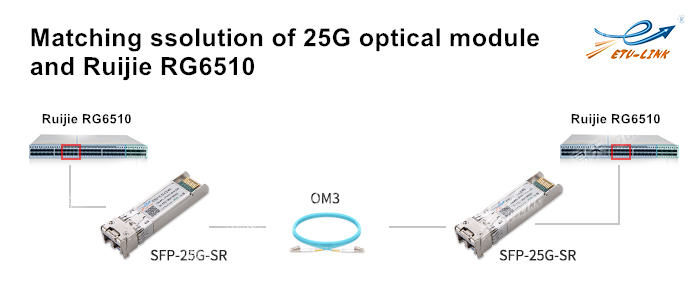

25G optical module type
|
ETU PN |
Abbreviation |
Package form |
Wavelength
（nm） |
Connector |
Distance |
Patch cord |
|
SFP-25G-SR |
SFP28 |
850 |
Dual LC |
70M
100M |
OM3/OM4 |
|
|
SFP-25G-LR |
SFP28 |
1310 |
Dual LC |
10KM |
OS2 |
|
|
ES2312X-3LCD40 |
SFP-25G-ER |
SFP28 |
1310 |
Dual LC |
40KM |
OS2 |
|
ES2Cxx2X-3LCD10 |
25G CWDM |
SFP28 |
1270-1370 |
Dual LC |
10KM |
OS2 |
|
ES2B232X-3LCD10 |
25G BIDI |
SFP28 |
1270/1330 |
Single LC |
10KM |
OS2 |

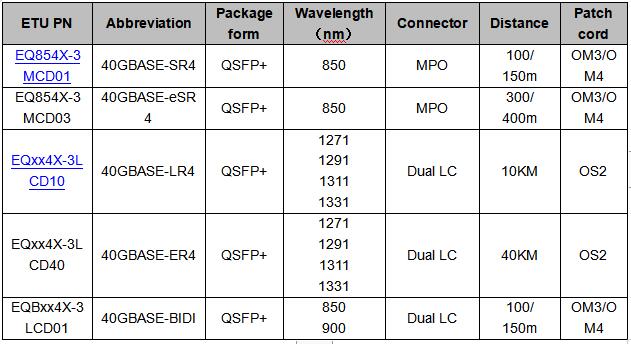

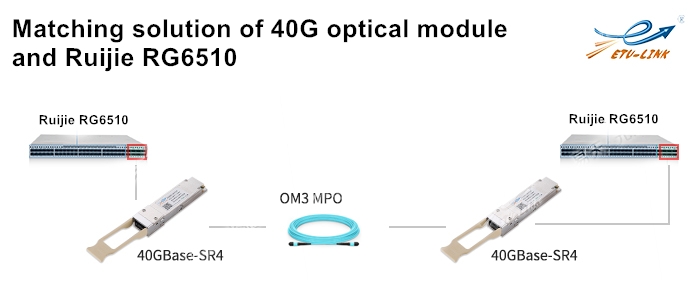

40G optical module type

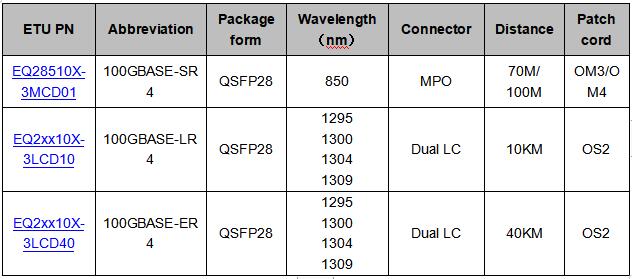

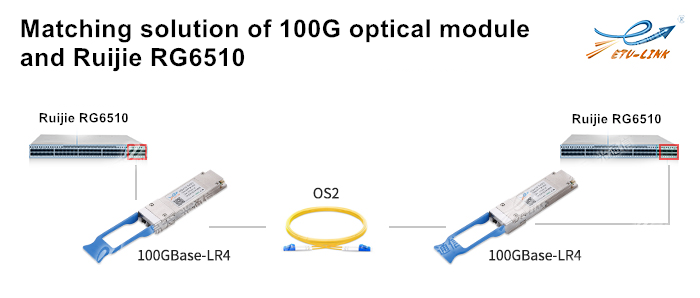

100G optical module type
ETU-LINK can provide the above optical modules. Ruijie RG6150 switch is a line speed product, which conforms to the "East-West" trend of data center traffic. It can provide powerful cache capacity and support advanced cache scheduling mechanism, which is suitable for the next algebraic data center with large traffic.
