Optical module interconnection solution of H3C S6820 series data center switch

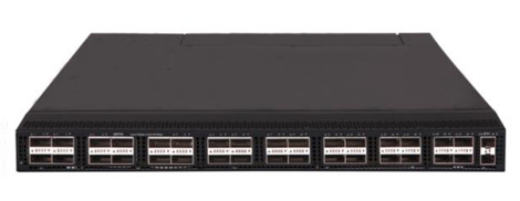

H3C S6820 series switch is a high-density intelligent 100G switch developed by H3C company for cloud data center and high-end park. It has strong hardware forwarding ability and rich data center business characteristics. It can support up to 32 100G QSFP28 ports and two 1g out of band management network ports (one for Optoelectronics). Each 100G port can not only support 100g, 40g adaptive, but also support quarter, so as to reach 128 25GE. Next, etu-link will introduce the interconnection scheme of H3C S6820 series switch with optical module and cable.

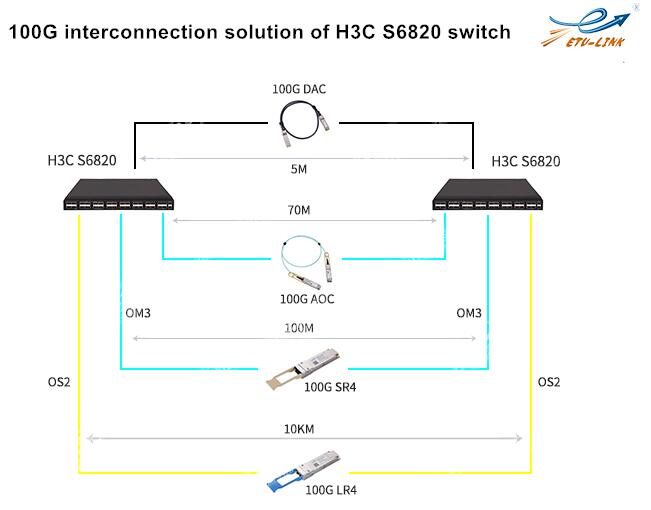

100G optical module matching information
|
ETU PN |
H3C PN |
Package |
Wavelength（nm） |
Distance |
Connector |
Patch cord |
|
EQ28510X-3MCD01 |
QSFP-100G-SR4-MM850 |
QSFP28 |
850 |
100m |
MPO |
OM3 |
|
EQ2xx10X-3LCD10 |
QSFP-100G-LR4-WDM1300 |
QSFP28 |
1295
1300
1304
1309 |
10km |
LC |
OS2 |
100G AOC matching information
|
ETU PN |
H3C PN |
Description |
Connector |
Length |
|
EQ2A10X-33CDxx |
QSFP-100G-D-AOC |
100G QSFP28 to 100G QSFP28 AOC cable |
QSFP28
To QSFP28 |
<70m |
|
EQ2A10X-34S23CDxx |
QSFP-100G-4SFP-25G-AOC |
100G QSFP28 to 4X 25G SFP28 AOC cable |
QSFP28to
SFP28 |
<70m |
100G DAC matching information
|
ETU PN |
H3C PN |
Description |
Connector |
Length |
|
EQ2DP10X-32Q2CNxx |
QSFP-100G-D-CAB |
100G QSFP28 to 100G QSFP28
Direct attach cable |
QSFP28to QSFP28 |
<5m |
|
EQ2DP10X-34S2CNxx |
QSFP-100G-4SFP-25G-CAB |
100G QSFP28 to 4X 25G SFP28 Direct attach cable |
QSFP28to
SFP28 |
<5m |
The above module products can be provided by ETU-LINK. H3C S6820 series is located in high-density 100GE or 40GE convergence switch in cloud data center and cloud computing network, and can also be used for TOR overhead access switch in Overlay network or converged network.
