Optical module direct connection solution of Huawei S12700 series switch

  • September 12. 2020

Huawei S12700 is an agile switch designed and developed for the core of next generation campus network. It adopts fully programmable architecture to meet business requirements flexibly and quickly. S12700 provides high-performance L2 / L3 switching service, and built-in high-capacity WLAN AC controller to realize the in-depth integration of wired and wireless services, breaking through the capacity bottleneck of wireless AC, and meeting the 10-year evolution of the park.

The maximum switching capacity of Huawei S12700 series agile switch is 307.2Tbps. It supports 100GE, 40GE, 10GE and GE port types. It supports 12 service board slots and 96 100GE ports at most.

According to Huawei S12700 series agile switch, etu-link recommends the following optical modules that can match the port rate of S12700 switch.

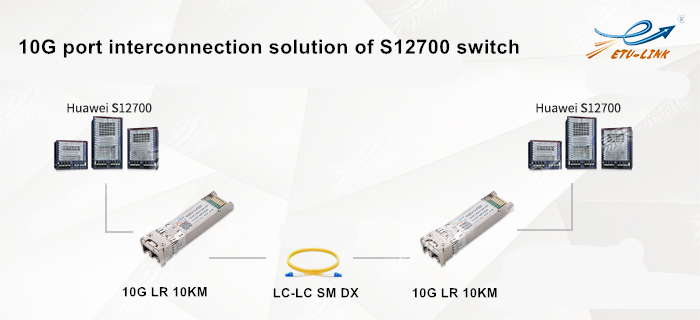

10G SFP+ optical modules

ETU PN

HUAWEI PN

Package

Wavelength

Distance

ESB23X-3LCD10

SFP-10G-BXU1

SFP+

1270/1330nm

10KM

ES31X-3LCD10

SFP-10G-LR

SFP+

1310nm

10KM

ES31X-3LCD40

SFP-10G-ER-1310

SFP+

1310nm

40KM

ES55X-3LCD40

OSX040N01

SFP+

1550nm

40KM

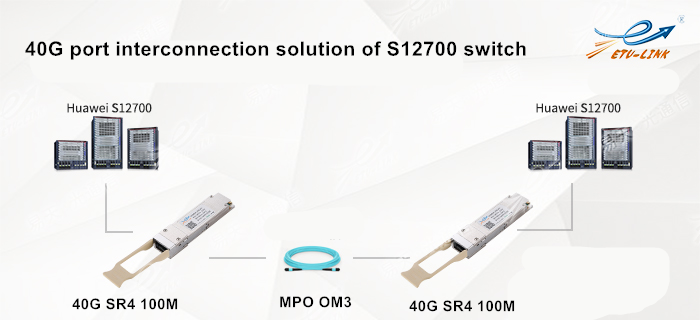

40G QSFP+ optical modules

ETU PN

HUAWEI PN

Package

Wavelength

Distance

EQ854X-3MCD03

QSFP-40G-eSR4

QSFP+

850

300M

EQxx4X-3LCD10

QSFP-40G-LR4

QSFP+

CWDM

10KM

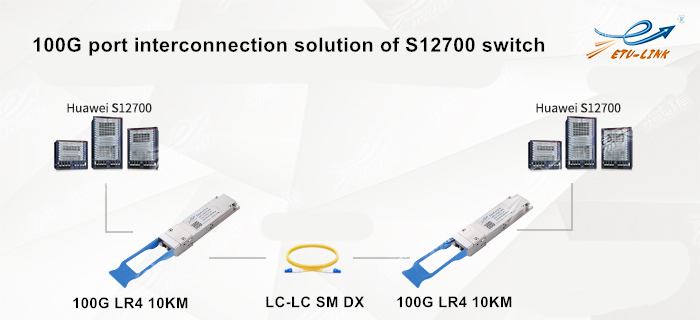

100G QSFP28 optical modules

ETU PN

HUAWEI PN

Package

Wavelength

Distance

EQ2xx10X-3LCD10

QSFP28-100G-LR4

QSFP28

1295/1300/1304/1309nm

10KM

EQ28510X-3MCD01

QSFP28-100G-SR4

QSFP28

850nm

100M

The above is the optical module collocation scheme of Huawei S12700 switch recommended by ETU-Link. As a professional optical module manufacturer, the above products can be provided.

Today, enterprises pay more attention to customization and overall situation. S12700 series of agile switches are open and customized from the macro perspective, and adapt to various environments from the application scenarios and micro demands of users, so as to meet various challenges and build a campus network with both customization and global characteristics.
