Advantages and application of 10 Gigabit copper module

  • October 20. 2020

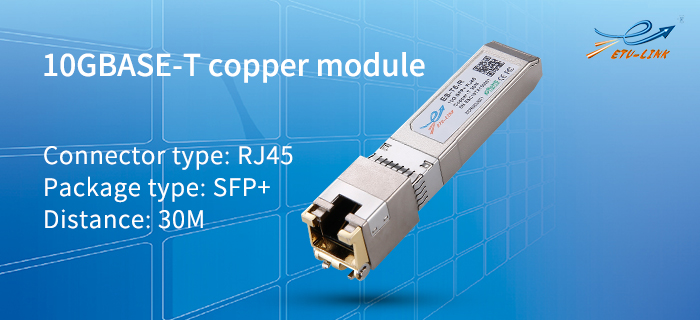

The 10 Gigabit copper module, namely 10GBASE-T copper SFP+ module, adopts RJ45 interface, with the highest speed of 10G and the longest transmission distance of 30m. The 10 Gigabit electrical interface module is mainly integrated in switches, network cards and other products, which is widely used in 10 Gigabit Ethernet.

Because of the advantages of high cost performance and long service life, 10G copper module is adopted by big data center, internal network system of University Research Institute and government video monitoring system. The copper module not only reduces the economic burden, but also realizes the hard requirement of long-term operation.

Compared with other optical modules, the advantage of copper module lies in its cost performance. In the transmission distance of 100m, if the optical module needs to use optical fiber for wiring and add photoelectric converter equipment, the application cost of optical module is too high; while the use of copper module can be directly used in the existing copper cable wiring system.

In most cases, the data center uses active optical cable or high-speed cable for interconnection. However, because the transmission distance of high-speed cable is within 7m, the transmission distance is too short. Although the transmission distance of active cable can meet the requirements of transmission distance, the cost is too high within 100m transmission distance. At this time, the copper module just makes up for the lack of high-speed cable transmission distance and the high cost of active cable within 100m.

Name

Copper module

DAC cable

Optical module

AOC cable

Transmission medium

Twisted pair

Twisted pair

Optical fiber

Optical fiber

Transmission distance

30m

7m

>100m

300m/400m

Connector type

RJ45

Integrated

LC

Integrated

Cable type

Twinax

None

Optical fiber

None

However, the copper module also has some disadvantages. For example, the power consumption of the copper module is too large, and it does not have the DDM digital monitoring function. By comparing the advantages and disadvantages of the interface module, we can know more clearly what scenarios it can be used in and how to reduce the cost of networking.

The 10GBase-T Copper SFP+ copper module of ETU-LINK has passed the strict 1kV voltage surge test and other test items on the client side to realize batch delivery, marking that the performance and reliability of the product have reached the industry leading level.

ETU-LINK 10GBASE-T copper module can realize 10GE Ethernet transmission of 30m distance by using category 6 or category 7 copper cabling, and the working rate can be automatically negotiated and matched. It can reuse the previous twisted pair wiring resources to complete 10GE network deployment, and support 1000gbase-t (100m) / 2.5gbase-t (50m) / 5gbase-t (50m). The module meets sff-8431 and sff-8432 MSA, with a maximum power consumption of only 2.5W. It can be used in a variety of harsh working environments, and supports temperature adaptation beyond the commercial grade of 0-70 ℃.
