Introduction and application of 10 Gigabit single fiber module

  • September 30. 2020

10G single-mode optical module is usually used with OS2 single-mode fiber, and the maximum speed is 10.3gb/s. At present, the mainstream type of SFP+ package is adopted.

The dual fiber wavelengths of 10Gigabit single-mode optical modules are 1310nm and 1550nm, and the single fiber wavelengths are mainly 1270nm and 1330nm. The transmission distance is generally more than 10km, which is mainly used in data center network. Next, etu-link will introduce the type and application of 10G SFP+ single mode optical module.

Basic features of 10G SFP+ single mode optical module products:

Ø Hot pluggable SFP + package

Ø Full duplex transceiver module

Ø Transmission rate up to Gbps to 10.3125Gbps

Ø The maximum power consumption is less than 1W

Ø Built in digital diagnostics (DDM)

Ø 3.3V supply voltage

Ø Comply with ROHS environmental standard (lead-free)

Ø Working temperature: 0°C70°CCommercial

Ø Meet the standard of SFP+ MSA and 10G Ethernet

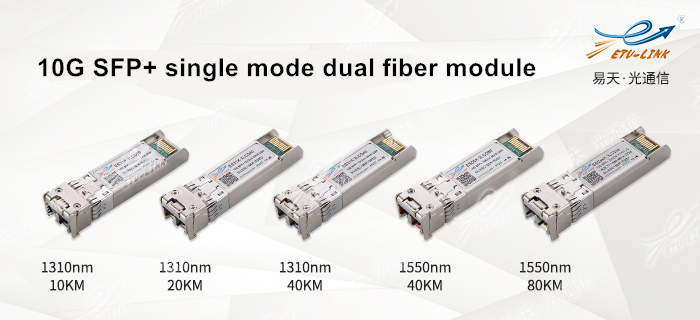

10g SFP+ single mode dual fiber module type and fiber Collocation:

Module type

ETU-LINK PN

Description

Optical fiber collocation

10G single mode dual fiber

ES31X-3LCD10

10G SFP+ 1310nm 10KM LC

OS2 LC—LC Duplex patch cord

ES31X-3LCD20

10G SFP+ 1310nm 20KM LC

ES31X-3LCD40

10G SFP+ 1310nm 40KM LC

ES55X-3LCD40

10G SFP+ 1550nm 40KM LC

ES55X-3LCD80

10G SFP+ 1550nm 80KM LC

ES55X-3LCD100

10G SFP+ 1550nm 100KM LC

10G SFP+ single mode single fiber module type and fiber Collocation:

Module type

ETU-LINK PN

Description

Optical fiber collocation

10G single mode single fiber

ESB23X-3LCD10

10G SFP+ BIDI 10KM LC

OS2 LC—LC Simplex patch cord

ESB32X-3LCD10

ESB23X-3LCD20

10G SFP+ BIDI 20KM LC

ESB32X-3LCD20

ESB23X-3LCD40

10G SFP+ BIDI 40KM LC

ESB32X-3LCD40

ESB23X-3LCD60

10G SFP+ BIDI 60KM LC

ESB32X-3LCD60

ESB23X-3LCD70

10G SFP+ BIDI 70KM LC

ESB32X-3LCD70

ESB45X-3LCD80

10G SFP+ BIDI 80KM LC

ESB54X-3LCD80

Application scenarios of 10G SFP+ single mode optical module:

Ø 10G fiber channel

Ø Fixed access network

Ø Data center

Ø Metropolitan area network

Ø Next generation mobile network, etc

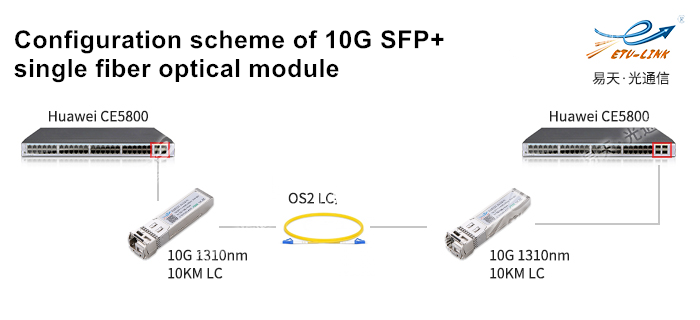

Configuration scheme of 10G SFP+ single fiber optical module:

The optical module long-distance data transmission scheme of 10Gigabit Ethernet generally uses switch with 10G SFP+ 10G optical module and OS2 single-mode fiber to form high bandwidth 10g transmission. As a professional optical module manufacturer, ETU-LINK can provide a full range of optical modules, high reliability and free OEM customized services. At present, it is widely used in man, data center and other fields. Thank you for your support!
