Juniper QFX3500 switch and optical module solution

  • December 05. 2019

With the increasing demand for network performance and high cost performance of optical modules, it is particularly important to design a cost-effective scheme for the switch and optical modules in the data center. Today ETU-Link will introduces the matching scheme of Juniper QFX3500 switch with optical module.

Juniper QFX3500 Switch introduction

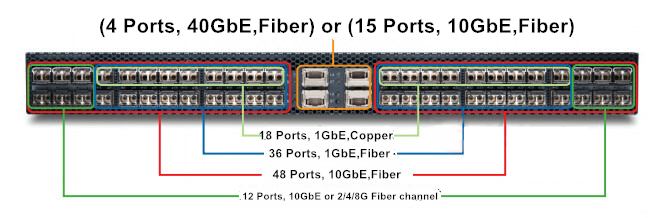

QFX3500 switch can provide 48 SFP+ ports and 4 QSFP+ ports. In the 48 SFP+ ports, 36 are available for 10GBE or 1GBE, and can have up to 18 1GBE copper ports. The remaining 12 ports can be used to support 2Gbps, 4Gbps, or 8Gbps fibre channel mode. Four QSFP++ high-speed ports can operate in 4x10Gbe mode, and can support 40Gbps fiber mode in the future.

Optical module solution of Juniper QFX3500 switch:

As mentioned above, QFX3500 switches can support 1GBE, 10GBE and 40GBE interfaces, so there are many optical module solutions.

QFX3500 switch and 40G QSFP+ optical module solution:

ETU-LINK

PN

Abbreviation

Wavelength

Distance

Connector

EQ854X-3MCD01

SR4

850nm

100m

MPO

EQ314X-3MCD10

LR4

1310nm

10km

MPO

EQxx4X-3LCD10

LR4

4*10

CWDM

10km

LC

EQxx4X-3LCD30

Lite ER4

CWDM

30km

LC

EQB854-3LCD01

SR4-BIDI

850nm

150m

LC

QFX3500 switch and SFP+ optical module solution:

ETU-LINK

PN

Abbreviation

Wavelength

Distance

Connector

ES85X-3LCD03

SR

850nm

300m

LC

ES31X-3LCD10

LR

1310nm

10-20km

LC

ES31X-3LCD40

ER

1310nm

40km

LC

ES55X-3LCD40

ER

1550nm

40km

LC

ES55X-3LCD80

ZR

1550nm

80km

LC

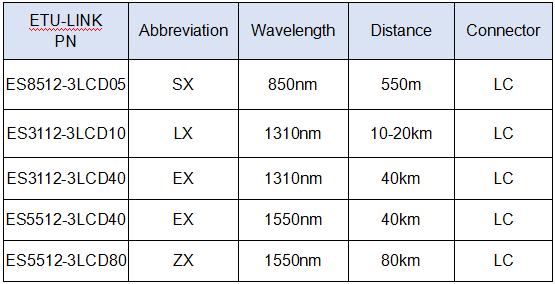

QFX3500 switch and SFP optical module solution:



Nowadays, with the rapid development of data center, the cabling scheme is developing in the direction of economy and efficiency, and the optical module is also developing in the direction of high cost performance. ETU-Link actively responds to the market, creating high-quality and strong compatibility optical module for customers, as well as building a more scalable and easier to adjust high-density network cabling system.
