Even if the data center is developing at a high speed, such as 100G or 200G, 10G / 40G optical modules are still popular, because there are many scenarios that only need 10G or 40G. In today's tough competition, people have higher and higher requirements on quality, so to adapt to the development of this phenomenon, we must improve the quality of products. For this reason, ETU-Link does this. Optical modules are strictly tested and verified to ensure the compatibility and performance of optical modules. Next, we will introduce Huawei S6720S-26Q-LI-24S-A switch and optical module matching solution.

Huawei S6720S-26Q-LI-24S-A switch belongs to 10 Gigabit Ethernet switch, with transmission rate of 100 / 1000 / 10000Mbps, 40000Mbps, 24 × 10GE SFP+ port and 2 × 40GE QSFP+ port. Therefore, 10G SFP+ optical module and 40G QSFP+ optical module are matched with it.

Huawei S6720S switch and 40G QSFP+ optical module matching solution:

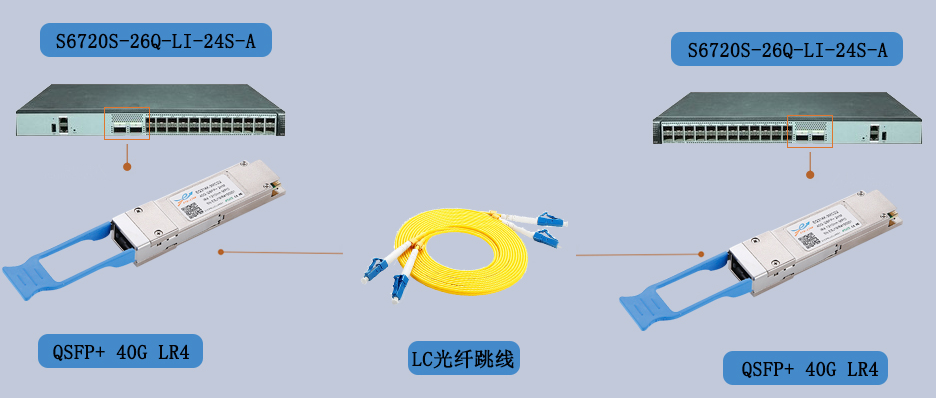

The 40G optical module can support hot plug with a maximum speed of 41.2Gb/s and a power consumption of less than 3.5W. It can support DDM digital diagnosis and monitoring function. It is used with Huawei S6720S-26Q-LI-24S-A switch 2 × 40GE QSFP+ port. In the figure below, QSFP-40G-LR4 optical module is used, and the transmission distance with LC optical fiber jumper can reach 10KM.

Huawei S6720S switch and 10G SFP+ optical module matching solution:

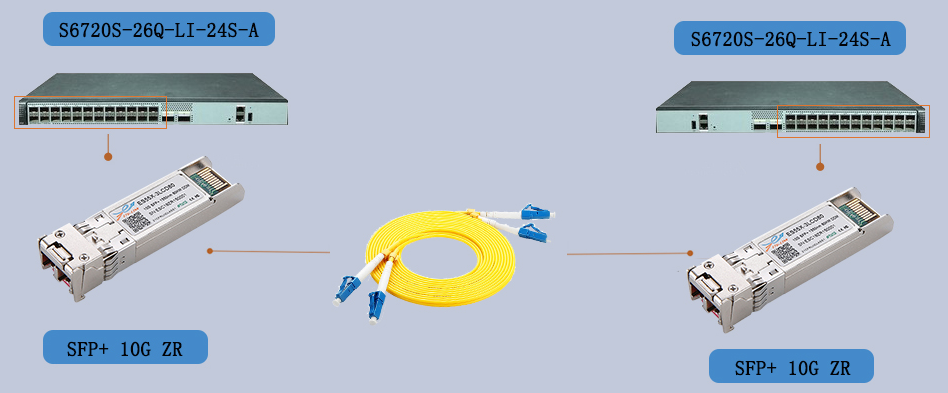

10G Optical module can support hot plug, and the maximum transmission distance can reach 80km, supporting DDM digital diagnosis and monitoring function. It is used with Huawei S6720S-26Q-LI-24S-A switch 24 × 10GE SFP + port. In the figure below, the use of the optical module of SFP-10G-ZR, with LC optical patch cord transmission distance of up to 80KM, is suitable for long-distance transmission applications.

The above is about the collocation solution of Huawei S6720S switch and ETU-Link’s module. We believe you all know it. Thank you for your support all the way!
