16G FC CWDM SFP+ series optical module introduction

  • May 06. 2021

16G FC CWDM SFP+ series optical modules are mainly used in FC (Fibre Channel) networks. Fibre Channel technology (Fibre Channel) is a network storage switching technology that can provide long-distance and high-bandwidth. It can be used in storage, server and client nodes. Realize the transmission of large data files between. ETU-LINK will focus on introducing the 16G FC CWDM SFP+ series optical modules.

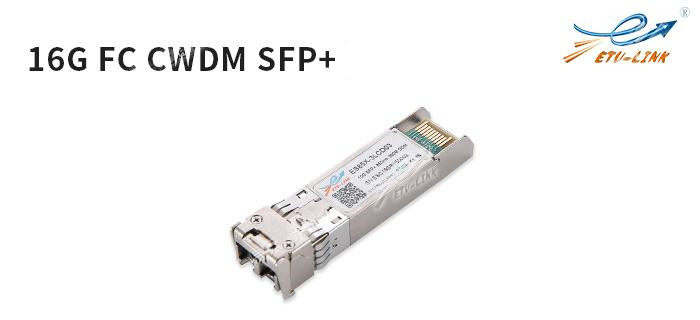

The 16G FC CWDM SFP+ series optical modules of ETU adopt hot-swappable SFP+ package, dual-fiber LC interface, support 10km, 40km transmission distance, of which the optional wavelength range of 16G FC CWDM SFP 10km is 1270nm-1610nm (interval 20nm), the optional wavelength range of 16G FC CWDM SFP 40km is 1470nm-1610nm (interval 20nm).



PN

Data Rate

Package

Wavelength nm

Distance

Fiber type

Connector

ESCxxX6-3LCD10

14.025G

SFP+

1270-1610

10km

Single mode

Duplex LC

ESCxxX6-3LCD40

14.025G

SFP+

1470-1610

40km

Single mode

Duplex LC

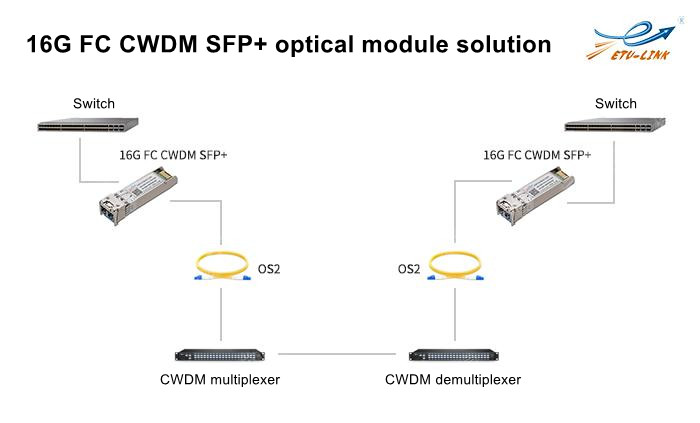

16G FC CWDM SFP+ 10km equipped with DML laser and PIN photodetector, the maximum transmission rate is up to 14.025G, the maximum power consumption is less than 1.2W, the maximum transmission distance through single-mode OS2 patch cord is up to 10 kilometers, and the operating temperature supports commercial grade (0 ℃-70℃) and industrial grade (-40℃-85℃), can compatible with 16G/4G/8G fiber channel.



16G FC CWDM SFP+ 40km equipped with EML laser and APD photodetector, the maximum transmission rate is up to 14.025G, the maximum power consumption is less than 1.8W, the maximum transmission distance through single-mode OS2 patch cord is up to 40 kilometers, and the operating temperature supports commercial grade (0 ℃-70℃) and industrial grade (-40℃-85℃), can compatible with 16G/4G/8G fiber channel.





The 16G FC CWDM SFP+ series optical modules provided by ETU-LINK can not only adapt to low-rate FC networks, but also smoothly upgrade to higher-performance networks. It is an ideal optical module solution for storage area networks.
