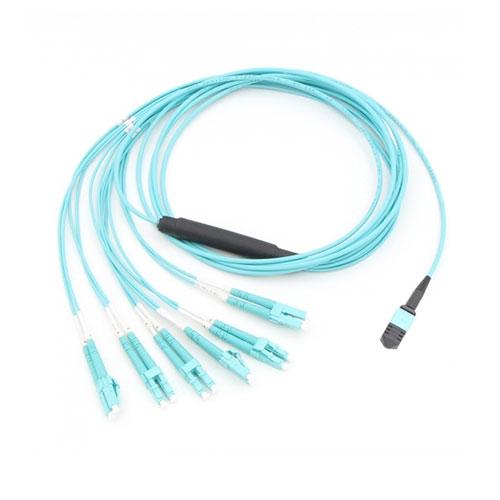

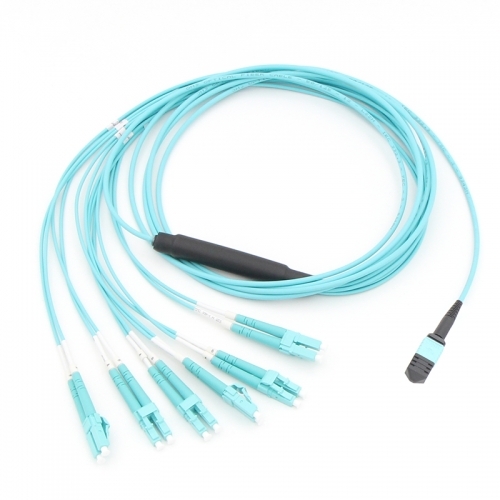

12 Fiber MPO-6LC Duplex OM3 Multi-mode Fiber Optic Harness Fan-out/Breakout Cable

Connector:
MPO-LC
Fiber Type:
MM
Product Origin:
Made in China
Shipping Port:
ShenZhen
Lead Time：
Pls contact sales for confirmation

Product Detail

Item Specifications:

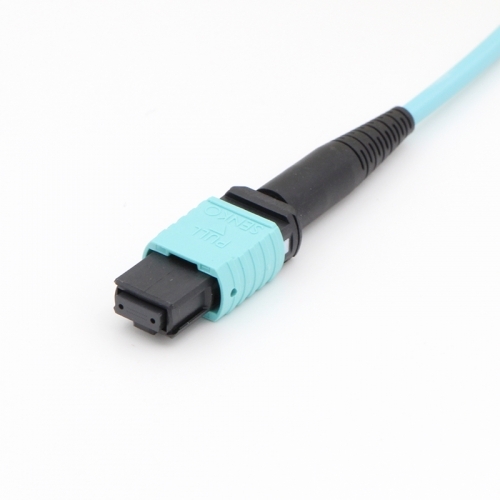

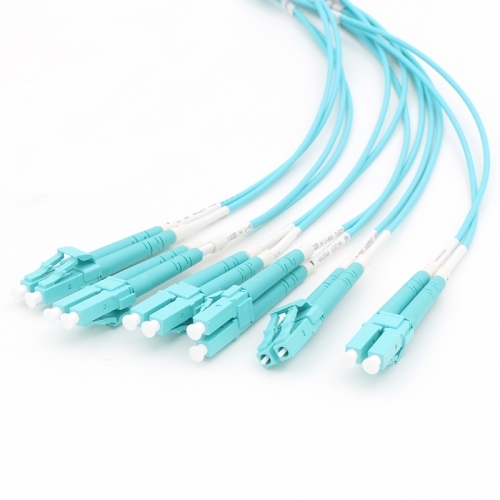

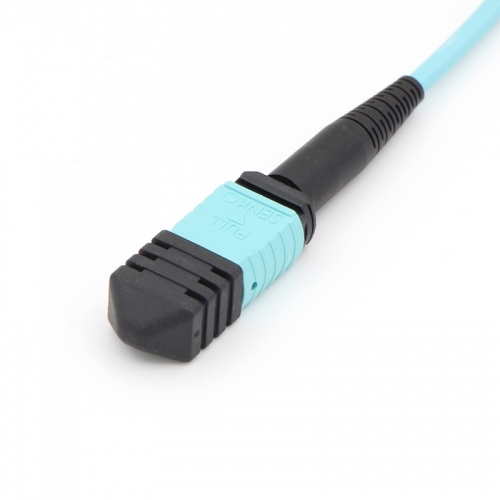

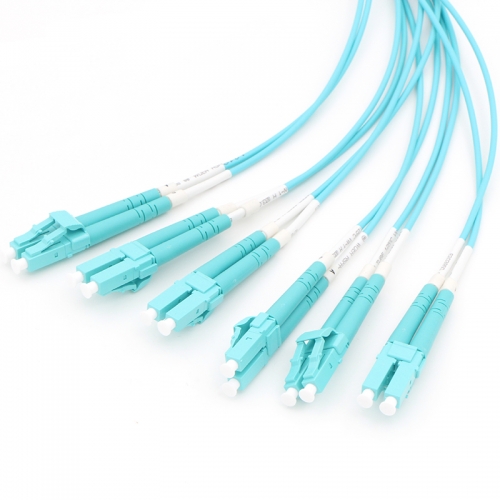

Connector A	MPO (Female)	Connector B	LC UPC (6)
Fiber Mode	50/125μm OM3	Cable Diameter	3.0mm
Fiber Count	12	Wavelength	850nm
Breakout Length	0.5m...	Fiber Type	Duplex
Cable Jacket	PVC/LSZH	Insertion Loss	<=0.6dB
Jacket Color	Aqua	Return Loss	MTP>=20 dB, LC>=30dB
Operate Temperature	-40~75°C	Durability	>=500 times

Features:
Ø A single MPO connector on one end that breaks out into 4LC connectors
Ø Designed to save front panel space and streamline fiber management
Ø Support use in attaching directly to 40G transceivers
Ø Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

Applications:
Ø Data Centers with High Density Requirement
Ø Fiber Channel Storage
Ø Parallel Processing Applications
Ø Telecommunications and Backbone Installations

Fiber Optic Patch Cables

Rollball offers high quality fiber cable assemblies such as Patch Cords, Pigtails, Breakout Cables etc. All of our fiber cables can be ordered as Single Mode 9/125, Multimode 62.5/125 OM1, Multimode 50/125 OM2 and Multimode 10 Gig 50/125 OM3/OM4 fibers.
Rollball also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc. Please feel free to contact sales@etulinktechnology.com.

How to choose correctly the cable jacket: PVC, LSZH or OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
Ø PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
Ø LSZH cable has a special flam-retardant coating, it is between floors in a building.
Ø OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.

How to Choose The Right Fiber Optic Cable Type on OM3 or OM4?

The difference of OM4 and OM3 fiber mode as the following
Ø OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
Ø The effective modal bandwidth for OM4 is more than double that of OM3.
