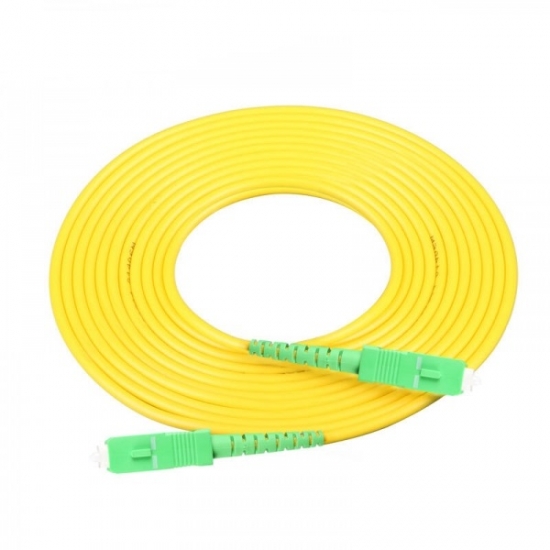

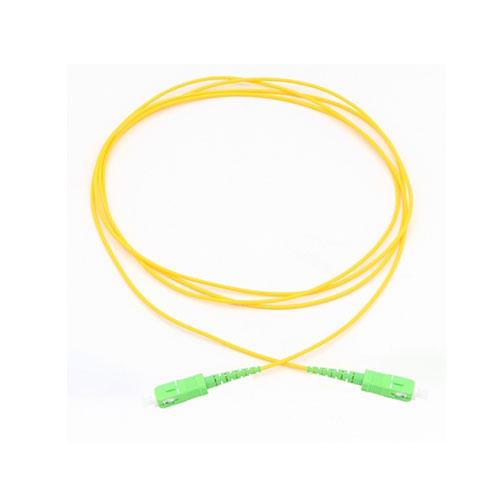

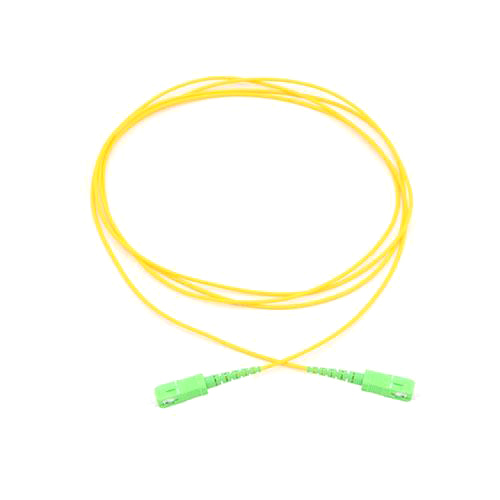

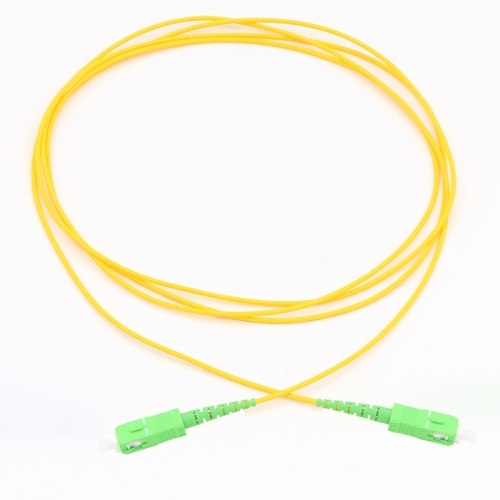

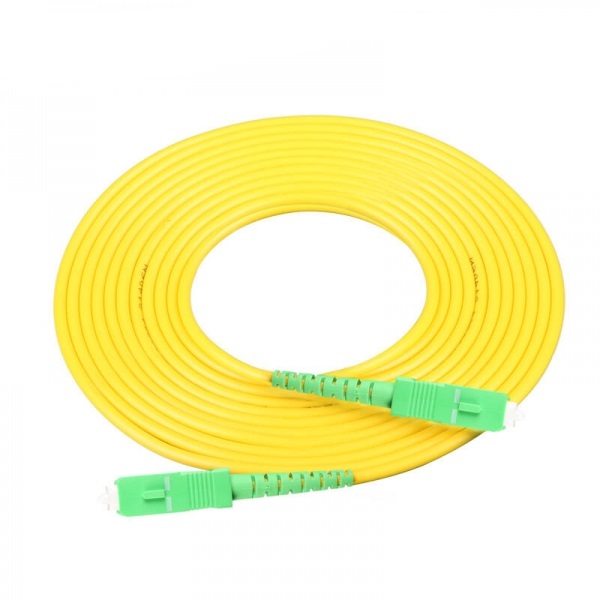

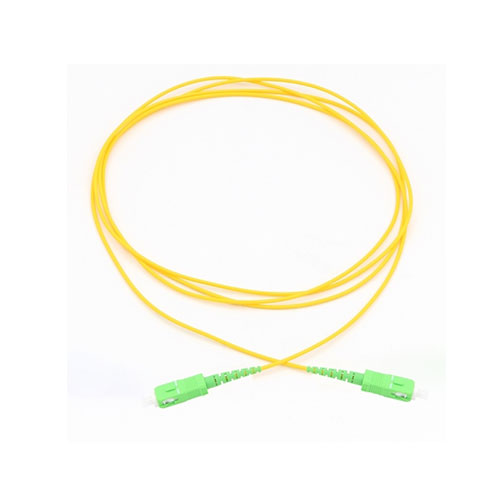

SC/APC-SC/APC SM SX OS2 9/125um PATCH CORD

Connector:
SC/APC-SC/APC
Fiber Type:
SM
Product Origin:
Made in China
Shipping Port:
ShenZhen
Lead Time：
Pls contact sales for confirmation

Product Detail

SC/APC-SC/APC Simplex OS2 9/125 SMF Fiber Patch Cable

Item Specifications:

Connector	SC to SC	Polish	APC to APC
Fiber Mode	OS2 9/125μm SM	Jacket OD	2.0mm
Fiber type	Simplex	Wavelength	1310/1550nm
Cable Length	1m	Jacket Color	Yellow
Cable Jacket	PVC	Repeatability	<=0.1dB
Insertion Loss	<=0.3dB	Durability	<=0.2dB(1000 Times mating)
Return Loss	>=50dB	Operate Temperature	-40~75°C

Features:

Ø Low insertion loss and back reflection loss
Ø Good Durability
Ø Good exchangeability
Ø High temperature stability

Ø Standard: Telcordia GR-326-CORE

Ø compact design

Ø IEC,JIS,TELCORDIA-326 compliance

Applications:
Ø CATV / Metro
Ø Active device termination
Ø Telecommunication networks
Ø Local Area Networks (LANs)
Ø Data processing networks
Ø Test equipment
Ø Premise installations

Ø Wide Area Networks (WANs)

Specifications:
Ø Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Ø Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Ø Repeatability: ≦0.1
Ø Durability ≦0.2dB typical change, 1000 matings
Ø Interchangeability: ≦0.2dB
Ø Tensile Strength : >10kg

Ø Operating Temperature: -40 ~ 75℃

Description
Ø The 9/125um single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

Ø ETU supply various kinds of Single Mode and Multimode Fiber Optic Loopback Cables, which are with different connectors including ST, SC, FC, LC, MU, MTRJ etc. Each cable is functionally tested before shipping and is covered by a lifetime warranty.

How to choose correctly the cable jacket: PVC, LSZH or OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
Ø PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
Ø LSZH cable has a special flam-retardant coating, it is between floors in a building.
Ø OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.

How to Choose The Right Fiber Optic Cable Type on OM3 or OM4?

The difference of OM4 and OM3 fiber mode as the following
Ø OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
Ø The effective modal bandwidth for OM4 is more than double that of OM3.

Ø For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Fiber Optic Patch Cables:

ETU offers high quality fiber cable assemblies such as Patch Cords, Pigtails, Breakout Cables etc. All of our fiber cables can be ordered as Single Mode 9/125, Multimode 62.5/125 OM1, Multimode 50/125 OM2 and Multimode 10 Gig 50/125 OM3/OM4 fibers.

ETU also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc. Please feel free to contact sales@etulinktechnology.com.

Patch cord Order Information:

Patch cord Order Information
Connector-1	Polishing	Connector-2	Polishing	Cable Type	Length	Cable Diameter	Fiber Count	Remark
SC	APC	LC	PC	OS2	5M	2.0MM	Duplex	LSZH
FC,SC	PC,UPC	FC,SC	PC,UPC	OM1 62.5/125	0.5M	0.9MM	Simplex	Colors
LC,ST	APC	LC,ST	APC	OM2 50/125	1M,2M	1.8MM	Duplex	Armored
MU,MTRJ		MU,MTRJ		OM3 10G	3M,4M	2.0MM	4,6,8 counts	Waterproof
E2000,MPO		E2000,MPO		OS1	5M,10M	3.0MM	12counts...	LSZH
SMA,DIN		SMA,DIN		OS2 9/125	100M...	Others	48Counts...	PVC
				G657A/B/D	500M...			OFNR
				G655	1000M...			OFNP
