X2 to 10G SFP+ optical module connection solution

  • June 17. 2019

This article gives you two main points, about the X2 to 10G SFP+ optical module connection solution and the X2 module and SFP+ module direct connection solution. Now let's take a look at the following solution with ETU-Link:

The X2 to 10G SFP+ optical module connection solution

Required equipment:

X2 optical module

②X2 to SFP+ converter

③10G SFP+ optical module

patch cord

Solution 1

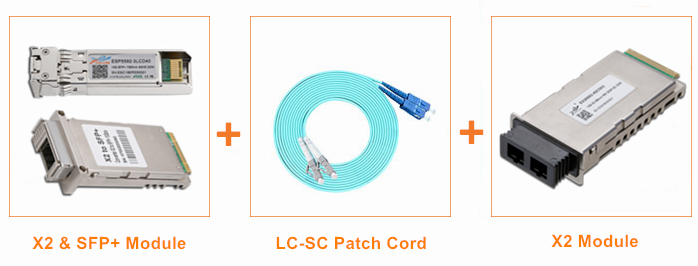

One end uses an X2 optical module, and the other end uses an X2 to SFP+ converter and the 10G SFP+ optical module combination, and SC-LC patch cord are used connecting between the two ends.

Solution 2

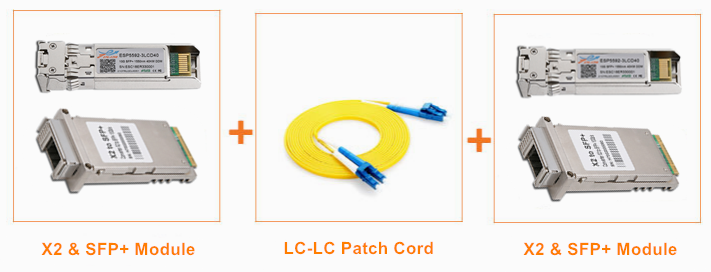

Both of the end uses X2 to SFP+ converter and 10G SFP+ optical module, and LC-LC patch cord are used connecting between the two ends.

According to the market feedback, the solution 2 will be more extensive, the main reason is that the cost of solution 1 is much higher than solution 2 in long-distance transmission projects.

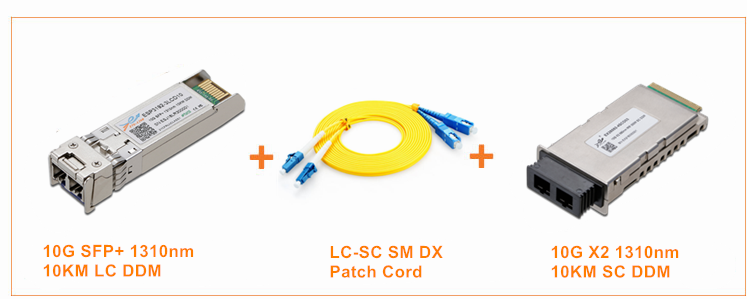

The X2 module and SFP+ module direct connection solution

If X2 and SFP+ modules are single-mode, single-mode patch cord is required.

If they are multimode, it use multimode patch cord.

The prerequisite is to use the optical module with the same transmission wavelength and distance.

About X2 and SFP+ module solutions, if you have any questions, please visit ETU-Link website (etulink.com) ! The hotline is 0755-23284603.

ETU-Link can provide cost-effective optical module solutions for free, if you need to know more, please pay attention!
