What are the DDM, DOM, and RGD function of the optical module?

  • October 12. 2017
If you are the first time to buy optical transceivers, you might be confused with "DDM", "DOM" or "RGD". What are they? Today, ETU-Link will describe in detail the functions of these three types of optical modules.

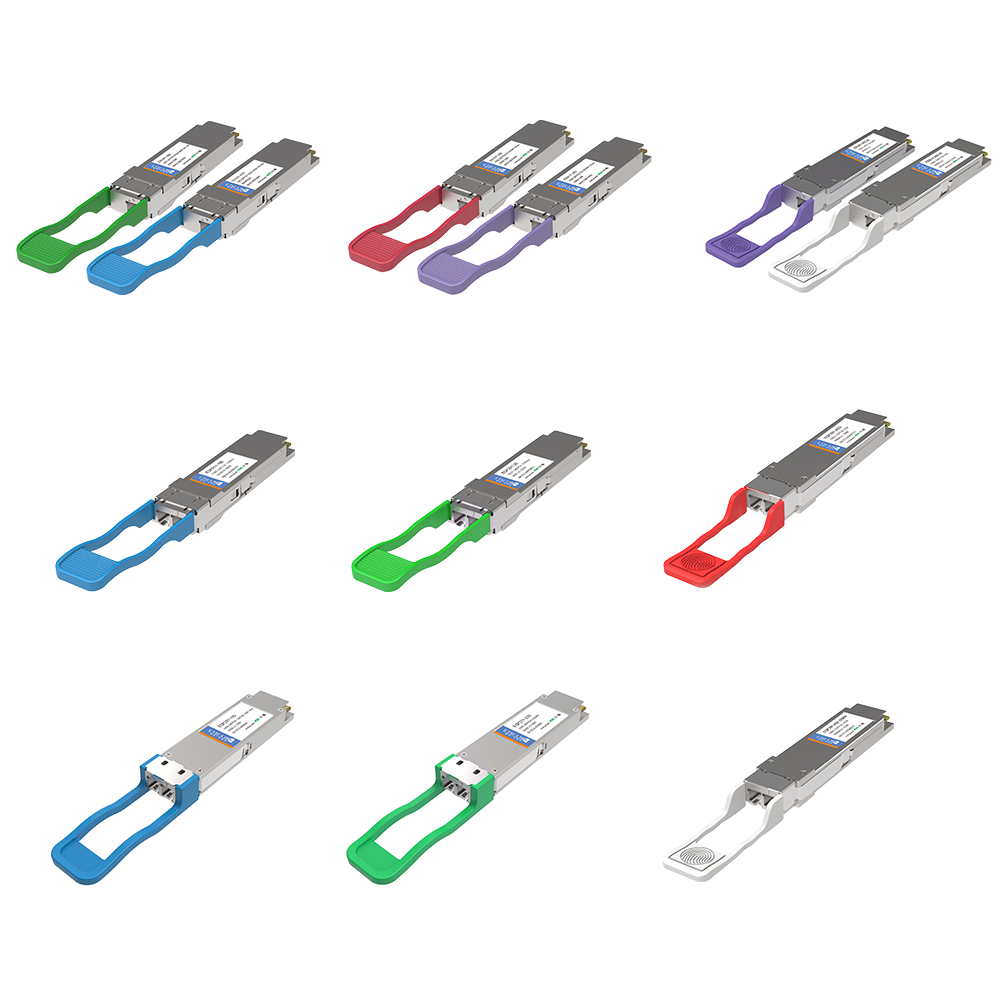

optical transceivers

What is DDM?
DDM means Digital Diagnostic Monitoring. It is the technique used in the optical module so that users can monitor the real-time parameters of the module. Including modules’ working temperature, working voltage, working current, TX and RX Power etc, can also show the factory information of the optical transceiver, prompt warning/alarm.
The DDM function of the module can provide a performance monitoring tool for the system, can help the system manage and predict the life of the module, isolate the fault system and verify the compatibility of the module in installation.

What is DOM?
DOM means Digital Optical Monitoring. Its function is similar to DDM, allows you to monitor all aspects data of optical module in real time. Such as modules’ transmit and receive, input and output power, temperature and voltage. The network administrator checks these data to make sure that the optical module is working properly.
Obviously, optical modules with DDM/DOM function are better than optical modules without these functions, therefore, most optical modules conform to the SFF-8472 standard and can support DDM/DOM function.

What is RGD?
RGD means rugged optical modules, so the optical module with RGD function is an enhanced module. This optical module is more durable and can be used in very harsh conditions. The rugged optical module has enhanced ESD protection and a greater range of operating temperatures. Thus, field failures can be eliminated, not need expensive external protection devices.

Recommended optical module with DDM

Product Model

Product Description

ES8512-3LCD05

1.25G SFP 850nm 550M LC DDM

ES3112-3LCD20

1.25G SFP 1310nm 20KM LC DDM

ES3112-3LCD40

1.25G SFP 1310nm 40KM LC DDM

ES5512-3LCD80

1.25G SFP 1550nm 80KM LC DDM

ESP8592-3LCD03

10G SFP+ 850nm 300M LC DDM

ESP3192-3LCD10

10G SFP+ 1310nm 10KM LC DDM

ESP3192-3LCD40

10G SFP+ 1310nm 40KM LC DDM

ESP5592-3LCD80

10G SFP+ 1550nm 80KM LC DDM

The optical modules listed above are available by ETU. In addition, we also supply other modules compatible with HUAWEI, H3C and other major brands, varieties of models and styles for you to choose. More SFP optical modules tutorials and solutions, welcome to visit our website:
www.etulinktechnology.com.
