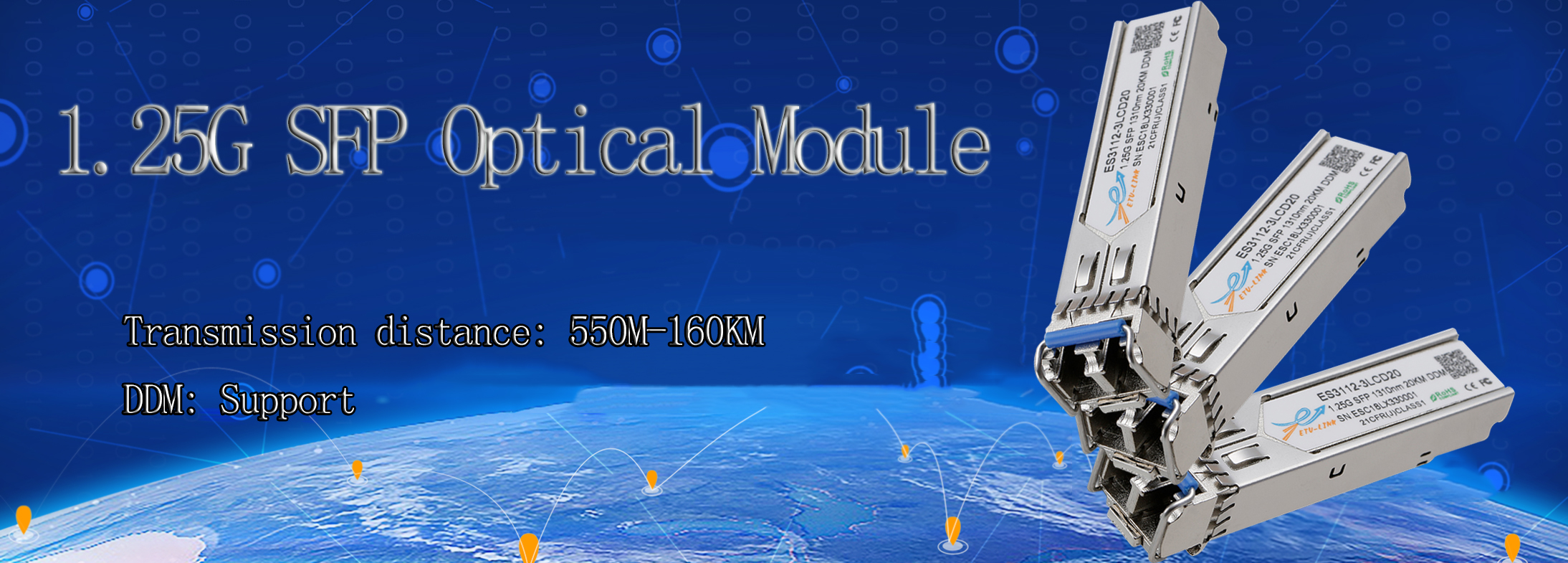

Types and Characteristics of Common Gigabit SFP Optical Modules

  • October 09. 2019

Nowadays, with the prevalence of 5G, optical modules are also developing rapidly, ranging from 155m, 1.25G, 8G, 10G, 25G, 40G to 100G. The higher the speed, the higher the price of the optical module, if only applied to Gigabit ethernet, there is no need to buy a higher rate. SFP optical module is widely used in Ethernet because of its small size, low cost and high density. So what are the types of common Gigabit SFP optical modules?

Four common Gigabit SFP dual-fiber modules:

In order to better distinguish 1.25G SX, 1.25G LX, 1.25G EX and 1.25G ZX optical modules, the comparison tables of these optical modules are listed in the following table.

Module Type

Package

Wavelength

Distance

Connector

DDM

1.25G SX

SFP

850nm

550m

LC

Support

1.25G LX

SFP

1310nm

10-20km

LC

Support

1.25G EX

SFP

1310nm

1550nm

40km

LC

Support

1.25G ZX

SFP

1550nm

80km

LC

Support

Features:

Ø Compliance with IEEE802.3Z protocol

Ø Dual Fiber LC Connector

Ø Eye protection design meets laser class 1

Ø Compliance with IEC60825-1

Ø 3.3V working voltage

Ø Hot plug-in support

Ø Compliance with SFF-8472 protocol

Ø Commercial temperature: 0°C ~ 70°C

Ø Industrial temperature: -40°C ~ 85°C

Common Gigabit SFP Single Fiber Series Optical Modules:

ETU-LINK PN

Fiber Type

Wavelength

Distance

ESB3512-3LCD20

Single mode single fiber

TX1310/

RX1550nm

20KM

ESB3512-3LCD40

Single mode single fiber

TX1310/

RX1550nm

40KM

ESB4512-3LCD60

Single mode single fiber

TX1490/

RX1550nm

60KM

ESB4512-3LCD80

Single mode single fiber

TX1490/

RX1550nm

80KM

ESB4512-3LCD120

Single mode single fiber

TX1490/

RX1550nm

120KM

ESB4512-3LCD160

Single mode single fiber

TX1490/

RX1550nm

160KM


Features:

Ø Multi-rate 1.25Gbps/1.063Gbps

Ø Compliance with SFP MSA and SFF-8472

Ø DDM

Ø Single Fiber LC Connector

Ø Compliance with ROHS certification

Ø 3.3V working voltage

Ø Commercial temperature: 0°C ~ 70°C

Ø Industrial temperature: -40°C ~ 85°C

Our products are widely used in data center, base station, MAN, LAN, storage network, optical fiber channel, optical fiber to home and wireless network and other fields. ETU-Link provides 155M-100G optical module, which can meet the application needs of customers in different scenarios.
