The Training of Products

  • April 12. 2016

Our sales manager organized a product training courses again today. We also learned a lot of knowledge,share some of the key summary as follows:


1.The application of optical modules and passive products are Ethernet,ATM,SONET,SDH,Data center and Fast Ethernet.


2. Abbreviations for popular products :
 SX represents 1.25G SFP 850nm LC 550m
 LX represents 1.25G SFP 1310nm LC 10km/20km
 EX represents 1.25G SFP 1550nm LC 40km
 ZX represents 1.25G SFP 1550nm LC 80km
 SR represents 10G SFP+ 850nm LC 300m
 LR represents 10G SFP+ 1310nm LC 10km/20km
 ER represents 10G SFP+ 1550nm LC 40km

 ZR represents 10G SFP+ 1550nm LC 80km


3. DDM is digital diagnostic monitoring, its role is to monitor the voltage, current, temperature and displays the factory information. If a module does not have DDM function, once the products have problems, it will not be prompted Warning.

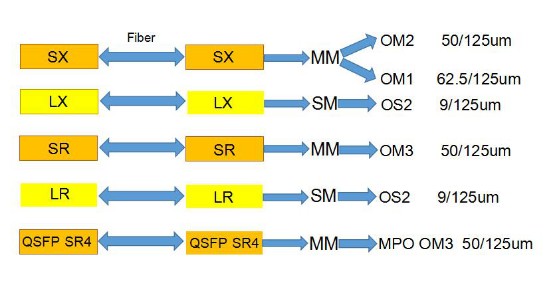

4.Fiber types are divided into single-mode fiber and multimode fiber. The core diameter of single-mode fiber is 9 / 125um and the core diameter of multimode fiber is 50 / 125um and 62.5 / 125um. The fiber types also have OM162.5/125um)、OM250/125um)、OM350/125um and OM450/125um).

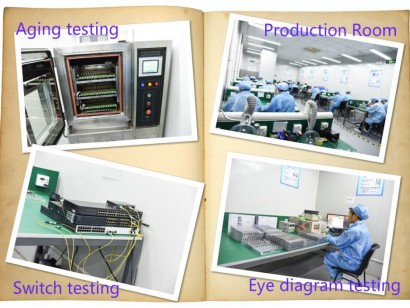

5. The way our QC control the Quality

a.Material testing  for Tosa and Rosa (Bosa), it can be reduce reject rate.

b.Product parameter testing: Output power , sensitivity, extinction ratio and eye diagram, the excellent parameter make the products working more steady.

c. The distance testing: the engineer will testing them by 20km bare optical fiber, the customer no worried about loss pocket.
d.Switch testing: Insert the module to the switch to check if work normally and audit the eeprom information.

e.Aging testing: install the module to the aging board , then working on it about 24 hours.This function is that found the failure product in advance before shipment and decreasing reject rate .


We always try our best to do the product well to make our customers fully satisfied. We believe that we will be your good partner of choice.
