The digital age means that network speed, energy efficiency and cost are the focus of data centers and communication networks. In order to meet these needs, new products are constantly being created and evolved, so in this context, the latest solution of 400G OSFP SR8 optical module has become a good help. This solution not only improves network speed, but also saves energy and reduces consumption, while keeping costs low. Here is a small series to understand the star product of ETU-LINK - 400G OSFP SR8 optical module.

I.400G OSFP SR8 product information and working principle

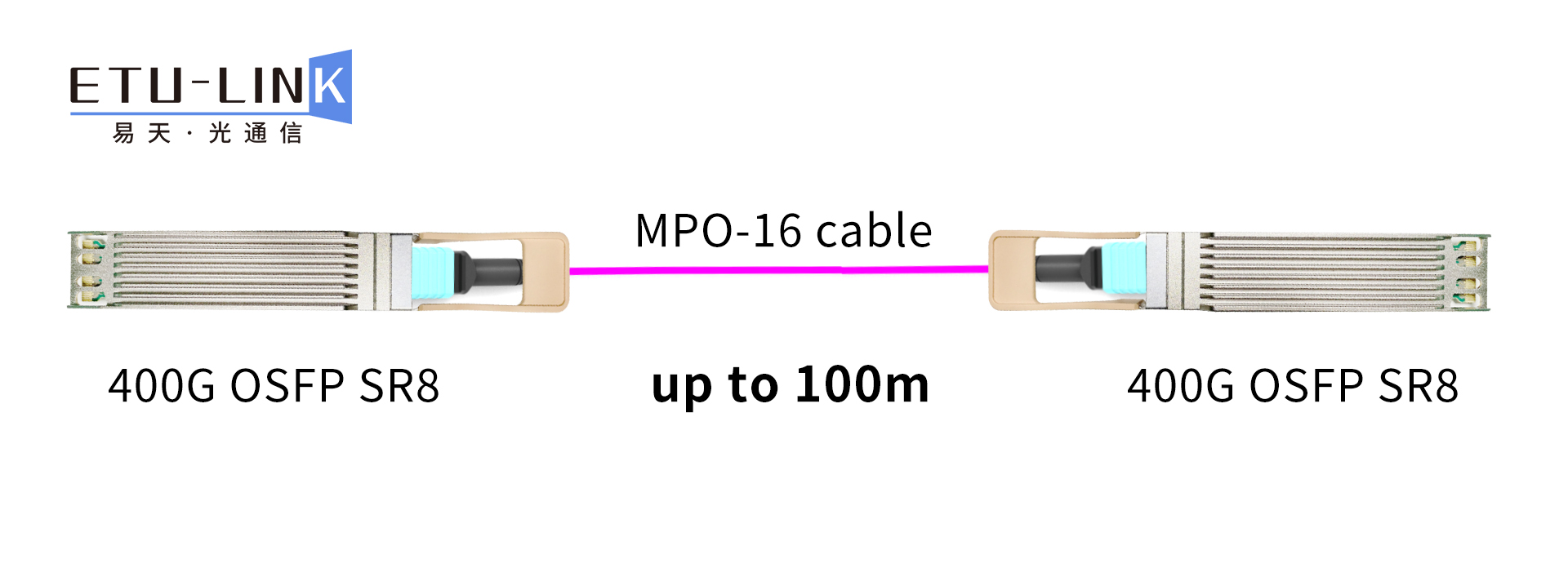

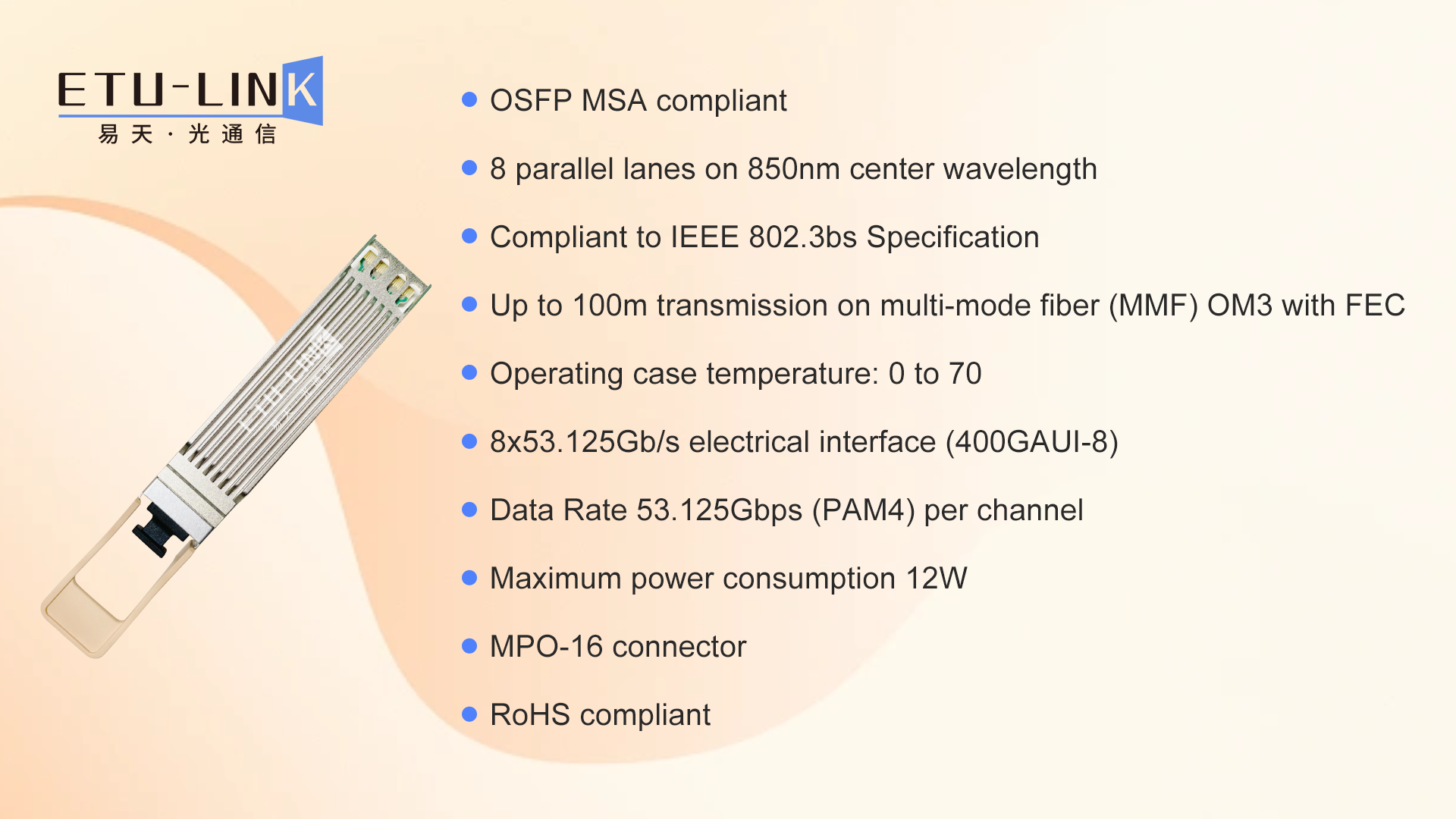

The 400G OSFP SR8 is a parallel 400Gb/s compact pluggable (OSFP) optical module. It provides a higher port density and cost saving system. The OSFP full-duplex optical module provides eight independent transmit and receive channels with a central wavelength of 850nm, each capable of transmitting at a rate of 53.125Gb/s over 100 meters of OM3 multimode fiber for a total data rate of 400Gb/s. Use fiber optic jumpers with MTP/MPO-16 connectors to connect the OSFP SR8 module.

Designed according to the OSFP Multi-source Protocol (MSA), the product has form factor, optical/electrical connection and digital diagnostic interface. The optical module is mainly used in short-distance data center interconnection and the connection between data centers, and has high communication efficiency and stability, and provides strong support for large-scale data transmission.

II. Technical advantages of 400G OSFP SR8 optical module

Advanced modulation technology: Advanced modulation technology is used inside the optical module, which can achieve higher data transmission rate in the limited spectrum and improve transmission efficiency.

Multi-mode optical fiber adaptation: The 400G OSFP SR8 optical module is compatible with various optical fiber types, including OM3 and OM4, and ADAPTS to the optical fiber requirements in different environments, providing a flexible solution.

Highly integrated: The module adopts advanced packaging technology, and integrates multiple functional units such as optical transmitter, receiver, and drive circuit inside to achieve a highly integrated design.

III. Application prospect of 400G OSFP SR8 optical module

Data center interconnection: As data centers continue to grow in size, so does the need for high bandwidth density. The 400G OSFP SR8 optical module can effectively meet the requirements of data center interconnection and provide an efficient and reliable connection solution.

Cloud computing: Cloud computing is one of the important trends in the current information technology field, and the high bandwidth density and stability of the 400G OSFP SR8 optical module make it an ideal choice in cloud computing scenarios, providing reliable network support for cloud services.

This article ends here, ETU-LINK as a professional module manufacturer, the company's products cover: 1G-800G optical module, AOC&DAC cable and optical fiber patch cord, etc., widely used in Ethernet, FTTH, SDH/SONET, network storage and other fields, welcome to consult!
