The Application Of Optical Transceiver On HUAWEI Switch

The application of optical transceiver on HUAWEI switch

July 04. 2016

HUAWEI is the world's leading provider of telecommunications network solutions. HUAWEI's products and solutions have been applied in more than 170 countries , service for 45 of the world's top 50 operators and 1/3 of population all the world.

HUAWEI's main business scope is including transmission , wireless and data communications telecommunications products , provide network equipment , services and solutions to customers around the world in the field of telecommunications .

Today we will share the industry's first 25GE access TOR switches CE8860 of HUAWEI .

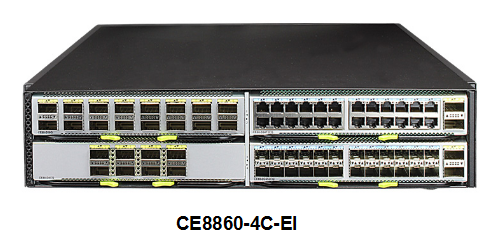

CloudEngine 8860（CE8860）series switch is a new high-performance , high-density , low-latency flexible card Ethernet switch .

CE8860 switches provide high-density 100GE/40GE/25GE/10GE ports , support rich data center characteristics and high-performance stacking . Help the enterprises and operators to build data center network platform . CE8860 switches are applied in the core or convergence of the data center , but also can be used for the core or convergence of the campus network .

CE8800 can build flexible , virtual and high-quality data center network combined with the HUAWEI CloudEngine series data center switch CE12800/CE7800/CE6800/CE5800 , meet the needs of Cloud computing era data center on the network .

Product features :
※ The industry's first 25GE access switch
※ High density 100GE/40G convergence , superior capacity
※ High reliability and long-distance stacking , excellent performance
※ Large scale routing bridge , expand according to the need
※ Converged enhanced Ethernet , unified bearer
※ Rapid migration of virtual machine , strategy accompanying
※ Programmable network devices , flexible customization
※ Virtualization hardware gateway , rapid deployment
※ Device zero-configuration deployment , automatic operation and maintenance
※ Strict front and rear air ducts , high efficiency and energy saving
※ Indicator light is perfect , operation and maintenance is simple

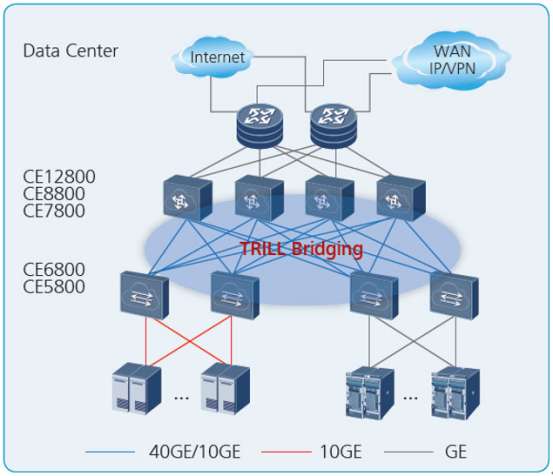

Typical applications in the data center :

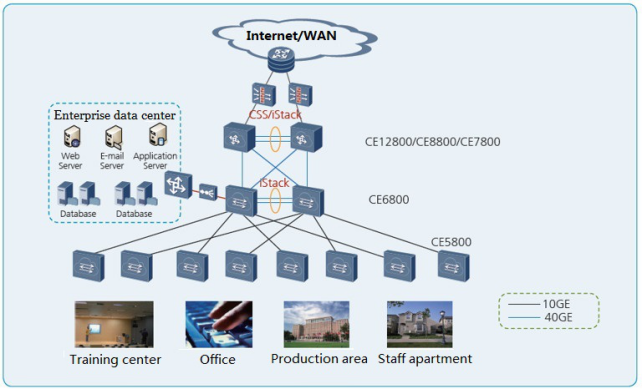

Typical applications in the campus network :

The corresponding model of HUWWEI and ETU-Link module:

Data Rate	HUAWEI module PN	ETU module PN	Description
1 55M SFP Modules	SFP-FE-SX-MM1310-A	ES3103-3LCD2	155M SFP MM 1310nm 2KM LC connector with DDM
	SFP-FE-LH40-SM1310	ES3103-3LCD40	155M SFP SM 1310nm 40KM LC connector with DDM
	SFP-FE-LH80-SM1550	ES5503-3LCD80	155M SFP SM 1550nm 80KM LC connector with DDM
1.25G SFP Modules	ESFP-GE-SX-MM850	ES8512-3LCD05	1.25G SFP MM 850nm 550M LC connector with DDM
	SFP-GE-LH40-SM1310	ES3112-3LCD40	1.25G SFP SM 1310nm 40KM LC connector with DDM
	SFP-GE-LH40-SM1550	ES5512-3LCD40	1.25G SFP SM 1550nm 40KM LC connector with DDM
10G XFP Modules	XFP-SX-MM850	EX8592-3LCD03	10G XFP SR MM 850nm 300M LC connector with DDM
	XFP-LX-SM1310	EX3192-3LCD10	10G XFP LX SM 1310nm 10KM LC connector with DDM
	XFP-LH40-SM1550-F1	EX5592-3LCD40	10G XFP ER SM 1550nm 40KM LC connector with DDM
