Optical module solution for HUAWEI S9700 series switch

  • February 02. 2018

HUAWEI S9700 series switch is a high-end smart T bit core routing switch. There are three types, S9703, S9706, and S9712, this series of switches have the advantages of high reliability, high flexibility, easy management and so on. And it can provide the simplest network management scheme for large parks and large data centers. In this article, we will focus on the optical module solution of the HUAWEI S9700 series switch.

The features of the HUAWEI S9700 series switch:

ü It supports the AC, and the common business board built in WLAN wireless controller function, which realizes the deep fusion of wired and wireless.

ü Innovative CSS exchange network cluster technology, overcome the structure problem that card cluster inter frame multiple exchange, exchange efficiency is not high;

ü It has SVF super virtual switching network, which simplifies the network architecture of "core / converging + access switch +AP";

ü It can reuse common business ports to cluster ports, increase the flexibility of ports, and increase the distance of clusters greatly through optical fiber, breaking through the traditional restrictions;

ü S9700 can provide a stable detection mechanism for static routing, and support HSR technology, which can achieve end to end change protection and greatly enhance the network reliability.

The application of the HUAWEI S9700 series switch:

The HUAWEI S9700 series switches can meet the high density million megabyte data throughput capacity in large scale Parks.It can also help the data center to build a data center network with no blocking and high reliability. So the HUAWEI S9700 series switches are now widely used in large parks and large data centers.

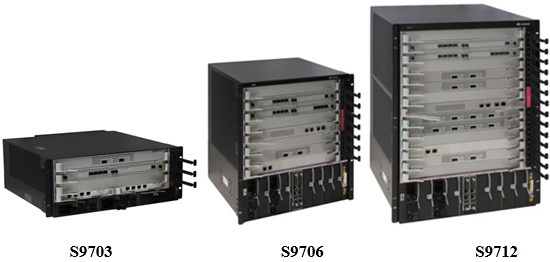

HUAWEI S9703 switch VS S9706 switch VS S9712 switch:

Switch model

S9703

S9706

S9712

Exchange Capacity

7.2Tbps/45.6T

17.92Tbps/81.6Tb

23.68Tbps/153.6Tbp

Packet Forwarding Rate

2160Mpps/1512

2880Mpps/25920Mp

3840Mpps/47520Mpps

Business Slot

3

6

12

Outline Dimension

mm

175*442*489

441.7*442*489

663.95*442*489

Weight

11kg

29kg

>37kg

Power Consumption

2200W

4400W

6600W

The optical module solution for HUAWEI S9700 series switch:

No.

HUAWEI PN

ETU PN

Description

1

eSFP-GE-SX-MM850

ES8512-3LCD05

1.25G SFP 850nm 550M DDM

2

SFP-GE-LX-SM1310

ES3112-3LCD10

1.25G SFP 1310nm 10KM DDM

3

S-SFP-GE-LH40-SM1550

ES5512-3LCD40

1.25G SFP 1550nm 40KM DDM

4

SFP-1000BaseT

ES-T1-RJ45

1000M SFP Copper-T RJ45 100m

5

SFP-GE-LX-SM1310-BIDI

ESB3412-3LCD10

1.25G SFP TX1310/RX1490nm 10KM DDM

6

SFP-GE-LX-SM1490-BIDI

ESB4312-3LCD10

1.25G SFP TX1490/RX1310nm 10KM DDM

7

XFP-SX-MM850

EX8592-3LCD03

10G XFP 850nm 300M DDM

8

XFP-STM64-SM1550-80km

EX5592-3LCD80

10G XFP 1550nm 80KM DDM

ETU-Link is a company dedicated to the development and design of optical communications products and provides a system solution. In the past few years, we have established a strong and professional product research and development, systematized solution and supply chain management team. Now our products and services have been highly appraised by our customers at home and abroad. In the future, ETU-Link will continue to create greater value for customers and the whole optical communications industry as before.
