Optical module solution for HP 5900 switch

  • June 06. 2020

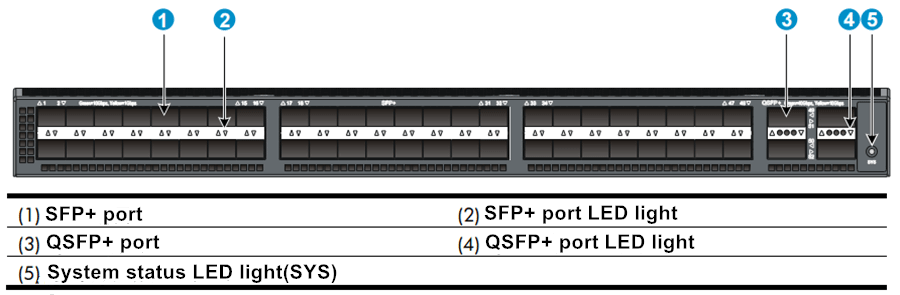

HP 5900AF JC772A switch, also known as HP 5900AF-48XG-4QSFP+ switch, has 48 1G / 10G SFP+ ports and 4 QSFP+ ports (as shown in the figure below), capable of supporting 40G uplink or 16 additional 10G ports. HP 5900AF JC772A switch is not only the ideal solution for server access layer of large enterprise data center, but also the core layer of medium enterprise data center.

Optical module for HP 5900AF JC772A switch:

ETU - LINK

PN

Package

Data Rate

Wavelength

Distance

Connector

ES-T1-R

SFP

1000M

/

100M

RJ45

ES8512-3LCD05

SFP

1.25G

850nm

550M

LC

ES3112-3LCD10

SFP

1.25G

1310nm

10KM

LC

ES3112-3LCD40

SFP

1.25G

1310nm

40KM

LC

ES5512-3LCD40

SFP

1.25G

1550nm

40KM

LC

ES5512-3LCD70

SFP

1.25G

1550nm

80KM

LC

ES85X-3LCD03

SFP+

10G

850nm

300M

LC

ES31X-3LCD02

SFP+

10G

1310nm

220M

LC

ES31X-3LCD10

SFP+

10G

1310nm

10KM

LC

ES55X-3LCD40

SFP+

10G

1550nm

40KM

LC

EQ854x-3MCD01

QSFP+

40G

850nm

100M

MPO

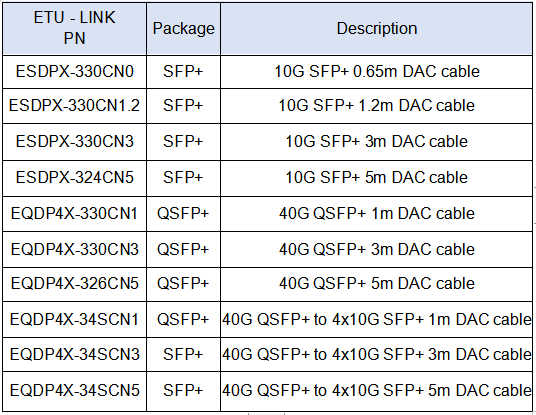

DAC cable HP 5900AF JC772A switch:

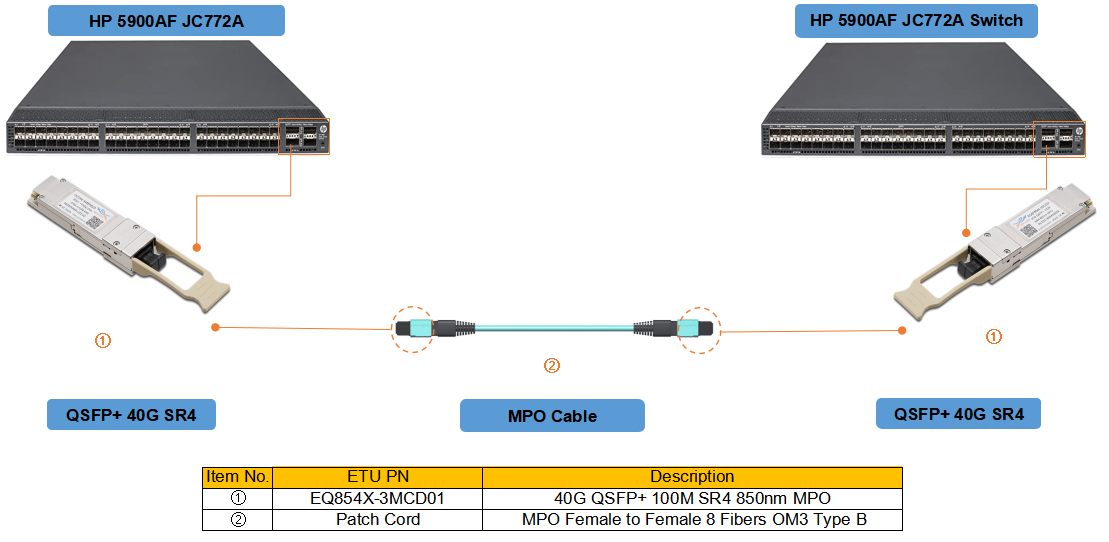

HP 5900AF JC772A switch optical module application:

Through our continuous efforts to win more market share and future development prospects, I hope our conscientious and conscientious can win more recognition and affirmation from customers!
