Optical module selection scheme of H3C S9820 series data center switch

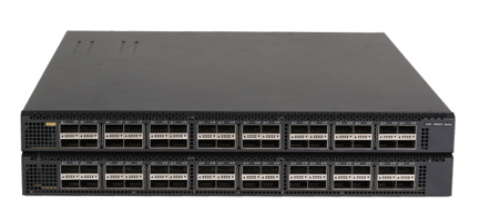

H3C S9820 switch supports high-density 100GE/40GE/25GE/10GE ports. It has strong forwarding capability and flexible sub card configuration. It can support 32 400GE ports or 100GE ports. It has high port density and strong forwarding ability. It can meet the networking requirements of high-density servers in high-end data center without convergence access. At the same time, all physical ports support routing mode Support independent configuration of IP address. Next, ETU-LINK will introduce the interconnection selection scheme of H3C S9820 series switch.
100G/40G optical module matching information
|
ETU-LINK PN |
H3C PN |
Package |
Wavelength（nm） |
Distance |
Connector |
Patch cord |
|
EQ28510X-3MCD01 |
QSFP-100G-SR4-MM850 |
QSFP28 |
850 |
100m |
MPO |
OM3 |
|
EQ2xx10X-3LCD10 |
QSFP-100G-LR4-WDM1300 |
QSFP28 |
1295 1300 1304 1309 |
10km |
LC |
OS2 |
|
EQ854X-3MCD01 |
QSFP-40G-SR4-MM850 |
QSFP+ |
850 |
100m |
MPO |
OM3 |
|
EQ314X-3LCD10 |
QSFP-40G-LR4-PSM1310 |
QSFP+ |
1310 |
10km |
LC |
OS2 |
100G/40G AOC matching information
|
ETU PN |
H3C PN |
Description |
Connector |
Length |
|
EQ2A10X-33CDxx |
QSFP-100G-D-AOC |
100G QSFP28 to 100G QSFP28 AOC cable |
QSFP28 to QSFP28 |
<70m |
|
EQ2A10X-34S23CDxx |
QSFP-100G-4SFP-25G-AOC |
100G QSFP28 to 4X 25G SFP28 AOC cable |
QSFP28to SFP28 |
<70m |
|
EQA4X-33CDxx |
QSFP-40G-D-AOC |
40G QSFP+ to 40G QSFP+ AOC cable |
QSFP+ to QSFP+ |
<70m |
|
EQA4X-34S3CDxx |
QSFP-40G-4SFP-10G-AOC |
40G QSFP+ to 4X 10G SFP+ AOC cable |
QSFP+ to SFP+ |
<70m |
100G/40G DAC matching information
|
ETU PN |
H3C PN |
Description |
Connector |
Length |
|
EQ2DP10X-32Q2CNxx |
QSFP-100G-D-CAB |
100G QSFP28 to 100G QSFP28 Direct attach cable |
QSFP28 |
<5m |
|
EQ2DP10X-34S2CNxx |
QSFP-100G-4SFP-25G-CAB |
100G QSFP28 to 4X 25G SFP28 Direct attach cable |
QSFP28 SFP28 |
<5m |
|
EQDP4X-330CNxx |
LSWM1QSTK2 |
40G QSFP+ to 40G QSFP+ Direct attach cable |
QSFP+ to QSFP+ |
<5m |
|
EQDP4X-34SCNxx |
LSWM1QSTK5 |
40G QSFP+ to 4X 10G SFP+ Direct attach cable |
QSFP+ to SFP+ |
<5m |

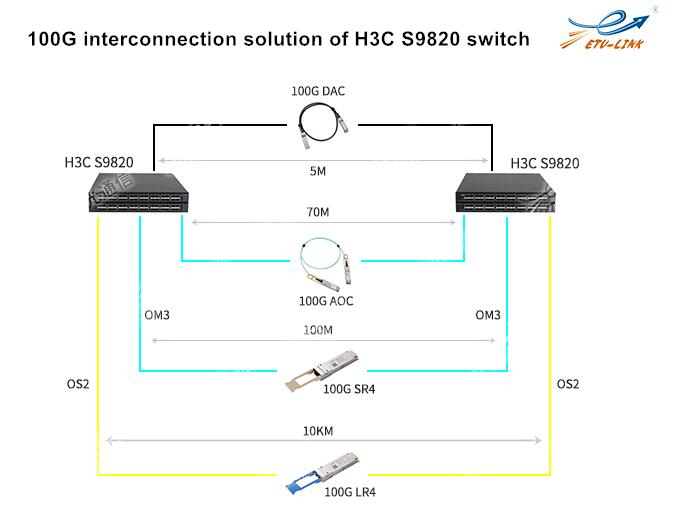

The above is the optical module solution of H3C S9820 series switch provided by ETU-LINK. The S9820 switch supports high-density 400GE/100GE/40GE ports. In the three-tier architecture of the data center, it can be used as a convergence device to access the TOR switch. The uplink is connected to S12500 through the 400GE/100GE link, providing 25G/10G server access, so as to build a highly reliable and highly redundant super large scale data center network.
