Optical interconnection solutions for 10G SFP+ and 40G QSFP+ optical modules in data centers

  • October 28. 2021

The optical module is an important component of the optical fiber communication system, which is used to realize the transmission and reception of optical signals. The speed of the optical module used in the data center ranges from 1G before 2010 to the commonly used 10G and 40G now.


Since most of the equipment distance in medium and large data centers is within 500 meters, the interconnection between equipment generally uses multi-mode fiber (OM3, OM4), the light source of the multi-mode optical module uses VCSEL laser as the emitting light source, and PIN as the optical receiver.


At present, the optical interconnection between the server and the access switch in the access layer mainly adopts 10G SFP+ optical modules, and the switch interconnection between the access layer and the aggregation layer/core layer mainly adopts 40G QSFP+ optical modules.

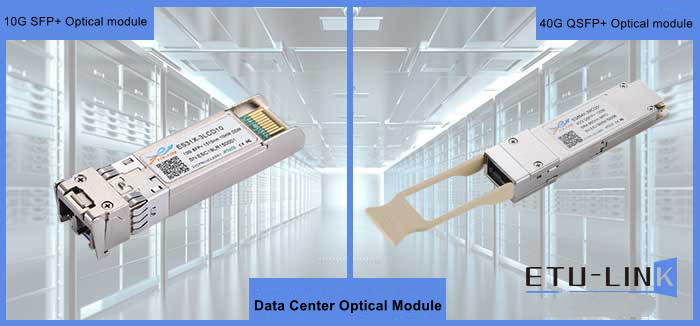

Next, ETU-LINK will introduce several common 10G SFP+ optical modules and 40G QSFP+ optical modules in data centers.


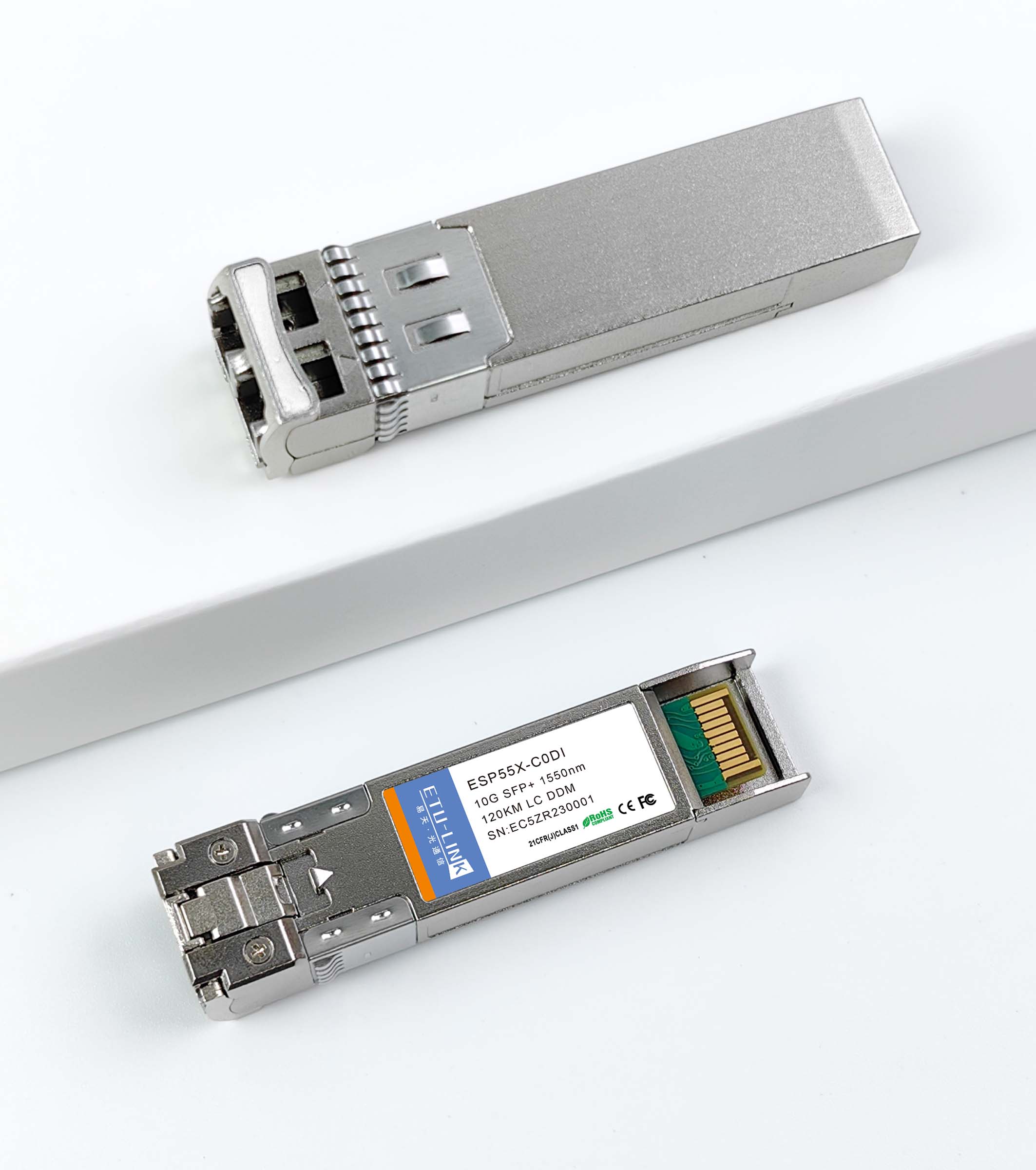

1、10G SFP+ dual fiber optical module

ETU Model

Package

Rate

Wavelength(nm)

Interface

Transmission distance

Fiber type

ES85X-3LCD03

SFP+

10.3G

850

DX LC

300M

MM

ES31X-3LCD2

SFP+

10.3G

1310

DX LC

10KM

SM

ESB23X-3LCD20

ESB32X-3LCD20

SFP+

10.3G

1270

1330

DX LC

20KM

SM

ESB23X-3LCD40

ESB32X-3LCD40

SFP+

10.3G

1270

1330

LC

40KM

SM

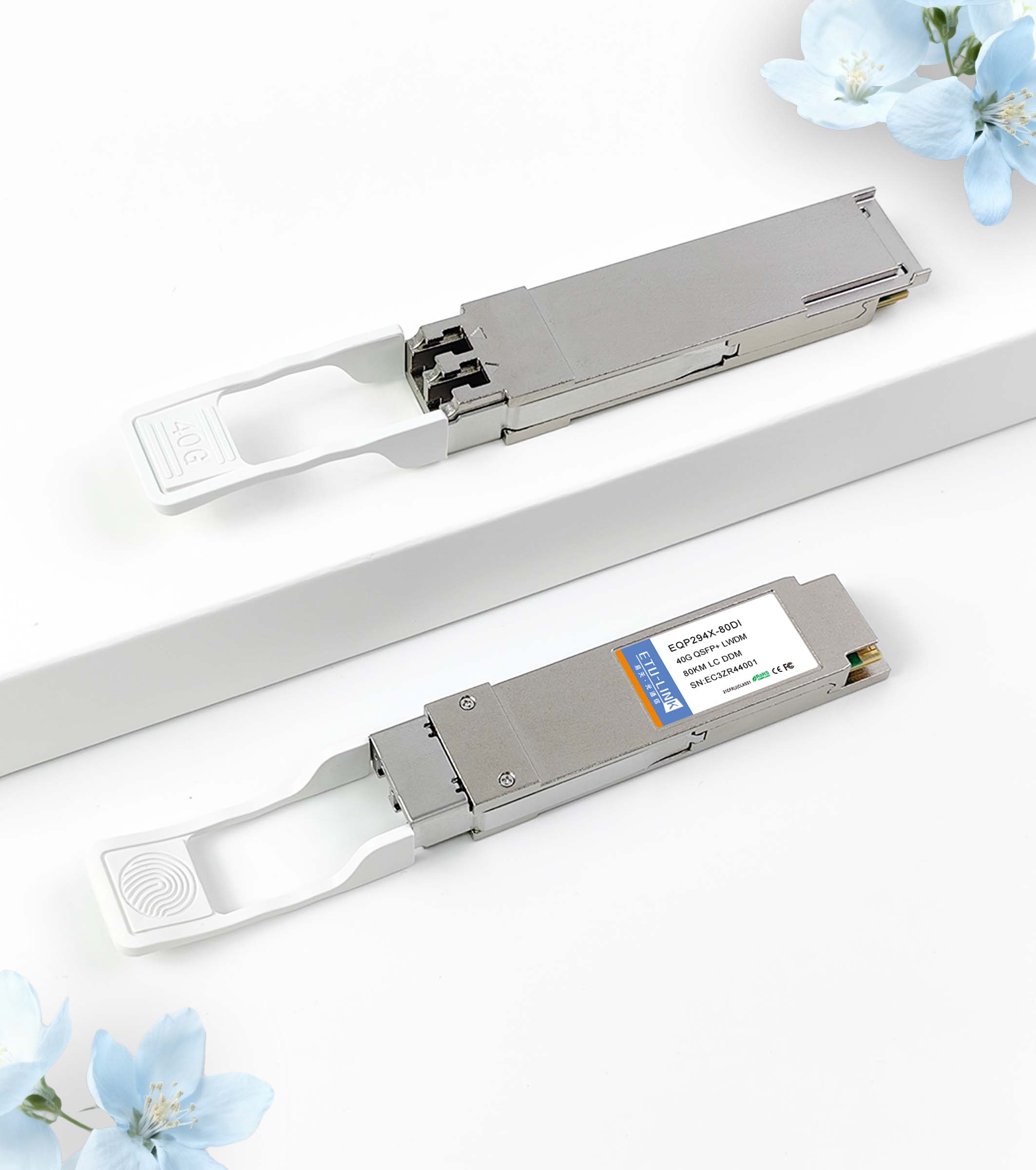

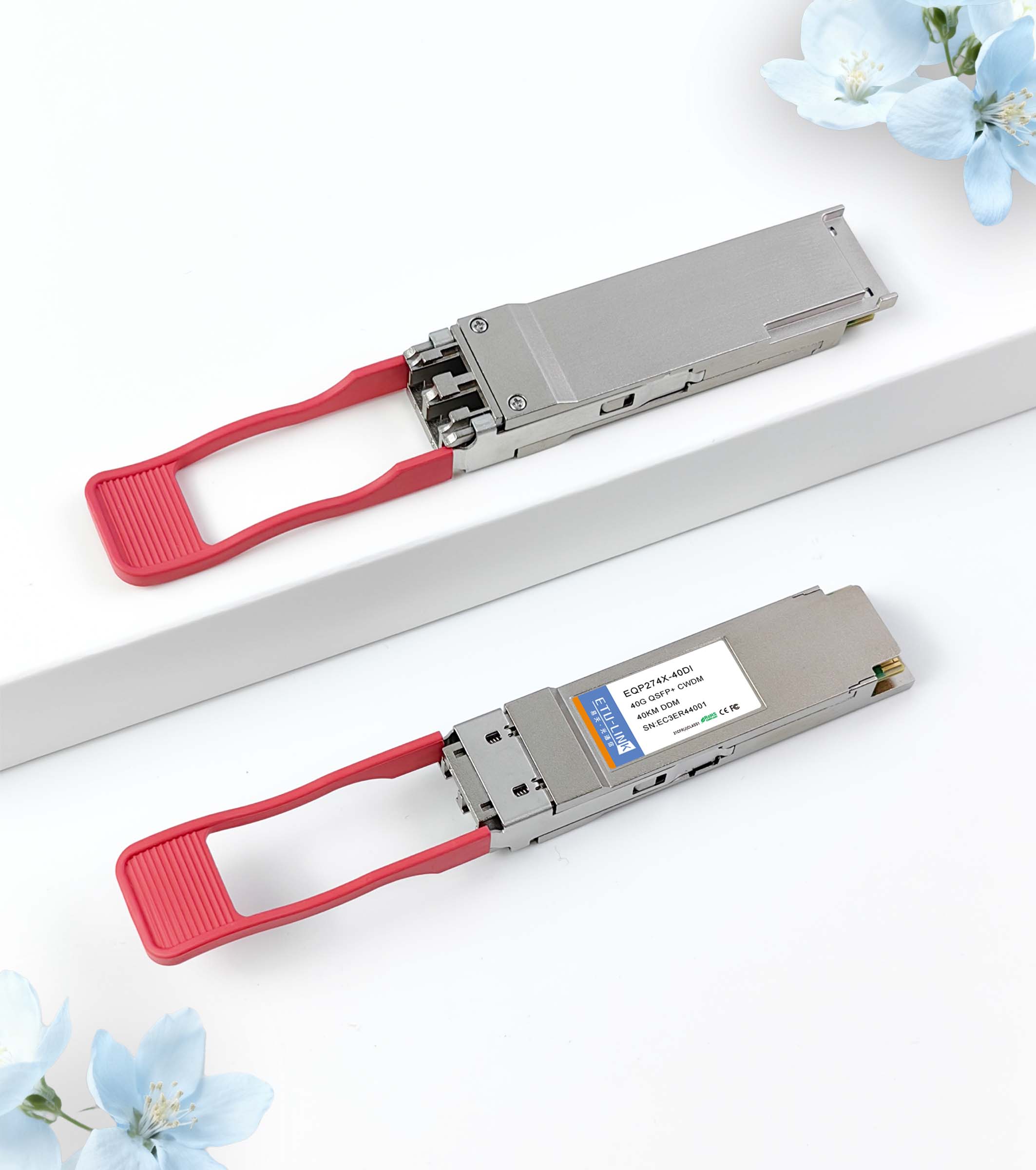

2、40G QSFP+ optical module

ETU Model

Package

Rate

Wavelength(nm)

Interface

Transmission distance

Fiber type

EQ854X-3MCD01

QSFP+

40G

850

MPO

100M(OM3)

150M(OM4)

MM

EQxx4X-3LCD2

QSFP+

40G

CWDM4

DX LC

2KM(OS2)

SM

EQxx4X-3LCD10

QSFP+

40G

CWDM4

DX LC

10KM(OS2)

SM

EQxx4X-3LCD40

QSFP+

40G

CWDM4

DX LC

40KM(OS2)

SM


The interconnection between data center network elements and equipment mostly uses multi-mode fiber. Although the price of multi-mode fiber is more expensive than single-mode fiber, the transmission bandwidth is not as high as single-mode fiber, and the attenuation is greater than single-mode fiber. However, because the price of multi-mode optical modules is relatively cheaper than single-mode optical modules, indoor multi-mode optical fiber communication systems have a great comprehensive cost advantage over single-mode optical fiber systems.
