My training experience

  • July 05. 2017
Time has always passed so quickly, unconsciously, I have come to ETU-Link for more than a year. When first day to the company, I was so strange to the environment, colleagues, or the products. With the patient instruction and training of the manager, gradually become familiar with the company's products.
The manager's training has changed me a lot, I also got the manager's trust and gave me the important task of training new colleagues.

In order to facilitate their learning in the future, today specially share some of the key summary as follows:

1. Abbreviations for popular products :
SX: 1.25G SFP 850nm 550M DDM
LX: 1.25G SFP 1310nm 10/20KM DDM
EX: 1.25G SFP 1310nm/1550nm 40KM DDM
ZX: 1.25G SFP 1550nm 80KM DDM
SR: 10G SFP+ 850nm 300M DDM
LR: 10G SFP+ 1310nm 10/20KM DDM
ER: 10G SFP+ 1310nm/1550nm 40KM DDM
ZR: 10G SFP+ 1550nm 80KM DDM

2. Each abbreviation corresponds to the model of each mainstream brand optical module



ETU

Cisco

HP

Juniper

Alcatel

Extreme

SX

ES8512-3LCD05

GLC-SX-MM

J4858C

EX-SFP-1GE-SX

SFP-GIG-SX

10051

LX

ES3112-3LCD10

GLC-LH-SM

J4859C

EX-SFP-1GE-LX

SFP-GIG-LX

10052

ES3112-3LCD20

EX

ES3112-3LCD40











ES5512-3LCD40







SFP-GIG-LH40



ZX

ES5512-3LCD80

GLC-ZX-SM

J4860C

EX-SFP-1GE-LH



10053

SR

ESP8592-3LCD03

SFP-10G-SR

J9150A

EX-SFP-10GE-SR

ISFP-10G-SR

10301

LR

ESP3192-3LCD10

SFP-10G-LR

J9151A

EX-SFP-10GE-LR

ISFP-10G-LR

10302

ESP3192-3LCD20

ER

ESP3192-3LCD40

SFP-10-ER

J9153A

EX-SFP-10GE-ER

ISFP-10G-ER

10309

ESP5592-3LCD40

ZR

ESP5592-3LCD80

SFP-10G-ZR

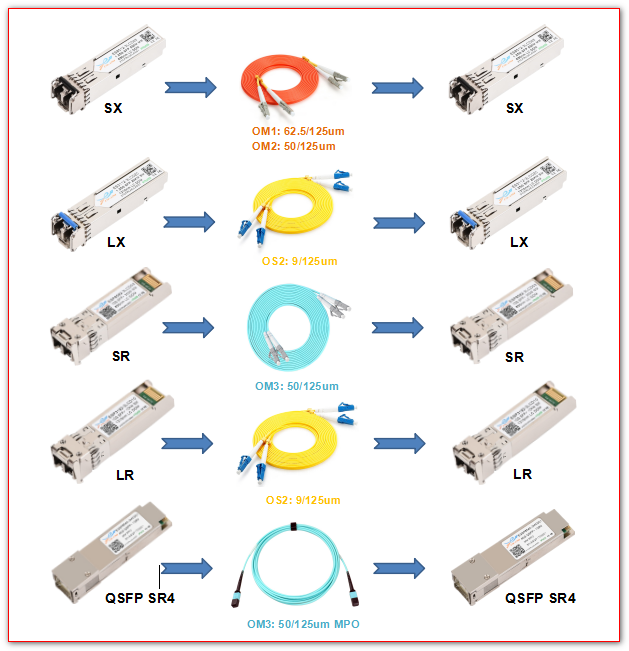

3. Proper matching of modules and patch cord
 patch cord

4. The chip scheme of our optical transceiver:
Low speed product: UX(UX3328S), SEMTECH(GN1157)
10G:Maxim(MAX3799), SEMTECH, MACOM(MO2193)
40G:SEMTECH
100G:Maxim, MACOM

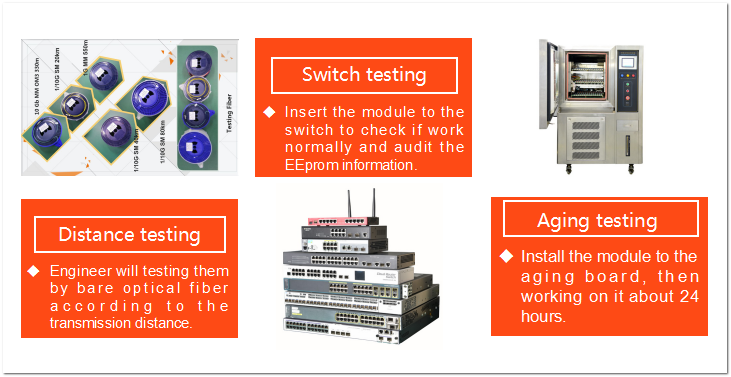

5.The way of our QC control the Quality:
a. Material testing  for Tosa and Rosa (Bosa), it can be reduce reject rate.
b. Product parameter testing: Output power, sensitivity, extinction ratio and eye diagram, the excellent parameter make the products working more steady.
c. The distance testing: the engineer will testing them by bare optical fiber according to the transmission distance, the customer no worried about loss pocket.
d. Switch testing: Insert the module to the switch to check if work normally and audit the EEprom information.
e. Aging testing: Install the module to the aging board, then working on it about 24 hours. This function is that found the failure product in advance before shipment and decreasing reject rate.


We always try our best to do the product well to make our customers fully satisfied. We believe that we will be your good partner of choice.
Hope this sharing will be helpful for new colleagues’ learning! Improve in study, grow in work.
