Today we will share how to assemble the optical transceiver, take 10G as example.

10G optical transceiver components:

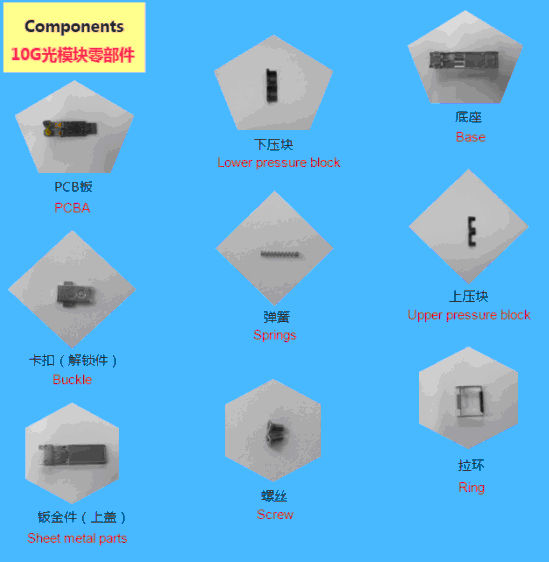

Base, lower pressure block, PCBA, upper pressure block, springs, buckle, ring, sheet metal parts, screw.



10G optical transceiver assembly steps:

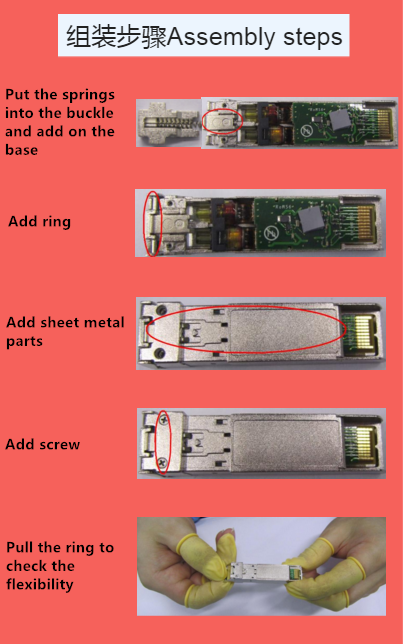

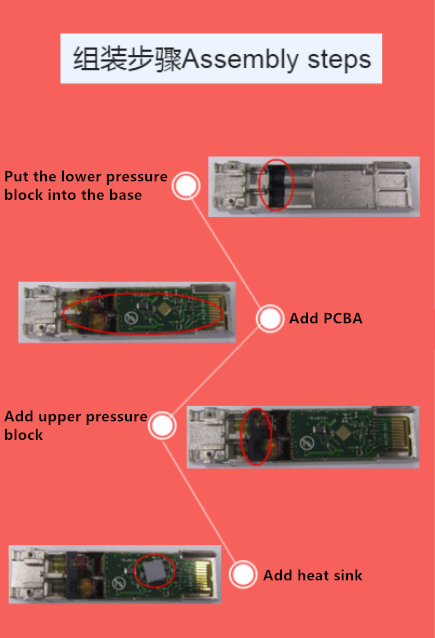

Put the lower pressure block into the base → Add PCBA → Add upper pressure block → Add heat sink → Put the springs into the buckle and add on the base → Add ring → Add sheet metal parts → Add screw → Pull the ring to check the flexibility




Note: To check whether successfully assemble the module, pull ring by hand, good flexibility for successful, bad flexibility for fail.

The formation of a module needs multiple steps to complete, seemingly simple, but also relatively easy to forget some step if careless. So we have to pay more attention when assembling. Hope it will help you easily assemble the optical transceivers through our illustrated explanation!
