Introduction of Cisco catalyst 9400 series switch and optical module matching solutions

  • September 09. 2022


Cisco catalyst ® 9400 series switches are Cisco's main modular enterprise exchange access, distribution and core platform for security, Internet of things and cloud. This series of switches is the basic component of Cisco's leading enterprise architecture sd-access. The platform adopts a chassis architecture that supports up to 9 TBPs system bandwidth, and has a powerful power output (60W and 90W POE) that meets the high-density IEEE 802.3bt standard, which can provide you with unparalleled investment protection. Now, the whole product portfolio has the advantage of providing redundancy.

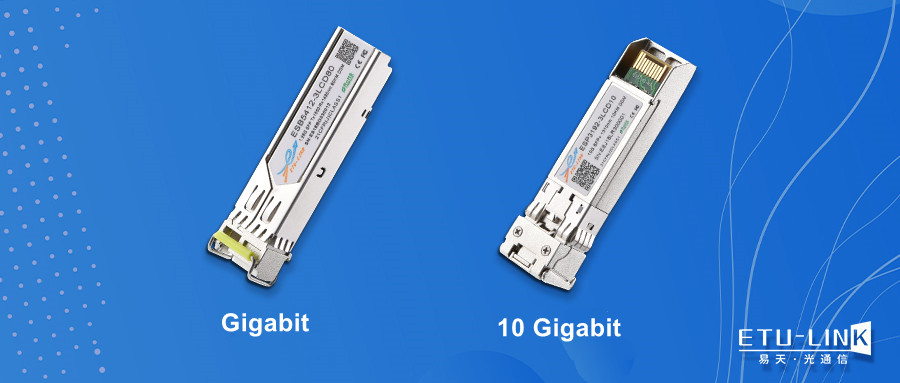

Cisco catalyst 9400 series switches are equipped with Gigabit SFP ports and 10 Gigabit SFP+ ports. The following is the optical module solution sorted out by ETU-LINK for you.

ETU PN

CISCO PN

Package

Wavelengthnm

Transmit  distrance

Connector

ES8512-3LCD05

GLC-SX-MMD

SFP

850

500m

Dual LC

ES3112-3LCD10

GLC-LH-SMD

SFP

1310

10km

Dual LC

ES3112-3LCD40

GLC-EX-SMD

SFP

1310

40km

Dual LC

ES5512-3LCD80

GLC-ZX-SMD

SFP

1550

80km

Dual LC

ES85X-3LCD03

SFP-10G-SR-S

SFP+

850

300m

Dual LC

ES31X-3LCD10

SFP-10G-LR-S

SFP+

1310

10km

Dual LC

ESB23X-3LCD10

ESB32X-3LCD10

SFP-10G-BXD

SFP-10G-BXU

SFP+

1270

1330

10km

Single LC

ESB23X-3LCD40

ESB32X-3LCD40

SFP-10G-BX40D

SFP-10G-BX40U

SFP+

1270

1330

40km

Single LC




This series of switches also provides a general architecture that can be expanded to up to 400 ports. Moreover, by using Cisco stackwise virtual technology to virtually stack two catalyst 9400 modular switches into one logical switch, the port density can also be doubled.


The catalyst 9400 series chassis is optimized for enterprises and uses efficient lateral airflow. All removable components (including management engine, line card, power supply and fan bracket) can be completely removed from the front. The chassis can also choose to remove the fan bracket from the rear to achieve efficient cable management. The catalyst 9400 series chassis, management engine, line cards, power supplies, and fan bays use embedded RFID tags to help easily manage assets and inventory using commercial RFID readers.
