Introduction and application of 40G QSFP+ LR4 optical module

  • August 12. 2021

In recent years, in order to cope with the rapid development of ultra-definition video, cloud storage and cloud computing services, major IT giants and telecom operators around the world are actively preparing to build large data centers. The 10G network can no longer meet the current data transmission needs, and the emergence of the 40G network has greatly eased the pressure on the data center. Next, ETU-LINK will introduce a 40G QSFP+ LR4 optical module.


Introduction to the 40G QSFP+ LR4 optical module

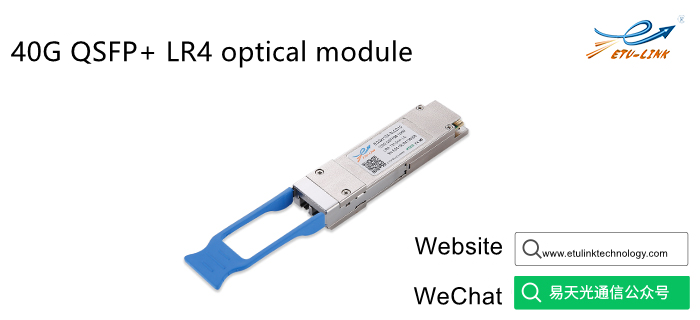

40G QSFP+ LR4 optical transceiver adopts hot-swappable QSFP+ package, and its working wavelength is 1271, 1291, 1311, 1331nm. It is also a 4-channel full-duplex transceiver module. Its maximum speed is as high as 44.6Gbps, dual LC optical ports, and the transmission distance up to 10km through single-mode optical fiber OS2.


ETU PN

Transmission Rate

Abbreviation

Transmission Distance

Interface Type

EQxx4X-3LCD10

40G

QSFP+ LR4

10KM

Duplex LC


The working principle of 40G QSFP+ LR4 optical module


At the transmitting end, 4 10Gbps serial data streams are sent to the driver chip, and the driver chip controls the direct modulation laser, and then the optical signals output by the 4 lasers are loaded into a single-mode fiber through an optical multiplexer and an LC connector middle.


At the receiving end, 4 channels of 10Gbps optical signals flow through the optical demultiplexer to 4 channels, and the optical signal of each channel flows through the PIN-type photodetector and the limiting amplifier for output.


ETU-LINK 40G QSFP+ LR4 optical module compatibility


The 40G QSFP+ LR4 optical module provided by ETU-LINK is widely compatible with Huawei, Cisco, H3C, ZTE, Juniper, Dell, IBM, Inter and other major switch brands.

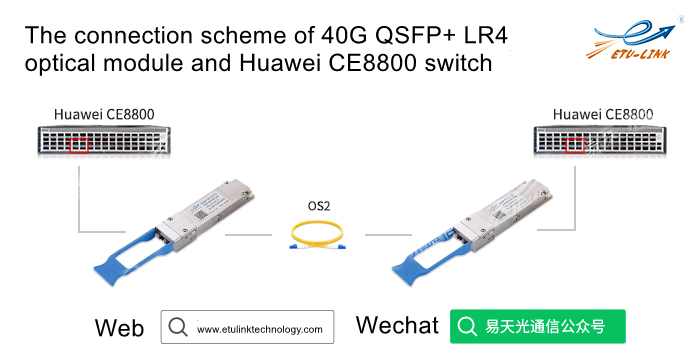

The connection scheme of 40G QSFP+ LR4 optical module and Huawei CE8800 switch

Because the rate of 10G Ethernet cannot meet the increasing bandwidth demand, and the current high price of 100G optical modules cannot be applied on a large scale, as a result, 40G Ethernet and 40G optical modules are widely used in current data centers as a transitional solution.
