Introduction and application of 32G SFP28 FC fiber channel optical module

  • December 05. 2020

With the development of global optical communication network, optical transceiver module plays an increasingly important role in the field of optical communication. Optical communication devices and technologies are also developing in the direction of modularization, high speed, integration, multiple applications, multi-function, flexibility and low-cost. High speed and high-quality optical fiber communication has become an inevitable trend in the development of information industry.

Fibre channel technology is a network storage switching technology, which can provide long distance and high bandwidth, and can realize the transmission of large data files among storage, server and client nodes. The normal operating rates are 2Gbpss, 4Gbps, 8Gbps, 16Gbps, 32Gbps, 64Gbps and 128Gbps, which are mainly used to connect computer storage devices.

This article focuses on the 32G FC SFP28 optical module. The 32G FC SFP28 optical module is mainly used in 32G fiber channel, and is compatible with 8G / 16G fiber channel. At present, the commonly used ES2853X-3LCD01 and ES2313X-3LCD10 are commonly used. Next, ETU-Link will introduce the two 32G optical modules.

ETU PN

Package

Data Rate

Wavelength

Connector

Distance

ES2853X-3LCD01

SFP28

28.05G

850nm

Dual LC

100M

ES2313X-3LCD10

SFP28

28.05G

1310nm

Dual LC

10KM

1. ES2853X-3LCD01

ES2853X-3LCD01 is adopted hot pluggable SFP28 package, with a wavelength of 850nm and dual LC interface. The maximum speed of ES2853X-3LCD01 is as high as 28.05Gbps. The operating temperature range is 0 °C to 70 °C. ES2853X-3LCD01 is compatible with 8G / 16G fiber channel standard, and the transmission distance can reach 70m with OM3 multimode fiber and 100m with OM4 multimode fiber.

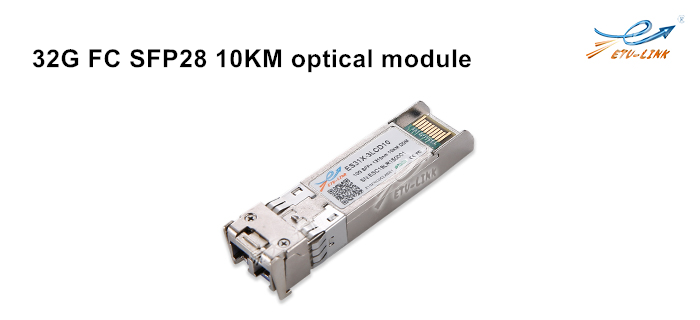

2. ES2313X-3LCD10

ES2313X-3LCD10 is adopted hot pluggable SFP28 package, the wavelength is 1310nm. It has dual LC interface. The maximum speed is up to 28.05gbps, and the operating temperature range is from 0 ° C to 70 ° C.

ES2853X-3LCD01 can be compatible with 8G / 16G fiber channel standard, and the transmission distance can reach 10km with OS2 single-mode fiber.

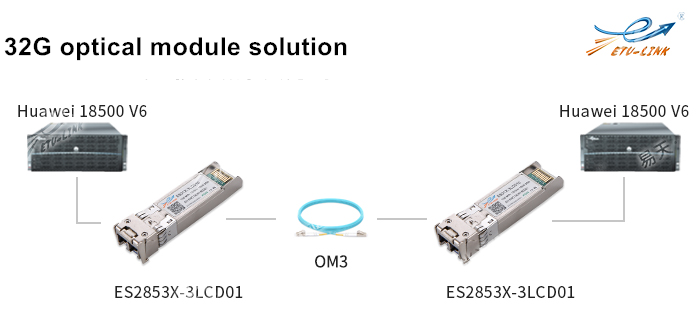

32G optical module direct connection scene:

The above is the 32G optical module product introduction of ETU-Link, which can be widely compatible with Cisco, Huawei, Juniper, Brocade, IBM, Dell, HP, H3C and other brand equipment. The 32G FC SFP28 optical module can support the network upgrade of San users more efficiently, and help enterprises upgrade the storage area network with higher capacity.
