In recent years, with the needs of users and the development of data center, low-speed optical communication products have been unable to meet the needs of daily data transmission. The data transmission speed of optical module has increased from 10G, 25G, 40G to 100G, 200G and even 400G.

At present, the package form of 100G optical module have 4 types: CFPP, CFP2, CFP4 and QSFP28 in the market. The QSFP28 optical module can be inserted into the switch with higher density interface because of its smaller size, so QSFP28 package is the mainstream solution of 100G optical module. Next, ETU-LINK will introduce the 100G QSFP28 LR4 optical module.

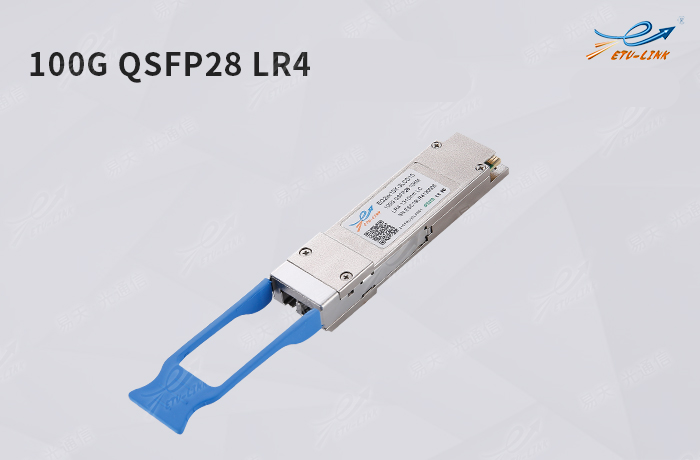

Introduction of 100G QSFP28 LR4 optical module

The 100G QSFP28 LR4 optical module is adopted QSFP28 package form, with dual LC connector. The maximum transmission distance can reach 10KM by matching with single-mode patch cord OS2. The main application scenarios are 100G Ethernet and metro optical transmission network.

The operating wavelengths of 100G QSFP28 LR4 optical module are 1295, 1300, 1304 and 1309nm, and the operating temperature range is 0 °C ~ 70 °C, with built-in digital diagnosis function (DDM).

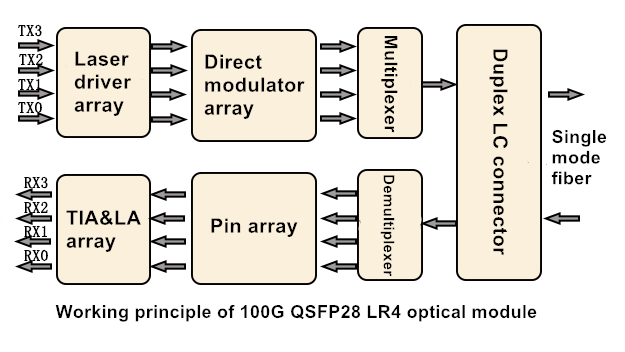

Working principle of 100G QSFP28 LR4 optical module

The 4-channel 25Gbps electrical signal is converted into 4-channel LAN WDM optical signal, and then MUX or WDM is used to multiplex it into a single channel to realize 100G optical signal transmission. At the receiving end, the module uses demux to demultiplex 100G optical input into 4-channel LAN WDM optical signal, then converts it into 4-channel electrical signal and then outputs the channel.

Compatibility of ETU-LINK 100G QSFP28 LR4 optical module

The 100G QSFP28 LR4 optical module of ETU-LINK can be fully compatible with Huawei, Ruijie, Cisco, Juniper, ZTE and other brands of switches. The optical modules provided are subject to strict quality control and compatibility test before leaving the factory, so as to ensure that users receive optical modules with high quality.

Application of 100G QSFP28 LR4 optical module

The 100G QSFP28 LR4 optical module is mainly used in 100G data center switch, 100G high-end campus core switch and 5g medium return network.
