Interconnection solutions for Arista 7500R series switches

  • August 13. 2018
Nowadays, large data centers and networks tend to provide multiple Ethernet interface speeds, including 10Gbps, 40Gbps, and 100Gbps. Based on this, Arista 7500R series switches are introduced, which greatly increased the flexibility and scalability of data center cabling, and it has been widely favored by people.

Arista 7500R series modular switches can provide the highest performance in the industry, it has 115Tbps system processing capacity to meet the needs of the largest data center. Through system options, 7500R series offers 4, 8 or 12 line card modules, 2 management modules and 6 switching modules. It is mainly used in large virtualized data centers and task critical environments.

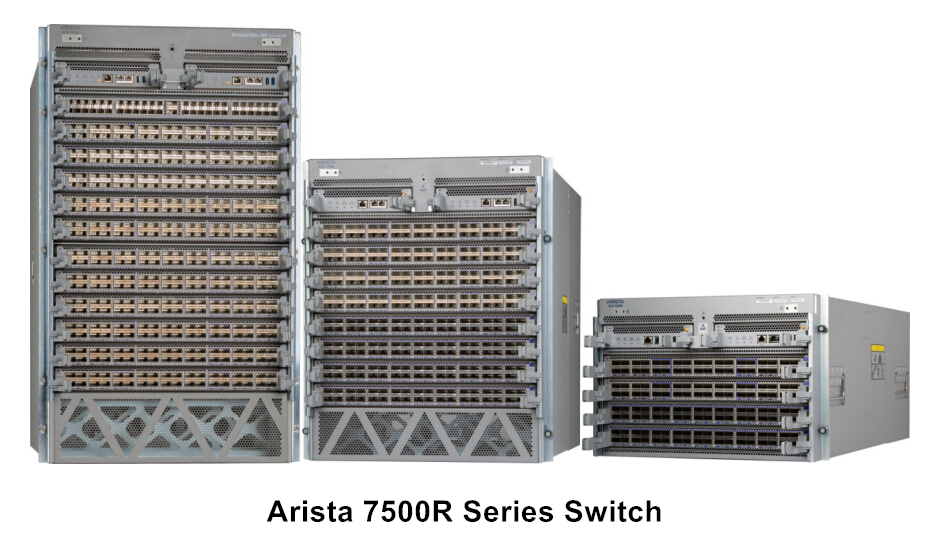

Arista 7500R series switches

Arista 7500R series switches can easily handle the most stringent requirements of data centers in case of low latency, has the following advantages:
115Tbps transmission capacity per second (no blocking)
High density 40GbE and 100GbE ports, can also flexible support for 25GbE and 50GbE
Provides more than 1700 10G and 25G Ethernet ports (1728 10/25G ports, 432 40/100G ports)
Seamless 7500E switch ( line cards, fabric and monitor)
Can be directly connected to 25GbE, 40GbE and 50GbE storage systems, providing high performance and low latency

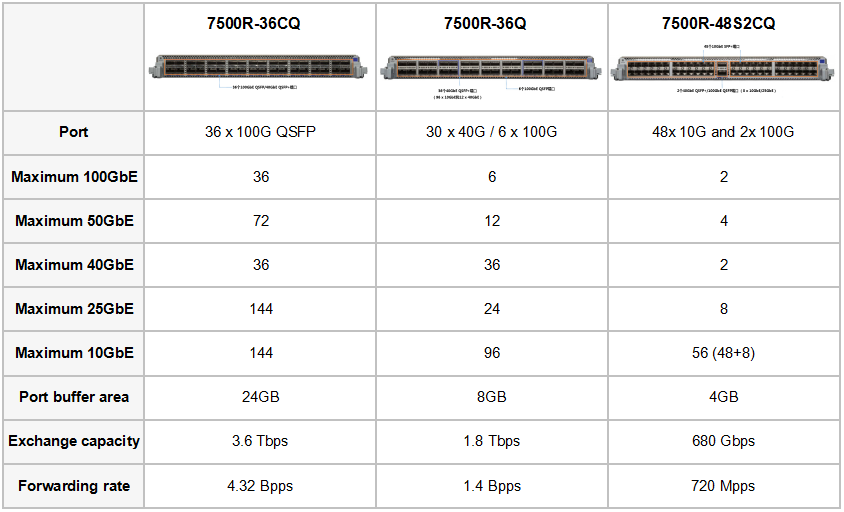

Arista 7500R series switc three kinds of line cards, 500R-36CQ, 7500R-36Q and 7500R-48 S2CQ.


Interconnection solutions for Arista 7500R series switches

No.

Arista P/N

ETU P/N

Description

1

SFP-1G-SX

ES8512-3LCD05

1.25G SFP 850nm 550M DDM

2

SFP-1G-LX

ES3112-3LCD10

1.25G SFP 1310nm 10KM DDM

3

SFP-1G-T

ES-T1-RJ45

1000M SFP Copper-T RJ45 100m

4

SFP-10G-SR

ESP8592-3LCD03

10G SFP+ 850nm 300M DDM

5

SFP-10G-LR

ESP3192-3LCD10

10G SFP+ 1310nm 10KM DDM

6

SFP-10G-ER

ESP5592-3LCD40

10G SFP+ 1550nm 40KM DDM

7

CAB-SFP-SFP-1M

ESPCAP92-330C1

10G SFP+ to SFP+ DAC 1M Cable

8

QSFP-SR4

EQSP854A-3MCD01

40G QSFP+ 850nm 100M MPO

9

QSFP-LR4

EQxx4A-3LCD10

40G QSFP+ CWDM 10KM LC

10

CAB-Q-Q-1M

EQSPPD4A-330C1

40G QSFP+ to QSFP+ DAC 1M Cable

11

CAB-Q-S-1M

EQDC4A-3492C1

40G QSFP+ to 4*SFP+ DAC 1M Cable



ETU-Link provides all above optical modules and high speed cables, our products will be tested on the switch before delivery, 100% compatible with Arista 7500R series switches, and the price is very reasonable. For more details, please visit our website:
www.etulinktechnology.com.
