Interconnection Option for Cisco Catalyst 6800 Series Switches

October 18. 2016

With the advent of the Internet era, optical fiber communication network has been widely used in the world. As the core component of the optical fiber network, optical switches are also well known. Cisco switch is the popular brand product in the industry, can adapt to a variety of environment and application requirements. Today we’d like to briefly introduce Cisco Catalyst 6800 series switches and provide some interconnection options.

Cisco Catalyst 6800 Series Switches Overview
Catalyst Cisco 6800 series switch is the highest-performance Catalyst switches so far, with excellent network programming, total throughput is 11.4 Tbps, each slot is 880 Gbps, built specifically for the support of the park backbone 10/40/100Gbps services.

Cisco Catalyst 6800 Series Switches Modules
Cisco Catalyst 6800 Series Switches including three modules: Cisco Catalyst 6807-XL, Cisco Catalyst 6880-X and Cisco Catalyst 6800ia.

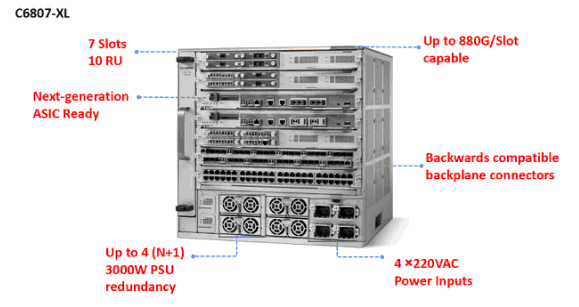

Cisco Catalyst 6807-XL Switch

Cisco Catalyst 6807-XL is a 7 slot, 10RU rack unit modular switch, it can support 100 GB Ethernet.

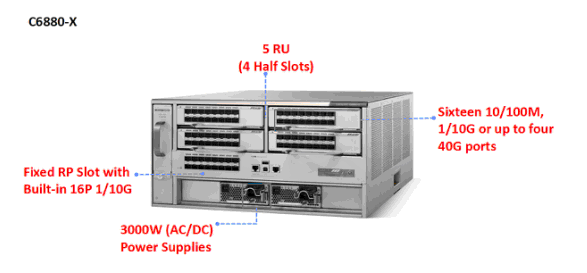

Cisco Catalyst 6880-X Switch
The 6880X serves as a partially fixed-configuration switch, and it lets mid-market customers get into higher density 10 Gbps cheaply.

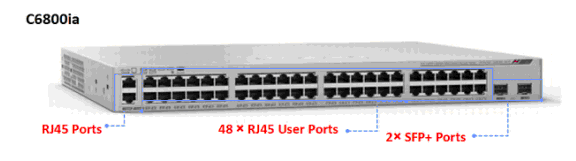

Cisco Catalyst 6800ia Switch
Cisco Catalyst 6800ia switch is a 10RU switch, with 1 48 GbE ports.

Features of Cisco Catalyst 6800 Series Switches
Simple—With smart operations features like Cisco virtual switching system, it supports catalyst instant access, which extends backbone features to the access layer to simplify configuration and management.

Smart—Programmable with software-defined networking (SDN) support. Easily build applications to automate operations and create services. 6800 series also supports the industry-standard open-flow interface, for custom network services such as network slicing and traffic steering.

Highly Secure—With Cisco TrustSec for scalable and dynamic role-based access control, Cisco IOS Flexible for visibility into your traffic flows through your network management system and MACsec encryption to help you comply with security regulations.

Interconnection Option for Cisco Catalyst 6800 Series Switches
As mentioned above, Cisco Catalyst 6800 series switches mainly provide 1/10G Ethernet port, so can use the SFP optical transceiver, SFP+ optical transceiver to achieve interconnection. Interconnection options for the 6800 series are shown as following.

10G SFP+ optical transceiver

ETU Model	Cisco Model	Product description
ESP8592-3LCD03	SFP-10G-SR	10G SFP+ SR MM 850nm 300M LC connector with DDM
ESP3192-3LCD02	SFP-10G-LRM	10G SFP+ LR MM 1310nm 220M LC connector with DDM
ESP3192-3LCD10	SFP-10G-LR	10G SFP+ LR SM 1310nm 10KM LC connector with DDM
ESP5592-3LCD40	SFP-10G-ER	10G SFP+ ER SM 1550nm 40KM LC connector with DDM
ESP5592-3LCD80	SFP-10G-ZR	10G SFP+ ZR SM 1550nm 80KM LC connector with DDM

SFP optical transceiver

ETU Model	Cisco Model	Product description
ES8512-3LCD05	GLC-SX-MM	1.25G SFP MM 850nm 550M LC connector with DDM
ES3112-3LCD10	GLC-LH-SMD	1.25G SFP SM 1310nm 10KM LC connector with DDM
ES3112-3LCD40	GLC-EX-SMD	1.25G SFP SM 1310nm 40KM LC connector with DDM
ES5512-3LCD80	GLC-ZX-SMD	1.25G SFP SM 1550nm 80km LC connector with DDM
ES3103-3LCD2	GLC-GE-100FX	155M SFP MM 1310nm 2KM LC connector with DDM
ES-T1-RJ45	GLC-T	Leave A Message If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can. Optical transceiver SFP optical transceiver 10G SFP+ optical transceiver Previous : Common switch series Next : Perfect compatible with H3C switch Categories Blog ETU-LINK achievement Optical Transceivers Introduction Direct Attach Cable Introduction Active Optical Cable Introduction Optical Fiber Introduction Switch Introduction Data Center Introduction Media Converter Introduction Exhibitions Introduction New Blog Optical device packaging technology: COB, BOX and coaxial difference analysis PCIe over Optics: ushering in a new era of AI interconnect and transport Introduction to DML and EML Modulation for Optical Module Lasers 25G SFP28 BIDI ZR 80km Optical Module: The New Benchmark for High Performance and Long Distance Transmission Single-Lambda 100G and PSM4 Technology Introduction Tags Optical transceiver optical patch cord Direct Attach Cable Indoor Optical Fiber SFP optical transceiver Active Copper Cable 100G optical module Active Optical cable Cisco DAC compatible SFP optical module New Products 100G QSFP28 LR1 Single Lambda 10KM LC Optical Transceiver Read More 25G SFP28 ZR 1310nm/1300nm 80KM LC Optical Transceiver Read More 100G QSFP28 ZR4 80KM LC Optical Transceiver Read More 100G QSFP28 ER1 BIDI 40KM LC Optical Transceiver Read More 100G QSFP28 LR1 BIDI 10KM LC Optical Transceiver Read More 400G QSFP-DD DAC Series Read More 40G QSFP+ ZR4 80KM LC Optical Transceiver Read More 40G QSFP+ ER4 60KM LC Optical Transceiver Read More Subscribe For inquiries about our products or pricelist, please leave your information with us and we will be in touch with in 24 hours. Need Help Home About ETU-Link Contact Us News Blog Sitemap XML Privacy Policy Downloads Partners Hot Tags 10G SFP Copper 40G QSFP+ SR4 Transceiver 100G QSFP28 AOC 1.25G SFP Optical Transceiver 25GBase-SR SFP28 Transceiver Module 40G QSFP AOC 10G Bidi SFP+ 10GBASE-LR module 10GBase-SR SFP+ Transceiver Module 10G SFP+ DAC cable Contact Us Factory: Right Side Of 3rd Floor, No. 102 Building, Longguan Expressway, Dalang Street, Longhua District, Shenzhen Office: Floor 4, Building 4, Nanshan Yungu Phase ll, Taoyuan Community, XiliStreet,Nanshan District, Shenzhen +86-755-23284603 +86-755-23284603 Sales@etulinktechnology.com © Copyright: 2024 ETU-Link Technology CO ., LTD All Rights Reserved. IPv6 network supported Friendly Links: 易天官网 Home Products Blog Contact top +86-755-23284603 Sales@etulinktechnology.com elvawang666 Leave A Message Leave A Message If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
