Direct Attach Cable Introduction

ETU-LINK High-speed Cable Product List

  • November 25. 2023

As a cost-effective high-speed data communication solution that replaces optical modules, high-speed cables are widely used in storage area networks, data centers, and high-performance computer connections. In this blog, ETU-LINK will introduce high-speed cables.

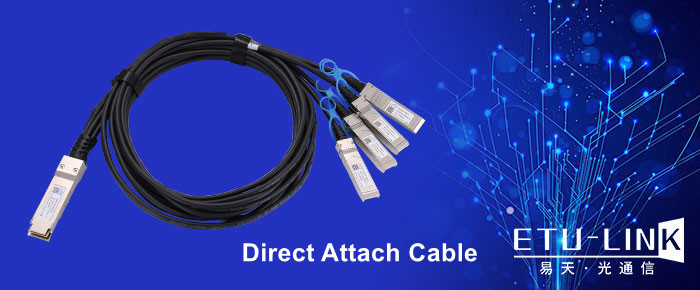

High-speed cable (Direct Attach Cable, referred to as DAC) is a kind of cable assembly purchased in a fixed length with fixed connectors at both ends, used for interconnection between short-distance devices. The connectors used for the high-speed cable are the same as optical modules. However, compared with optical modules, the connector modules of high-speed cables do not have expensive optical lasers and other electronic components, thus greatly saving costs and power consumption in short-distance applications. Generally, if the transmission distance is less than 7M, it is recommended to use high-speed cables, which are more cost-effective. Otherwise, AOC active optical cables or optical modules are more preferred.

Advantages of high-speed cables

High performance: The product’s maximum rate up to 200Gbps.

Good heat dissipation: The internal material of the cable is copper core. The natural heat dissipation effect of copper cable is good, energy saving and environmental protection.

Low crosstalk: Magnetic field interference has little impact on high-speed data transmission by DAC.

Low power consumption: Divided into active and passive. Passive cables do not require power and consume almost 0 power.

Low cost: Copper cables are cheaper than fiber optics, so using high-speed cables will reduce cabling costs.

ETU-LINK High-speed Cable Product Category

Cable Category

Cable Length

Cable Diameter

Connector Category

10G SFP+ DAC

1-15M

30-24AWG

SFP+

25G SFP28 DAC

1-5M

30-26AWG

SFP28

40G QSFP+ DAC

1-7M

30-24AWG

QSFP+

40G QSFP+ TO 4*10G

SFP+ DAC

1-7M

30-24AWG

QSFP+ TO SFP+

56G QSFP+ DAC

1-5M

30-24AWG

QSFP+

100G QSFP28 DAC

1-5M

30-26AWG

QSFP28

100G QSFP28 TO 2*50G QSFP28 DAC

1-5M

30-26AWG

QSFP28

100G QSFP28 TO 4*25G SFP28 DAC

1-5M

30-26AWG

QSFP28 TO 4*25G

SFP28

200G QSFP56 DAC

1-5M

30-26AWG

QSFP56



ETU-LINK can provide high-speed cables with data transmission rates from 1Gbps to 200Gbps to meet the growing cabling needs for high-speed transmission, scalability and reliability.



10G DAC supports transmission rates of 1Gbps and 10Gbps. The cable diameter is 30-24AWG, and uses a SFP+ packaged connector , with the longest distance of up to 15M.



The 25G DAC supports transmission rates of 10Gbps and 25Gbps. The cable diameter is 30-26AWG, and uses a SFP28 packaged connector , with the longest distance of up to 5M.



40G DAC supports a transmission rate of 40Gbps. The cable diameter is 30-24AWG, and uses a QSFP+ packaged connector, with the longest distance of up to 7M.



40G TO 4*10G DAC supports a transmission rate of 40Gbps. The cable diameter is 30-24AWG, and uses a QSFP+ TO SFP+ packaged connector , with the longest distance of up to 7M.



56G DAC supports a transmission rate of 56Gbps. The cable diameter is 30-24AWG, and uses a QSFP+ packaged connector, with the longest distance of up to 5M.



100G DAC supports a transmission rate of 100Gbps. The cable diameter is 30-26AWG, and uses a QSFP28 packaged connector, with the longest distance of up to 5M.



100G TO 2*50G DAC supports a transmission rate of 100Gbps. The cable diameter is 30-26AWG, and uses QSFP28 packaged connectors at both ends , with the longest distance of up to 5M.



100G TO 4*25G DAC supports a transmission rate of 100Gbps. The cable diameter is 30-26AWG, and uses a QSFP28 TO SFP28 packaged , with the longest distance of up to 5M.



200G DAC supports a transmission rate of 200Gbps. The cable diameter is 30-26AWG, and uses a QSFP56 packaged, with the longest distance of up to 5M.



The above is the entire introduction of ETU-LINK's high-speed cable products. If you want to order or learn more, please follow the official website of ETU-LINK. Winning your support is our unremitting pursuit!
