The 10G SFP+ optical transceiver is widely used in 10G Ethernet and is common in next-generation mobile networks, fixed access networks, metropolitan area networks, and data centers.The following ETU-LINK for everyone to check the next 10G SFP+ optical transceiver are what it.

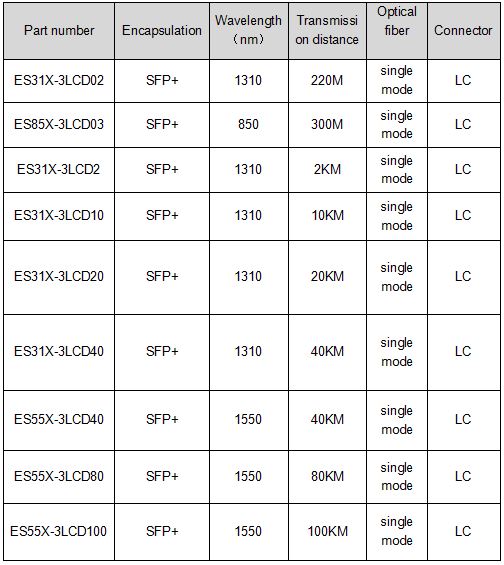

10G SFP+ Duplex Optical Transceiver

10G SFP+ duplex optical transceiver is a conventional optical transceiver with two LC optical fiber interfaces, and the transmission distance is up to 100 km. The commonly used 10G SFP+ duplex optical transceiver includes 10G SFP+ SR and 10G SFP+ LR, among which the transmission distance of 10G SFP+ SR is 300 meters. The 10G SFP+ LR has a transmission distance of 10km.

10G SFP+ Simplex Optical Transceiver

10G SFP+ BiDi optical transceiver uses WDM technology to realize bidirectional transmission of optical signals on an optical fiber, that is to say, optical signals can be transmitted and received using a port, but the transmission and receiving direction must adopt different central wavelengths. Because the transceiver can maximize the utilization of optical fiber, effectively reduce the use of optical fiber, and reduce the cost of network deployment, it has become the first choice for building 10G network architecture. It is important to note that this transceiver needs to be used in pairs.

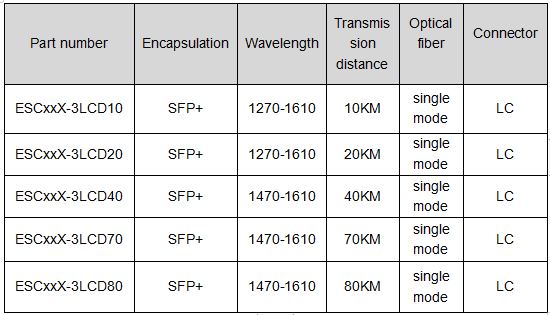

10G SFP+ CWDM Optical Transceiver

10G SFP+ CWDM optical transceiver is a kind of coarse wavelength division multiplexing optical transceiver , usually used with single mode optical fiber. The optical transceiver uses CWDM technology to save optical fiber resources, which significantly improves networking flexibility, economy, and reliability.

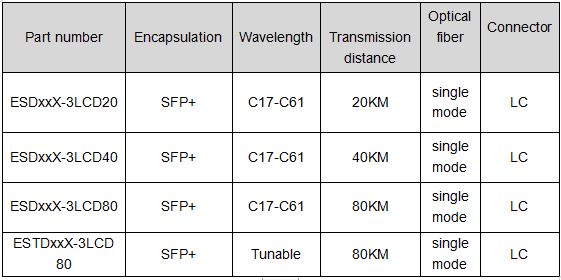

10G SFP+ DWDM Optical Transceiver

10G SFP+ DWDM optical transceiver is a large-capacity wavelength division multiplexing optical transceiver, usually used together with single mode optical fiber, the transmission distance is up to 80km, suitable for long-distance data transmission. This kind of optical transceiver can maximize meet the needs of large capacity and long distance transmission, multiple business operation and ensured the stability of future network expansion, also supports a variety of network model, also can undertake wavelength between each node scheduling, easy to extend, flexible business access capacity, high bandwidth utilization and high reliability, and other advantages.

The above are ETU-LINK’s 10G SFP+ optical transceiver for everyone.It not only can be applied to data center optical network transmission, but also can be used for access network and metropolitan area network’s optical network transmission.
