Characteristics and optical module application of Ruijie RG-S8600E series switch

  • July 01. 2020

Ruijie RG-S8600E series switch is the core switch of Ruijie network for Cloud Architecture Network Design. It is a new generation of cloud architecture network core switch which supports cloud data center characteristics and cloud park network characteristics, and realizes cloud architecture network integration, virtualization and flexible deployment. Today etu-link will focuses on the features of Ruijie RG-S8600E series switch and the application scheme of optical module.



Characteristics of Ruijie RG-S8600E series switch

1. Construction of non blocking switching based on CLOS architecture

The advanced CLOS multi-level multi plane switching architecture is adopted to realize the complete separation of forwarding and control plane, that is, independent switching network board and independent main control board can be configured to ensure that there is no blocking in the whole line speed between ports, and provide continuous bandwidth upgrade ability and service support capability.

2. It can meet the high-speed transmission business requirements of cloud computing data center

The RG-S8600E series switch can support high-density 1GE, 10GE, 40GE and 100GE Ethernet ports, and has the highest performance small packet wire speed forwarding capability in the industry. It can also calmly face the harsh requirements of high-speed business forwarding without packet loss in large data centers.

3. Data Center Virtualization enables network resources to be allocated on demand and flexibly expanded

It supports industry-leading VSU3.0 (Virtual Switching Unit) virtualization technology, VSD technology of virtual switching equipment, L2GRE technology of international standard, VEPA defined by IEEE802.1Qbg standard, and automatic migration of virtual machine awareness and security policies.

4. The design is efficient, reliable and green

The low-voltage power supply design of the internal system supports dynamic power consumption management. All optical ports are designed without PHY. All Ethernet ports support EEE high-efficiency and energy-saving standards. Intelligent fans support 256 level speed regulation and precise temperature control. They can work in harsh environments for a long time.

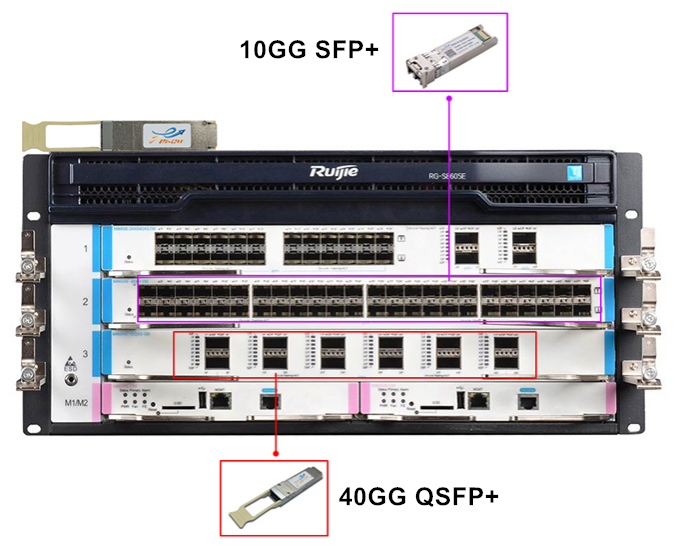

Optical module application solution of Ruijie RG-S8600E series core switch

PN

Description

Connector

Distance

ES8512-3LCD05

1.25G SFP 850nm 550M DDM

LC

550m

ES3112-3LCD10

1.25G SFP 1310nm 10KM DDM

LC

10km

ES85X-3LCD03

10G SFP+ 850nm 300M DDM

LC

300m

ES31X-3LCD10

10G SFP+ 1310nm 10KM DDM

LC

10km

EQ854X-3MCD01

40G QSFP+ 850nm 100M DDM

MPO

150m

EQxx4X-3LCD10

40G QSFP+ CWDM 10KM DDM

LC

10km

EQ28510X-3MCD01

100G QSFP28 850nm 100M DDM

MPO

100m

EQ2xx10X-3LCD10

100G QSFP28 CWDM 10KM DDM

LC

10km

The above optical module solutions of the switch are most common in large campus network core or convergence, small and medium network core and data center network core.
