Application of Arista switch match with fiber optic modules

  • September 03. 2019

Switch is a network device used for electrical (optical) signal forwarding.It provides an exclusive electrical signal path for any two network nodes that access the switch.

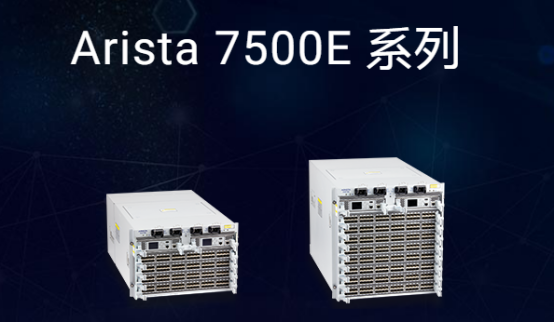

About the Arista7500E series switches

The Arista 7500E Series modular system is a high performance data center switch for compact 7 RU (4 slots) or 11RU (8 slots). These switches combine scalable L2 and L3 forwarding and traffic management with advanced features for network monitoring, accurate timing, and network virtualization to provide critical network performance for mission-critical data centers, cloud computing, enterprise, and HPC environments.

Arista 7500E Series uses the latest switching chip and software design

Unique switch fabric and deep buffer architecture with virtual output queue (VOQ) eliminates head-end (HOL) blocking and packet loss even in the most congested network environments. The Arista 7500 can easily handle the most demanding data center needs, including a mix of real-time traffic, multicast and storage traffic.

Arista 7500E Series Switch High Performance System:

v High-density line speed 10G/40G/100G interface;

v Long-distance coherent 100G DWDM with integrated MACsec security;

v High efficiency and energy saving;

v The minimum delay is less than 4 microseconds;

v Over 14 billion PPS and 30Tbps configurations.

Interconnect solution for Arista 7500E series switches

10G SFP+ optical module:

NO

ETU-LINK PN

Product description

1

ES85X-3LCD03

SFP-10G-SR 850nm 300m

10 Gigabit multimode optical module

2

ES31X-3LCD10

SFP-10G-LR 10KM 1310nm SFP+

10 Gigabit single mode optical module

3

ES31X-3LCD40

10G-SFP-ER 1310nm 40KM SFP+

10 Gigabit single mode optical module

4

ESCxxX-3LCD40

10G SFP+ CWDM 80KM

10 Gigabit single mode optical module

5

ESB23X-3LCD10

ESB32X-3LCD10

10G SFP+ BIDI 1270/1330nm 10KM

10 Gigabit single mode single fiber optical module

6

ES55X-3LCD40

SFP-10G-ER 1550nm 40KM

10 Gigabit single mode optical module

7

ES31X-3LCD02

SFP-10G-LRM 220M 1310NM

10 Gigabit multimode optical module

8

ES55X-3LCD80

SFP-10G-ZR 1550NM 80KM

10 Gigabit single mode optical module

9

ESDxxX-3LCD80

10G DWDM 100GHZ SFP+ 80KM

10 Gigabit single mode optical module

10

ESDxxX-3LCD80

10G DWDM 80KM 50GHZ SFP+

10 Gigabit single mode optical module

11

ESDxxX-3LCD40

10G DWDM 40KM 50GHZ SFP+

10 Gigabit single mode optical module

12

ESCxxX-3LCD40

10G CWDM 40KM SFP+

10 Gigabit single mode optical module

13

ESCxxX-3LCD20

10G SFP+ CWDM 20KM

10 Gigabit single mode optical module

14

ESB45X-3LCD80

ESB54X-3LCD80

10G SFP+ 1490/1550NM 80KM

10 Gigabit single mode single fiber optical module

15

ESB23X-3LCD60

ESB32X-3LCD60

10G SFP+ 1270/1330NM 60KM

10 Gigabit single mode single fiber optical module

16

ESB23X-3LCD40

ESB32X-3LCD40

10G SFP+ 1270/1330NM 40KM

10 Gigabit single mode single fiber optical module

17

ESB23X-3LCD20

ESB32X-3LCD20

10G SFP+ 1270/1330NM 20KM

10 Gigabit single mode single fiber optical module

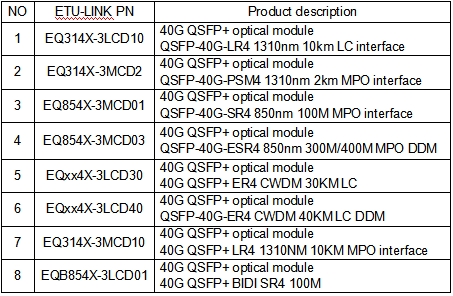

40G QSFP+ optical module


The above content mainly shares the interconnection scheme of Arista 7500E series switches match with 10G SFP+ optical modules or 40G QSFP+ optical modules. Thanks for your support!
