Advantages of 10G SFP+ AOC cable in data center interconnection solution

  • January 14. 2020

AOC active optical cable has the characteristics of low power consumption, small size, light weight and strong heat dissipation. Compared with copper cable, it has a longer transmission distance and better transmission performance. Compared with the optical module, the active optical cable does not have the problem of interface pollution, which greatly improves the stability and reliability of the system, and reduces the management cost of the computer room. Today ETU-Link will introduce the 10G SFP+ AOC active optical cable.

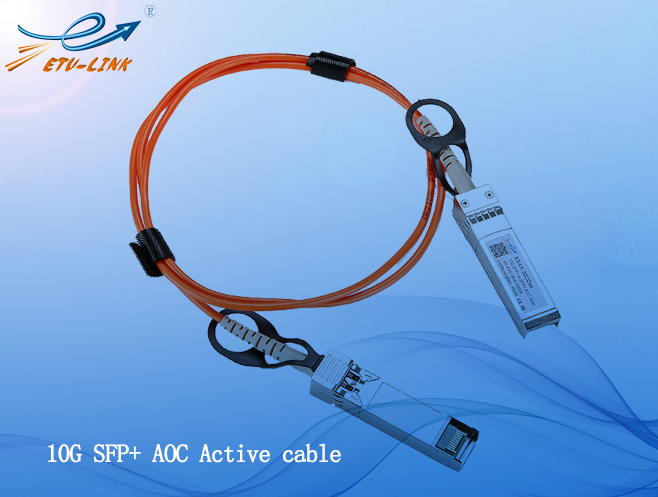

Product description

10G SFP+ active optical cable is a direct connected optical fiber component with SFP+ connector. They are suitable for short distance schemes and provide a cost-effective way to connect within and across adjacent racks. On the OM3 MMF, the maximum length of the SFP+ active cable is 300 meters.

Product characteristics

◆Electrical interface complies with sff-8431 protocol

◆Hot pluggqble support

◆850nm VCSEL laser and PIN receiver

◆Operating temperature:0°C ~ 70°C

◆Metal shell with EMI immunity

◆RoHS compliant

Application Area

◆10Gigabit Ethernet

◆4G and 8G fibre channel applications

◆1 InfiniBand QDRDDRSDR

◆High performance computing cluster

◆Server, switch, storage and host card adapters

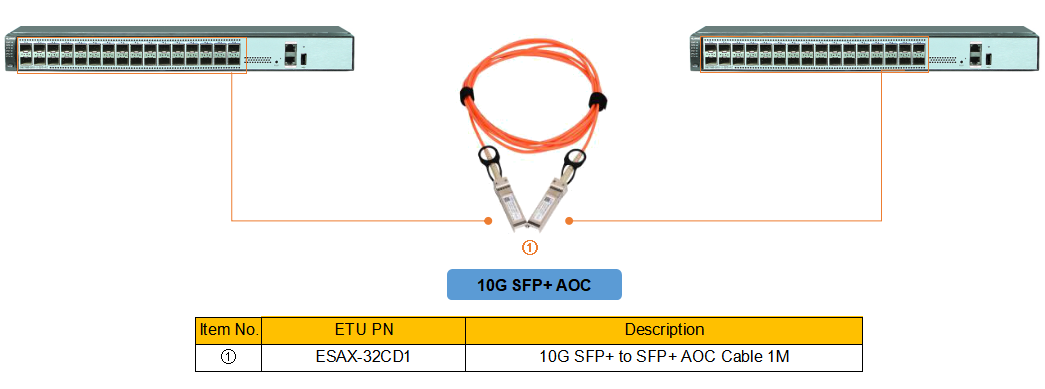

Application scenario:

Etu-link 10G SFP+ AOC supports up to 100m link length and is a low-cost solution to replace optical modules, which is usually used for the connection between switches.

In a word, 10G SFP+ AOC is a cost-effective 10G SFP+ optical cable solution. If you need to connect two 10G switches in 10G network construction, and the link length is within 100m, it is recommended to select 10G SFP+ AOC active optical cable.
