In the context of the continuous progress of Internet technology and the increasing demand for network transmission speed, 400G FR4 optical module came into being and has become the key to meet the needs of high-speed network transmission in the future. This article describes the features, advantages, and application scenarios of the 400G FR4 optical module in detail.

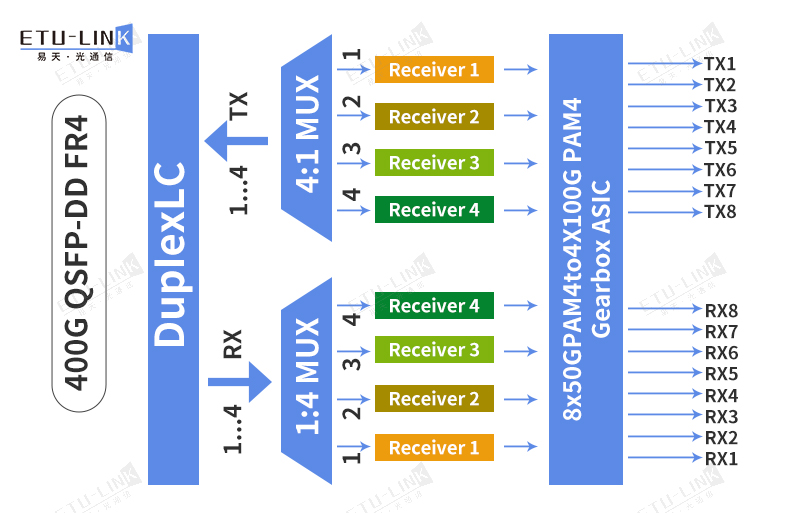

I. Working principles of the 400G QSFP-DD FR4 optical module

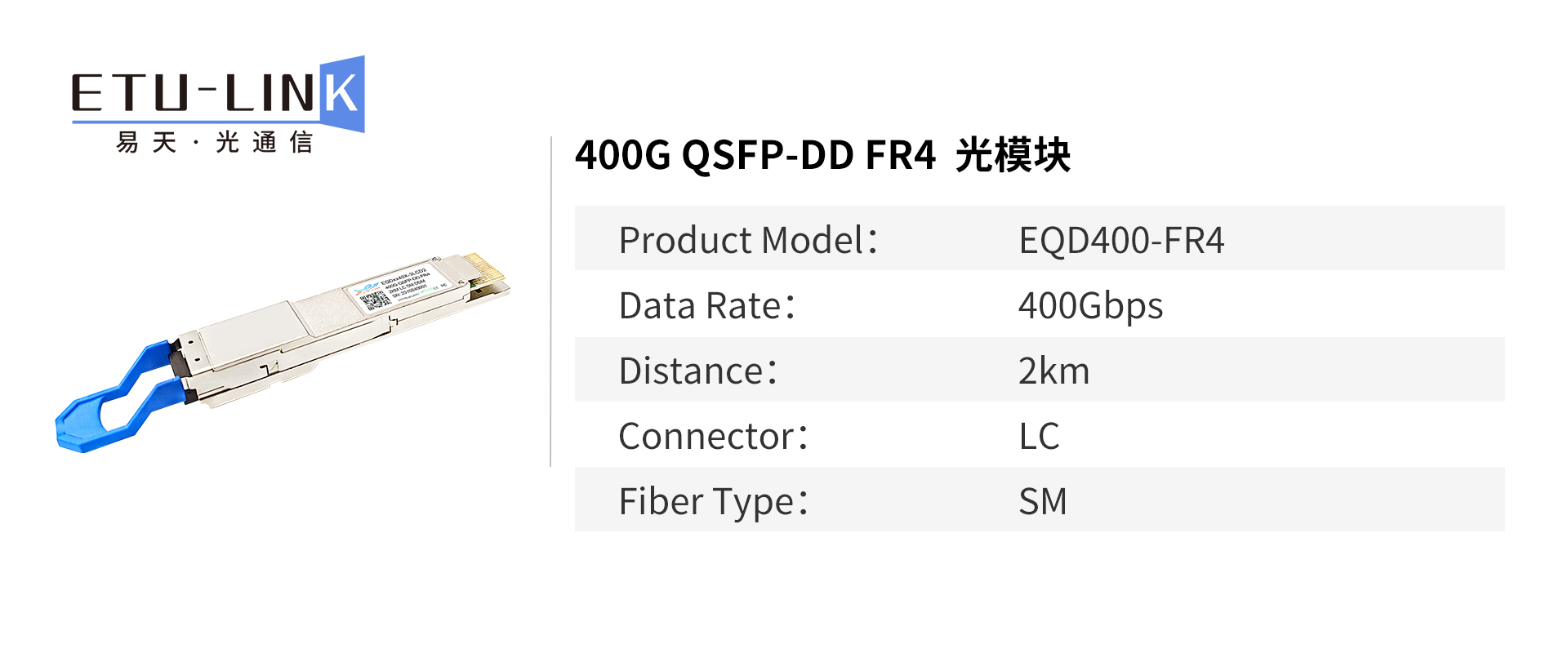

The 400G QSFP-DD FR4 optical module is an optical transceiver module designed for 2km optical communication applications and complies with the 100G Lambda MSA standard. The module can convert 8 53.125Gb/s electrical signals into 4 106.25Gb/s optical signals, and reuse them into one optical signal for 425Gb/s optical transmission.

Similarly, it can optically demultiplexed 425Gb/s input to a 4-channel signal, converting it to 8-channel output electronic data at the receiving end. It is designed to meet the harshest external operating conditions, including temperature, humidity and electromagnetic interference. The module uses a duplex LC interface that provides a very high level of functionality and functional integration, accessible via a two-wire serial interface.

II. Advantages and application scenarios of the 400G QSFP-DD FR4 optical module

Excellent bandwidth density: The 400G QSFP-DD FR4 optical module has a higher bandwidth density, which can achieve a larger capacity of data transmission in a limited space, providing an efficient and stable data transmission solution for the data center.

Low-power design:In communication networks, with the continuous expansion of mobile communications, broadband access and other services, the demand for high-speed data transmission is also increasing. The 400G QSFP-DD FR4 optical module uses an advanced low-power design, effectively reducing energy consumption, in line with the trend of sustainable development.

Strong compatibility:The 400G QSFP-DD FR4 optical module adopts a common interface standard and can be compatible with existing optical fiber communication devices, achieving smooth upgrade. The 400G QSFP-DD FR4 optical module provides a stable and reliable network connection for daily business operations.

As a high-speed data transmission module, the 400G QSFP-DD FR4 optical module has key features such as excellent bandwidth density and low power consumption design, and will play an important role in data center networks, communication networks, enterprise networks and other fields. ETU-LINK as a professional module manufacturer, can provide 400G QSFP-DD FR4 optical module, welcome to consult! With the continuous progress and innovation of technology, we can expect that it will make greater contributions to the development of the digital age in the future.
