12 core vs 8 core connection, which is more suitable for 40G network cabling?

  • April 19. 2019

As we all know, 2-core connection is a common connection method in 10G networks. Do you know the connection methods between 40G network devices in a data center? Which is more suitable for 40G network cabling? Today we will discuss the two issues together.

If the 2-core connection is used to interconnect the data center 40G network devices, the number of cables in the data center is too large, and the cabling system is difficult to manage, which affects the normal operation of the data center. Based on this, two new connection methods 12-core connection and 8-core connection have been proposed for high-density structured cabling of 40G networks.

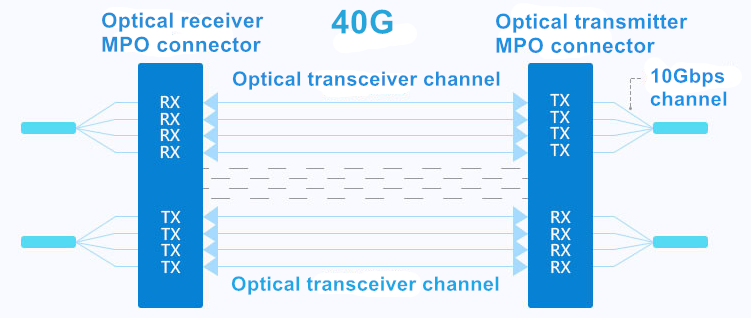

The 40G transmission is mainly realized by 8 transceiver channels of the optical module (the transmission rate of each channel is 10 Gbps), and the MPO fiber patch cord is usually used for the optical module together.

Comparison of the advantages of 12 core and 8 core connections:

The advantages of 12 core

The advantages of 8 core

High density of fiber use;

Can achieve 100% fiber utilization;

Branch patch cord can be easily routed to all common line card ports on the switch;

12 core connection cabling with existing large-scale deployment.

Only MTP fiber patch cords without positioning pins are required for connection;

The most flexible solution for 40G, 100G and 400G data transmission networks.

12 core connection solution

Although the common 40G optical module uses an 8-core fiber optic cable, we can still connect to the QSFP port using a 12-core connection technology. In fact, many people who use 40G cable use 12-core connection technology in the trunk network now, as shown below:

Disadvantages:

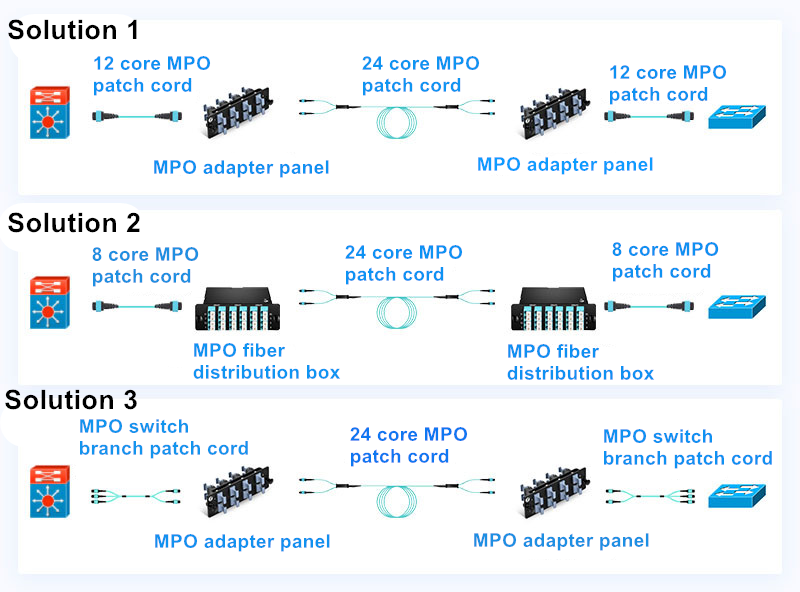

Solution 1: Insert the 12-core fiber connector into an optical module that requires only 8-core fiber. Four fibers are not used.

Solution 2 & Solution 3: Although the solution through the 12-core to 8-core cable conversion module or branch patch cord achieves 100% full utilization of the backbone fiber in this solution, it adds additional MPO connectors and insertion loss.In general, this is not the best solution in terms of cost or cable performance, so there need a more reasonable solution.

8 core connection solution

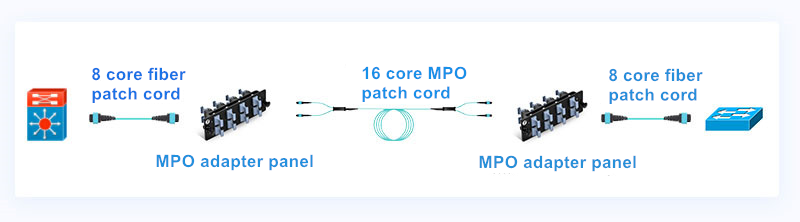

As mentioned above, the 8-core connection can easily achieve 100% full utilization of the backbone fiber and no other losses. In addition, the cabling is simpler and more flexible. However, it is slightly disadvantageous than the 12-core connection in terms of fiber use density.

In summary, the 8-core connection is the best solution for 40G network cabling. However, due to the early appearance of the 12-core connection and the high density of fiber use, the 8-core connection and the 12-core connection will occupy a place in the 40G network of the data center. The choice of connection mode shall be determined according to the actual application and demand.

For more details on MPO fiber patch cords, please visit ETU-Link official website:www.etulink.com
