100GBase SR4 Optics Cabling Connection

  • August 08. 2018

Today let's learn about the MPO Patch cord.

Last time one of our customer bought 100G SR4 MPO 100M, compatible with Juniper QFX5110 Switch.



1.How to connect the 2 transceivers in 2 switches with a patch cord directly?

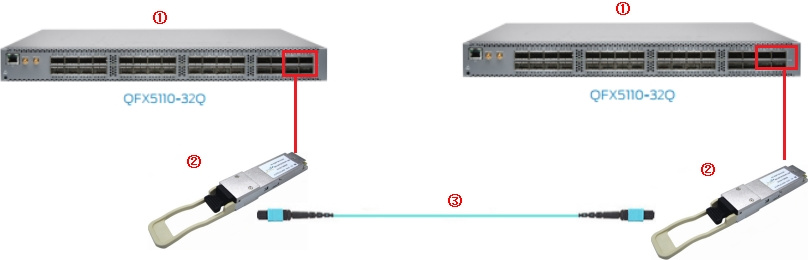

It's a question for him. So I gave him a solution, like the following picture shows.

①we imagine you use Juniper QFX5110-32Q to test the modules.

②100G SR4 MPO 100M QSFP28 modules.

③Patch cord 12core MPO/PC-MPO/PC 12 ribbon MM SX OM3 50/125um PVC 3M TypeB(PIN1connect PIN12) Female-Female on both end.

2.Some knowledge of MPO patch cord

1.Type A: PIN1 connect PIN12Type BPIN1 connect PIN2

2.If need to connect between 2 QSFP28 modules, have to use Type B. And Type A mostly be used like extension cord, not so common in real application.

3.The MPO patch cord is Female to Female if need to connect with 2 modules directly.

3.How to connect the cabling system with the high speed networks in data center?

That's common but a little more complicated. We use rackmount fiber to complete the interconnection.

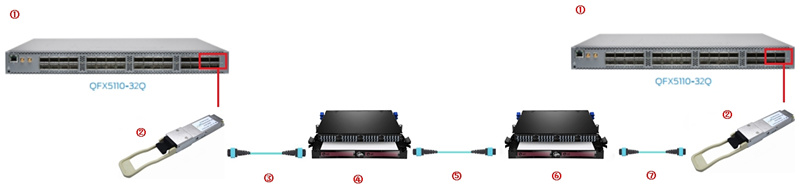

Like the picture shows,

①we imagine you use Juniper QFX5110-32Q to test the modules.

②100G SR4 MPO 100M QSFP28 modules.

③ Patch cord 12core MPO/PC-MPO/PC 12 ribbon MM SX OM3 50/125um PVC 3M Type A(PIN1connect PIN1) Female-Female on both end

④Fiber Adapter

⑤ Patch cord 12core MPO/PC-MPO/PC 12 ribbon MM SX OM3 50/125um PVC 3M Type A(PIN1connect PIN1) Male-Male on both end

Fiber Adapter

⑦Patch cord 12core MPO/PC-MPO/PC 12 ribbon MM SX OM3 50/125um PVC 3M Type B(PIN1connect PIN12) Female-Female on both end

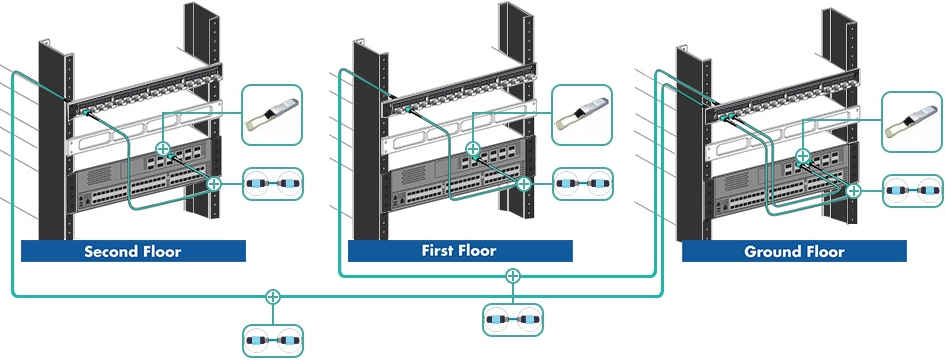

4.Combination scenario of three floors' fiber optic link interconnection
