100G era has come, demand for 100G optical modules has increased significantly

  • January 11. 2023

Due to new applications such as 4K high-definition video, live broadcast and VR have promoted the rapid growth of global network traffic, and new applications such as cloud computing, laaS services and big data have higher requirements for data transmission in data centers, global data centers have been upgraded from the original 10G/40G to 25G/100G, which has triggered an increase in the demand for 25G/100G optical modules. This blog will tell you about the demand of 100G optical module market and the types of 100G optical module.

According to the world famous institutions, the global 100G optical module market size will reach about US $3 billion in 2018. It is estimated that in 2019, with the explosion of demand for 100G optical modules in large and medium-sized data centers such as Facebook, Amazon, Alibaba Cloud, Tencent, Huawei, etc., the global shipment volume is expected to continue to double, and the market size will reach about US $3.6 billion.

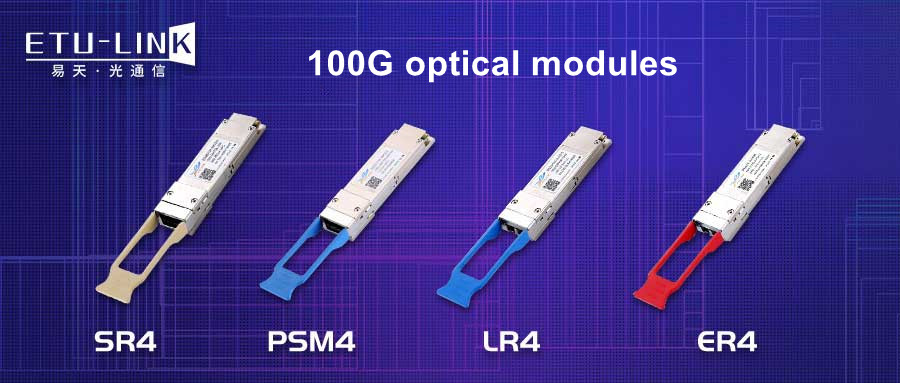

 In the future, the life cycle of 100G optical modules will be very long. Although there are 200G, 400G and even 800G optical modules, due to cost and reliability considerations, there will not be large-scale commercial use, while 100G optical modules are different. In addition to large-scale applications in large data centers, small data centers will also be used from convergence layer switches to core switches. Therefore, the applicability of 100G optical modules is relatively wide. Let's review the types of 100G QSFP28 optical modules.



 100G QSFP28 multimode optical module

100G QSFP28 multimode optical module is usually transmitted with OM3 and OM4 multimode optical fiber patch cords, and OM5 can also be used according to actual application needs. The below optical modules use OM4 optical fiber.

Abbreviation

ETU PN

Wavelength

(nm)

Distance

Connector

Fiber type

100G QSFP28 SR4

EQ28510X-3MCD01

850

100M

MPO

Multimode

100G QSFP28 eSR4

EQ28510X-3MCD03

850

300M

MPO

Multimode

100G QSFP28 BIDI

EQ2B8510X-3LCD01

850 910

100M

LC

Multimode

100G QSFP28 SWDM4

EQ2xx10X-3LCD01

850 880
910 940

100M

LC

Multimode

100G QSFP28 single-mode optical module

The 100G QSFP28 single-mode optical module uses four channels of 25G 1310 wavelength, single wave 100G 1310 wavelength, four channels of 25G CWDM coarse wavelength division multiplexing, and four channels of 25G LWDM fine wavelength division multiplexing to transmit the 100G link.

Abbreviation

ETU PN

Wavelength

(nm)

Distance

Connector

Fiber type

100G QSFP28 PSM4

EQ23110X-3MCD2

1310

500M/2KM

MPO

Single mode

100G QSFP28 CLR4

EQ2xx10X-3LCD2

CWDM4

2KM

LC

Single mode

100G QSFP28 4WDM

EQ2xx10X-3LCD40

CWDM4

40KM

LC

Single mode

100G QSFP28 LR4

EQ2xx10X-3LCD10

LWDM4

10KM

LC

Single mode

100G QSFP28 ER4

EQ2xx10X-3LCD40

LWDM4

40KM

LC

Single mode

100G QSFP28 ZR4

EQ2xx10X-3LCD80

LWDM4

80KM

LC

Single mode

100G QSFP28 DR

EQ23110X-3LCD05

1310

500M

LC

Single mode

100G QSFP28 FR

EQ23110X-3LCD2

1310

2KM

LC

Single mode

The above is the demand trend and types of 100G optical modules introduced by ETU-LINK. For more information, please refer to previous blogs.
