40G QSFP+ TO 4*LC Active Optical Cable

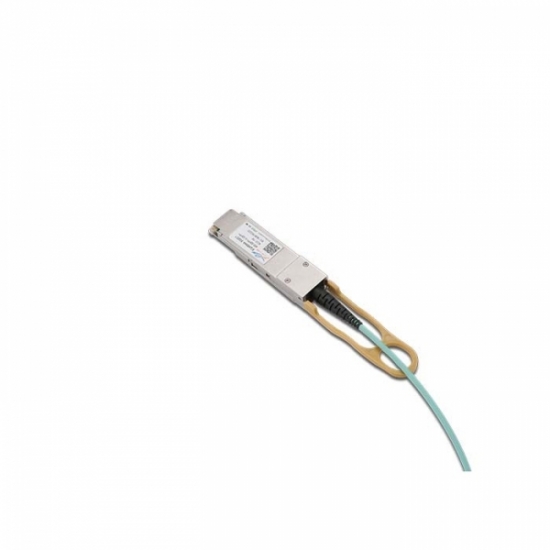

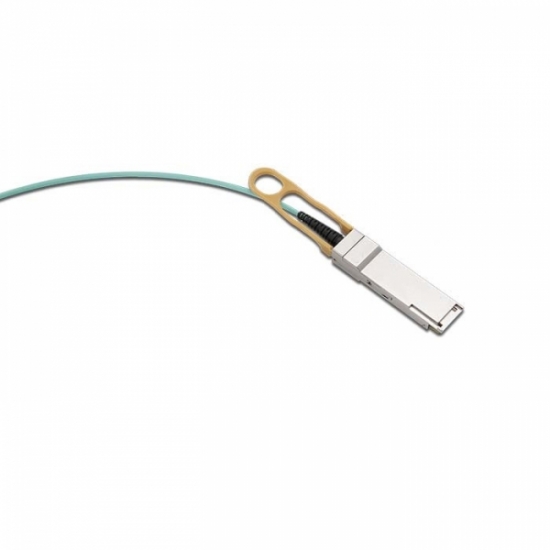

QSFP+ AOC end:

• Compliant to the 40GBASE-SR4 and XLPPI
• Specification per IEEE 802.3ba-2010 and supporting
• 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
• Compliant to the industry standard SFF-8436
• QSFP+ Specification
• Power Level 1: Max Power < 1.5 W
• Operate at 10.3125 Gbps per channel with 64b/66b
• encoded data for 40GbE application and at 10 Gbps
• with 8b/10b compatible encoded data for 40G-IB-QDR application

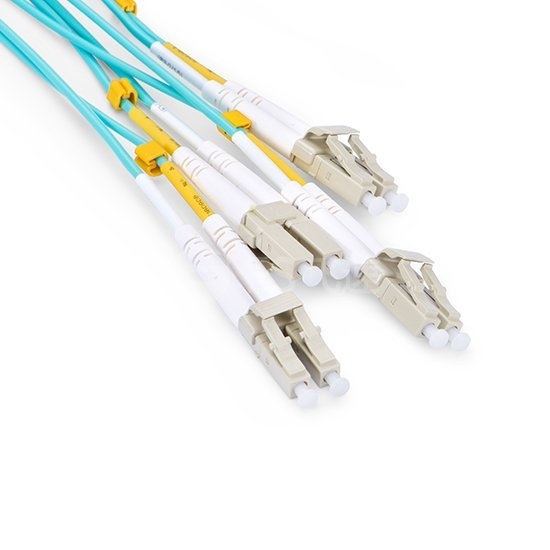

Each 4× Double LC Connect end:

• With double LC Single Mode connect, or double LC Muti-mode connect

Active Optical Cable Assembly:

• 0 to 70 C degree case temperature operating range
• Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and
• Rayoptek PIN receiver
• Hot pluggable for ease of servicing and installation
• Two Wire Serial interface
• Utilizes optical fiber for high density and thin, lightweight cable management
