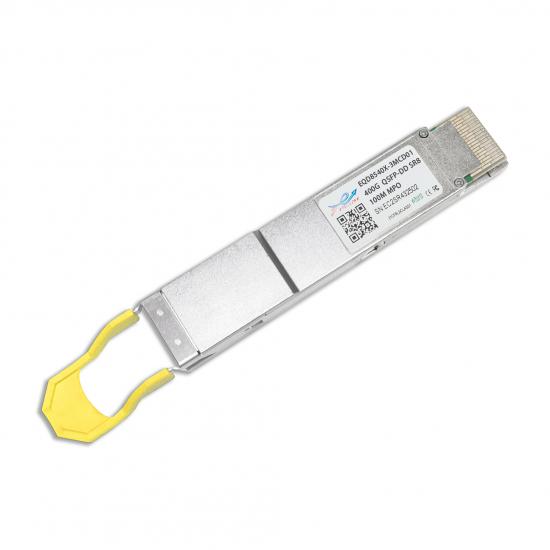

400G QSFP-DD SR8 100m MPO Optical Transceiver

Compliantwith IEEE802.3bsstandard: 400GAUI-8 electrical interface  Compliantwith IEEE802.3custandards: 4x100GBASE-FR1 optical interface Compliantwith QSFP-DD MSA HW Rev5.1 Type2 housing with MPO-12 connector Compliantwith QSFP-DD CMIS Rev4.0  Maximum power consumption 10W  Case  operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU (RoHScompliant) Class1Laser

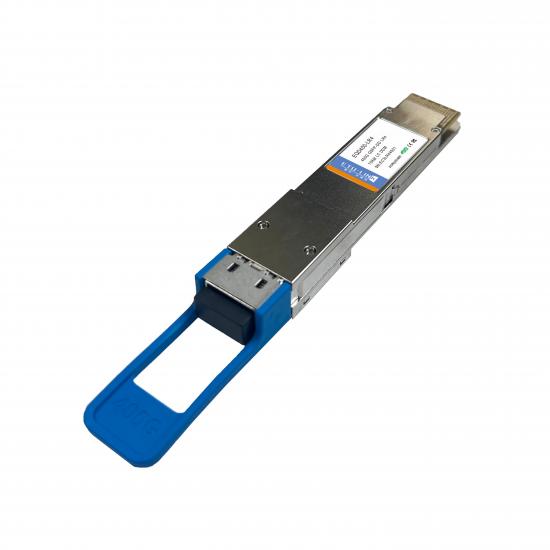

Compliant with 100G Lambda MSA: 400GBASE-LR4-10 optical interface Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface Compliant with QSFP-DD MSA HW Rev 5.1 type 2 housing with duplex LC connector Compliant with QSFP-DD CMIS Rev 4.0 Operating distance at engineering link of up to 10km Maximum power consumption 10 W Case operating temperature 0°C to 70°C Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU(RoHS compliant) Class 1 Laser

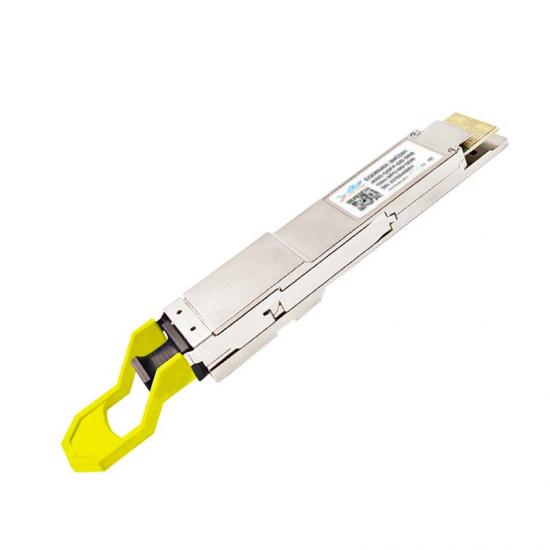

 QSFP-DD MSA compliant  Compliant to 100G Lambda MSA  400G FR4 Specification compliant  4 CWDM lanes MUX/DEMUX design  8x53.125Gb/s PAM4 electrical inter- face (400GAUI-8)  Maximum power consumption 12W  LC duplex connector  Supports 425Gb/s aggregate bit rate  Up to 2km transmission on single mode fiber with FEC  Single 3.3V power supply  RoHS compliant

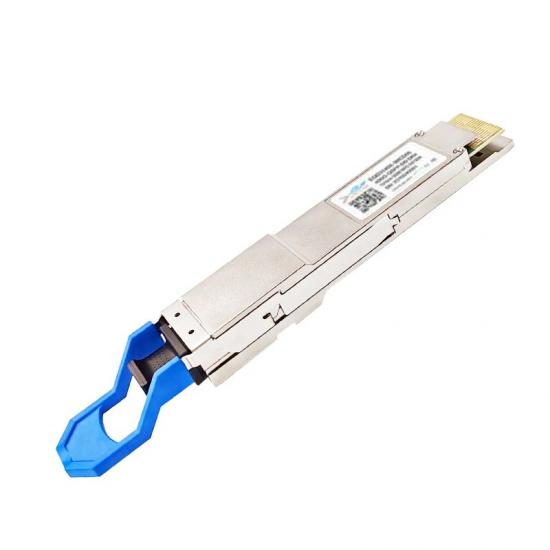

Compliant with IEEE802.3bs standard: 400GAUI-8 electrical interface  Compliant with IEEE 802.3bs standard: 400GBASE-DR4 optical interface  Compliant with QSFP-DD MSA HW Rev 5.0 Type 2 housing with MPO-12 connector  Compliant with QSFP-DD CMIS Rev 4.0  Supports 3dB channel insertion loss  Maximum power consumption 12W  Case operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring   RoHS compliant  Class 1 Laser
