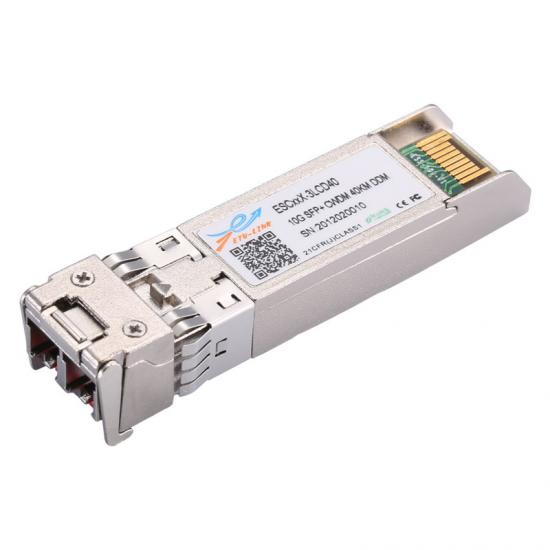

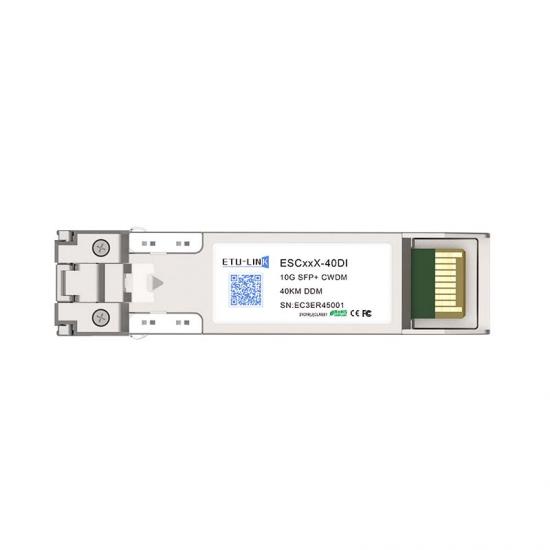

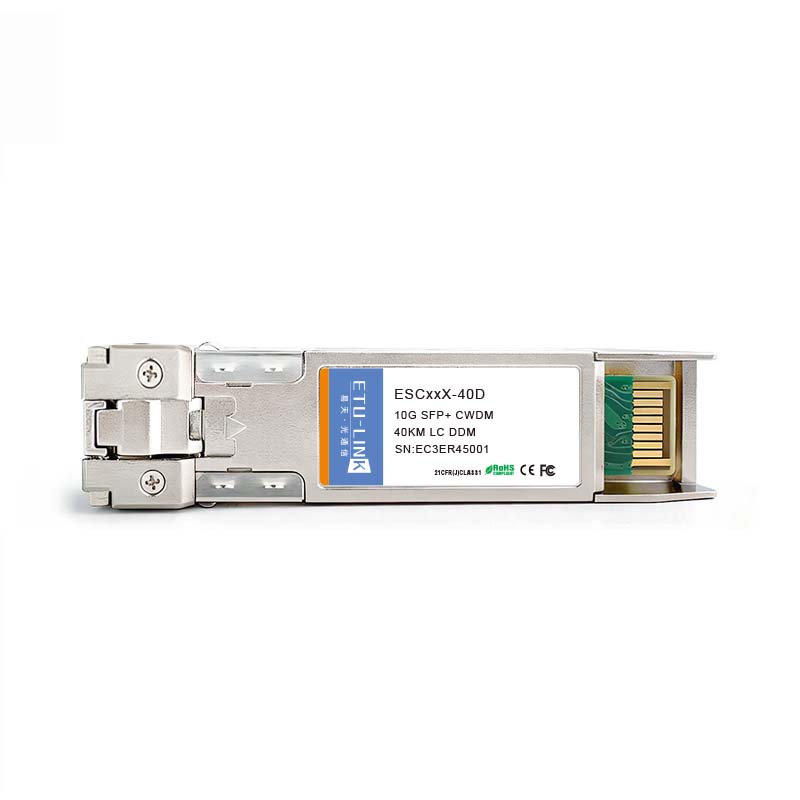

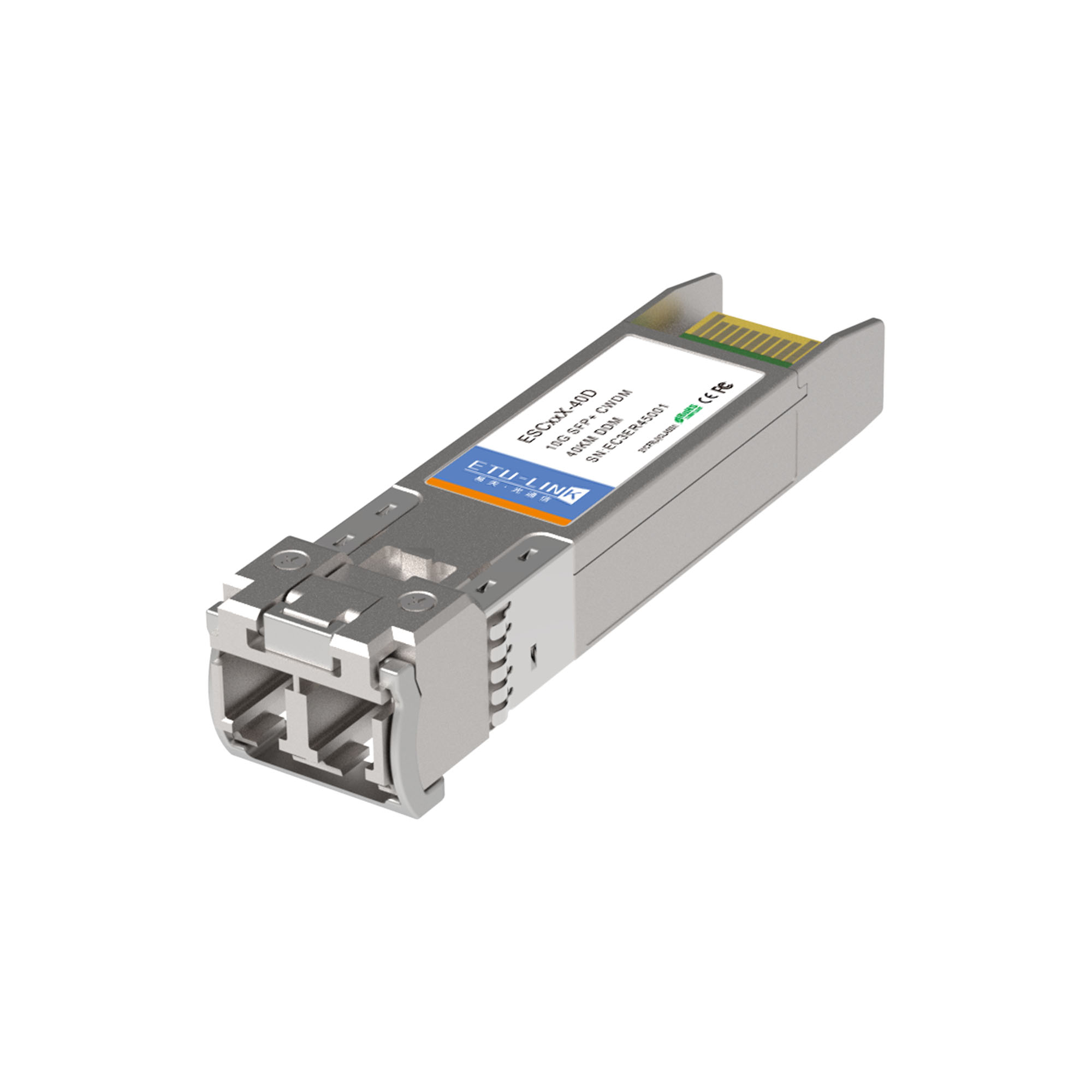

10G SFP+ CWDM 40KM LC Optical Transceiver

Lane signaling rate 106.25Gb/s with PAM4 Up to 40km transmission on SMF EML Laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAU1-4) Support KP4 FEC inside the module High speed l/0 electrical interface l2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with duplex LC connector Single +3.3V power supply Power consumption <4W Operating case temperature: 0 to +70 °C Compliant to 802.3cu,SFF-8636&SFF-8679 standar Compliant to 100G Lambda MSA100G-ER1 Optical Specifications Complies with EU Directive 2015/863/EU

Compliantwith IEEE802.3bsstandard: 400GAUI-8 electrical interface  Compliantwith IEEE802.3custandards: 4x100GBASE-FR1 optical interface Compliantwith QSFP-DD MSA HW Rev5.1 Type2 housing with MPO-12 connector Compliantwith QSFP-DD CMIS Rev4.0  Maximum power consumption 10W  Case  operating temperature 0°C to 70°C  Two wire serial Interface with digital diagnostic monitoring Complies with EU Directive 2011/65/EU (RoHScompliant) Class1Laser

PN: ESX-LB Features  SFP+ MSA Compliant  Hot-pluggable MSA foot print  Custom Memory Maps Capability  Case Temperature range from -20° to 85°C  Compliant with SONET, SDH, GBE, FC  Power Consumption Different Option  Internal Attenuation Different Option Applications  Board and System Level Testing  Test and Measurement  Switch and Router Chamber Testing ---HASS and HALT  100Mb/s to 10.5Gbps Description 10G SFP+ Loopback modules provide an effective way of testing the SFP+ port in the host system by looping back the electrical signal (optics are excluded). The units provide basic serial ID information that attempts to mimic a shortwave Gigabit Ethernet, 1.25G, 2. 125G FC SFP transceiver, 4.25G FC, 8.5G FC and 10Gb/s Ethernet/FC for factory, environment, installation, simulation tests.
