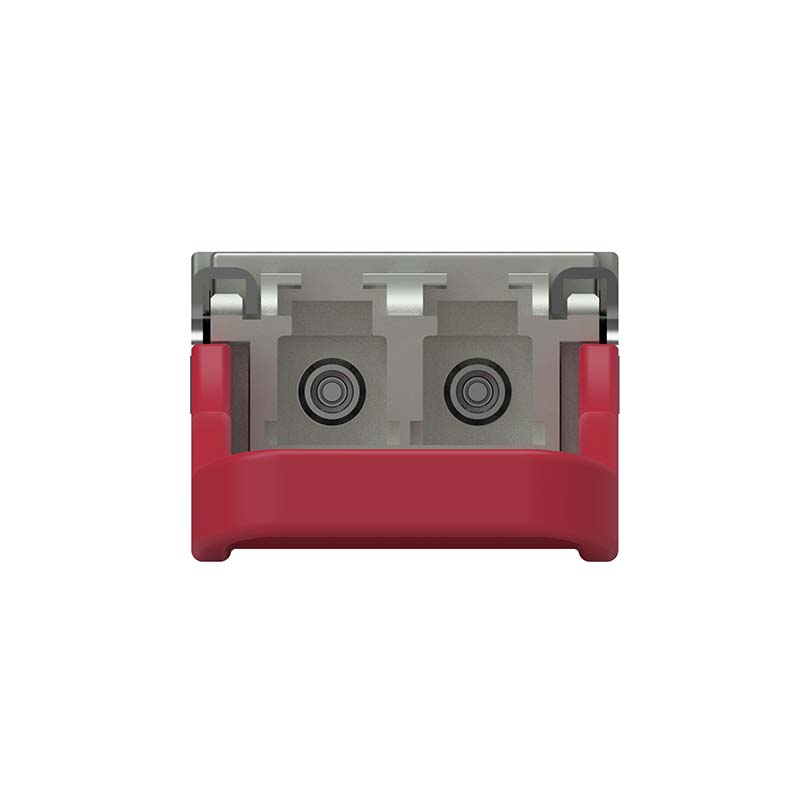

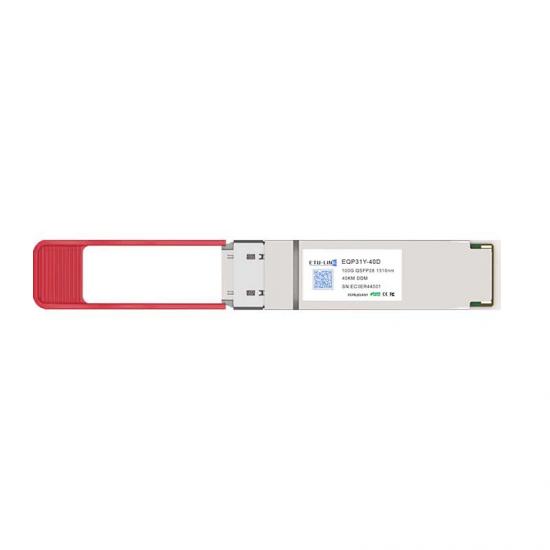

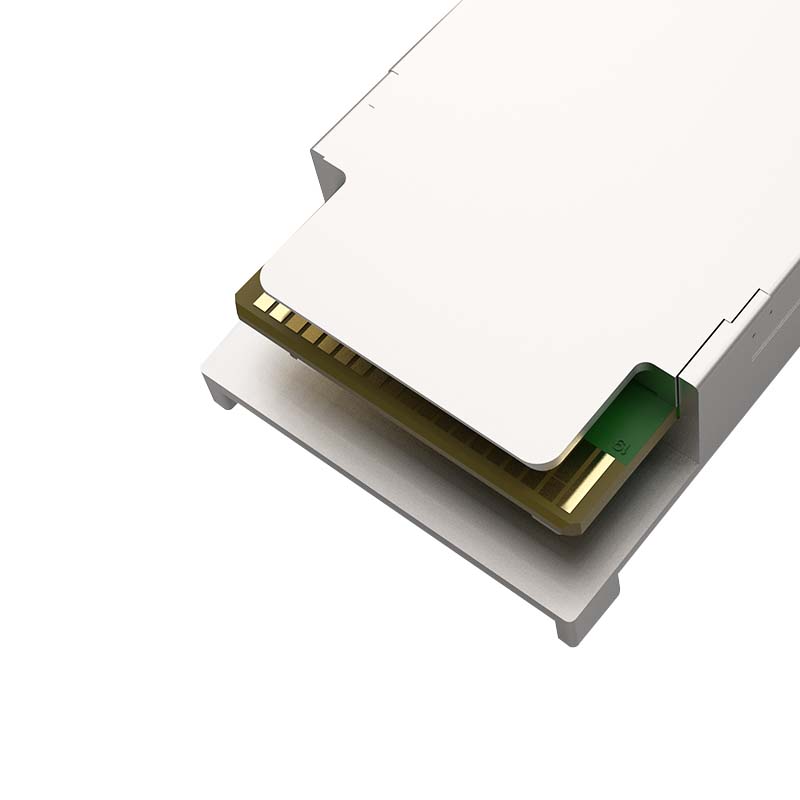

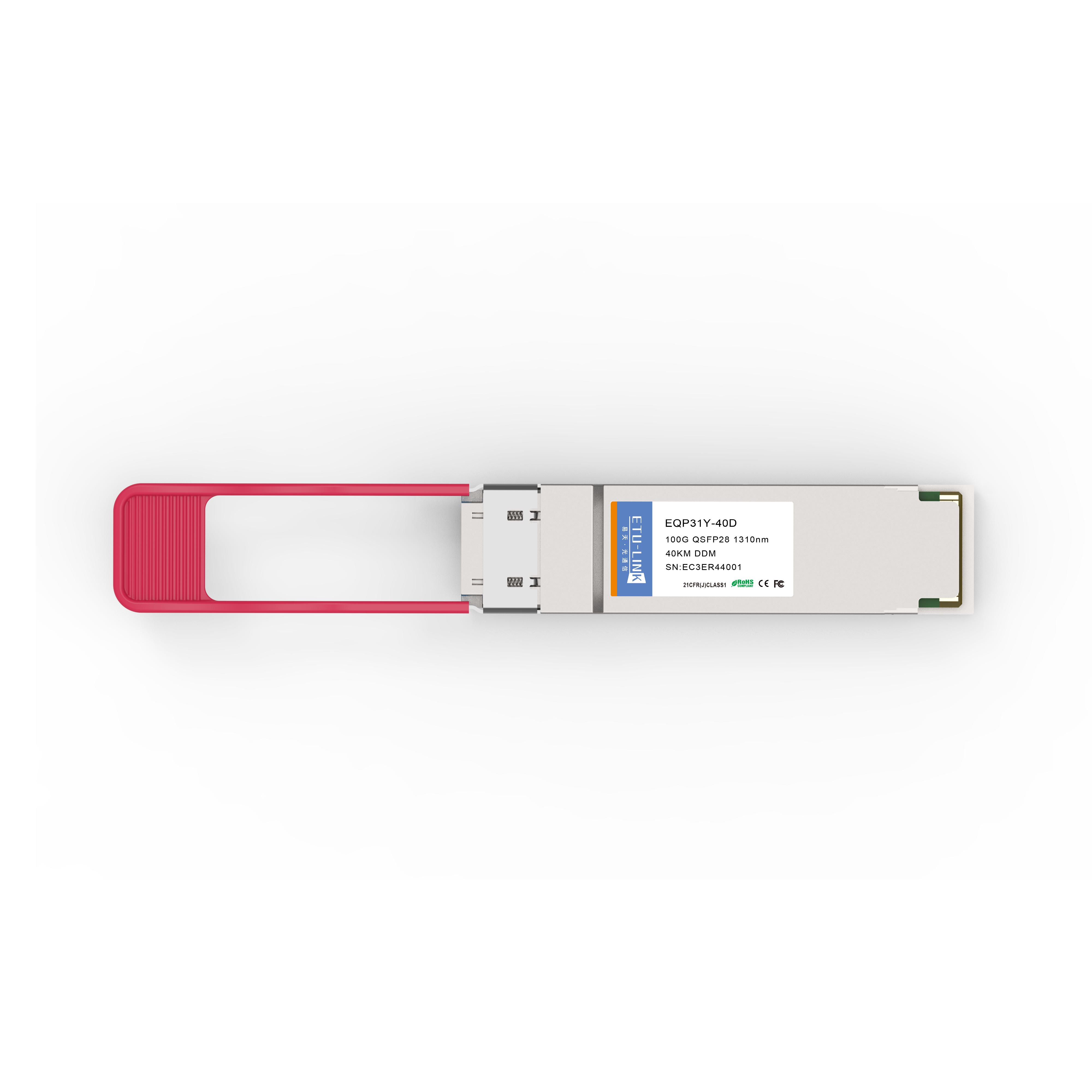

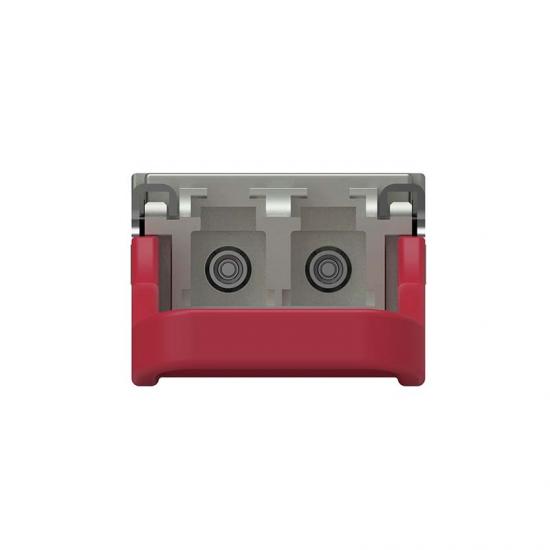

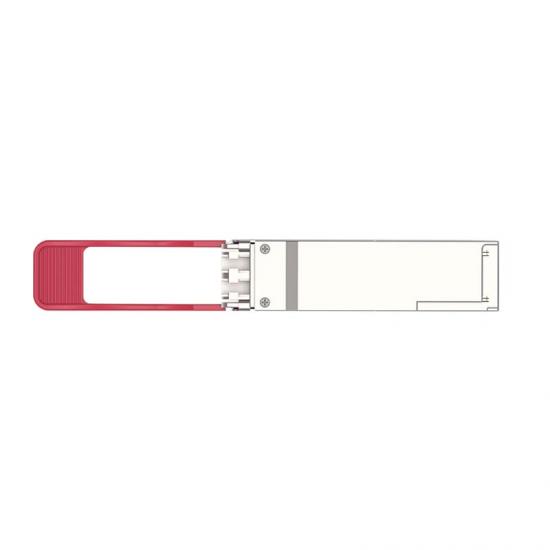

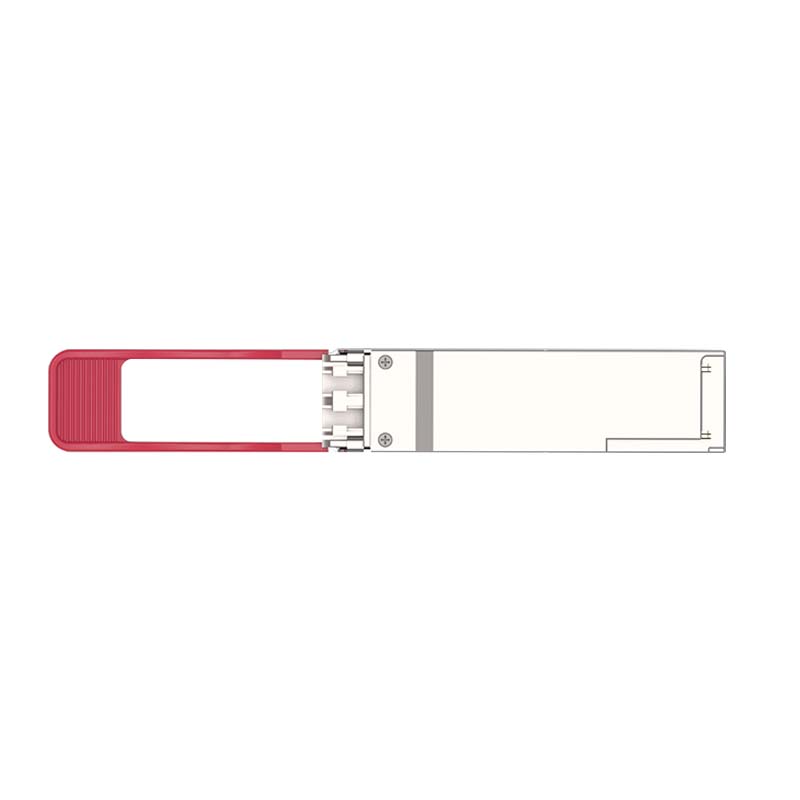

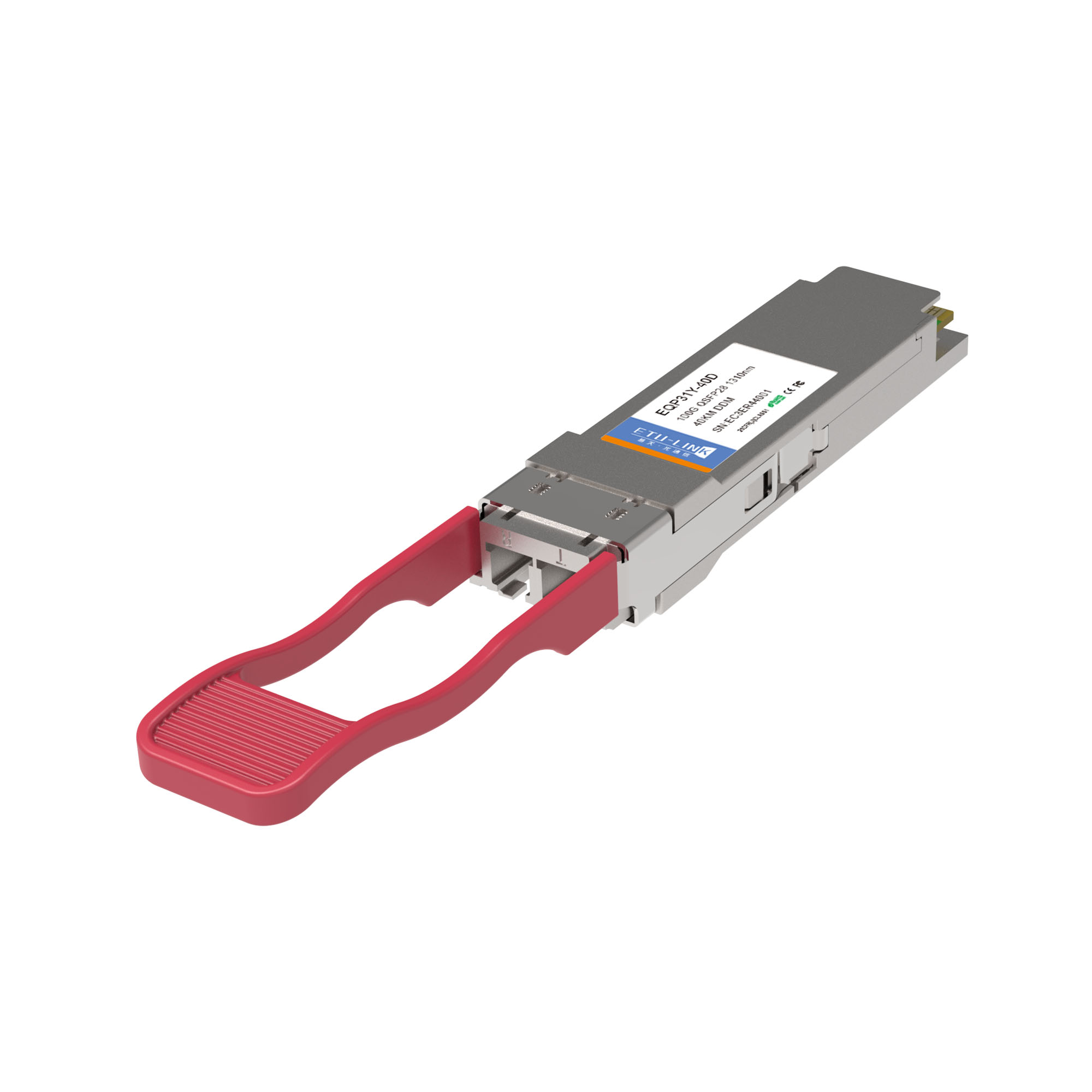

100G QSFP28 ER1 Single Lambda 40KM LC Optical Transceiver

Lane signaling rate 106.25Gb/s with PAM4 Up to 30km transmission on SMF EML Laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAU1-4) Support KP4 FEC inside the module High speed l/0 electrical interface l2C interface with integrated Digital Diagnostic monitoring QSFP28 MSA package with duplex LC connector Single +3.3V power supply Power consumption <4W Operating case temperature: 0 to +70 °C Compliant to 802.3cu,SFF-8636&SFF-8679 standar Compliant to 100G Lambda MSA100G-ER1 Optical Specifications Complies with EU Directive 2015/863/EU

Software: 1 Software Name: Coding Box Software 2 Operating Environment: Windows XP\7\8\8.1\10 32\64bit 3 Software Description: Write EEPROM code to Module, view and export the EEPROM code file, and read DDM Hardware: 1 Name: Coding Box 2 Size: 90mm*80mm*25mm 3 Weight: 135g 4 nterface Type: USB Type C (USB power supply) 5 Work Voltage: +5V 6 Maximum Power: 3.5W 7 Support Module Type: SFP, SFP+, SFP28, SFP56, XFP, QSFP+, QSFP28, QSFP DD The CodingBox connects to a PC through a USB port to implement functions such as write code and DDM for SFP type, XFP type, QSFP type, and QSFP-DD type optical modules.
