Although 40 GBIT/s and 100 GBIT/s data centers are developing rapidly, 10 GBIT/s optical modules are in high demand in most application scenarios. For example, the computer rooms of many schools, organizations, and companies are still based on 10 GBIT/s Ethernet. Among them, 10 GBIT/s SFP+ optical modules occupy the largest market share. This article is easy to day light communication (ETU-link) for you to introduce the 10G SFP+ 40KM optical module.

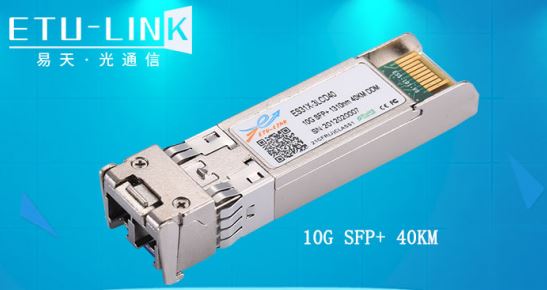

1. 10G SFP+ 40KM optical module（1310nm）

10G SFP+ 40KM optical module equipped with 1310nmDFB laser and PIN detector, duplex LC interface, the highest transmission rate of 10.3g, SFP+ MSA and 10G Ethernet standards, the transmission distance through single-mode fiber up to 40KM.

2. 10G SFP+ 40KM optical module（1550nm）

10G SFP+ 40KM optical module, also known as 10G ER in the industry, is equipped with 1550nmEML laser and PIN detector, duplex LC interface, the highest transmission rate of 10.3g, in line with SFP+ MSA and 10G Ethernet standards, the transmission distance through single-mode fiber up to 40KM.

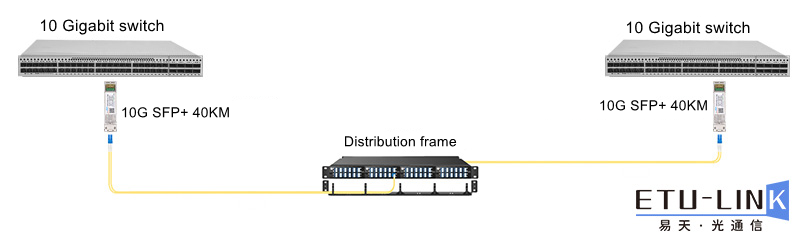

A 10G ER optical module is used to connect long-distance network devices. In general, a40G ER optical module is inserted into a 10G switch and then into a duplex LC single-mode OS2 patch cord. The other end of the patch cord is connected to a distribution frame, which is usually connected to underground optical cables to achieve long-distance transmission. The connection diagram is shown below.

3. 10G SFP+ BIDI 40KM optical module（1270/1330nm）

Its wavelength is 1270/1330nm, transmission rate support 9.95-10.3g, simplex LC interface, meet SFP+ MSA and 10G Ethernet standards, transmission distance through single-mode fiber up to 40km.

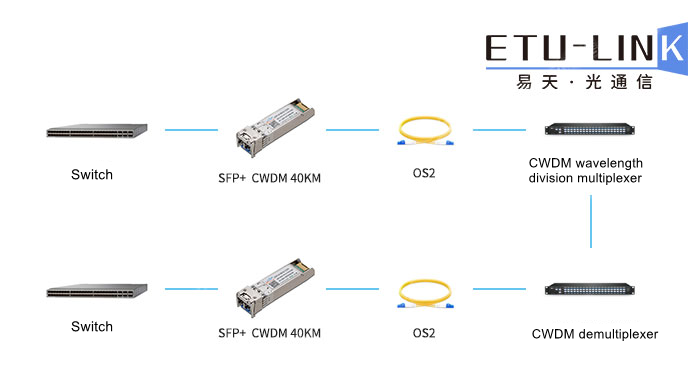

4. 10G CWDM SFP+ 40KM optical module（Wavelength division module）

It has an optional wavelength range of 1470-1610nm, a duplex LC interface, a maximum transmission rate of 11.1g, SFP+ MSA and 10G Ethernet standards, and a maximum transmission distance of 40km through single-mode fiber. The operating temperature range supports commercial grade (0℃-70℃) and industrial grade (-40℃-85℃).

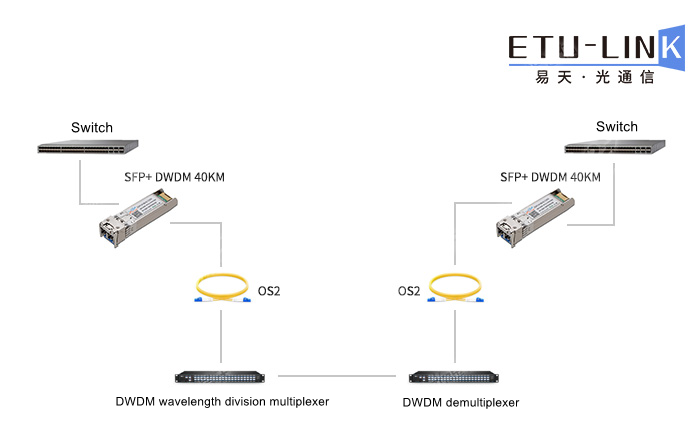

5. 10G DWDM SFP+ 40KM optical module（Wavelength division module）

It has an optional channel wavelength range of C17-C61 (interval 50HZ/100HZ), a duplex LC interface, a maximum transmission rate of 11.3g, compliant with SFP+ MSA and 10G Ethernet standards, and a maximum transmission distance of 40km through single-mode optical fiber. The operating temperature range supports commercial grade (0℃-70℃) and industrial grade (-40℃-85℃).

At present, 10G network technology and market have been mature, 10G Ethernet optical communication transmission solution is usually a switch with 10G SFP+ 10 gigabit optical transceiver, and then with appropriate fiber patch cord, to form 10G transmission with high bandwidth.
