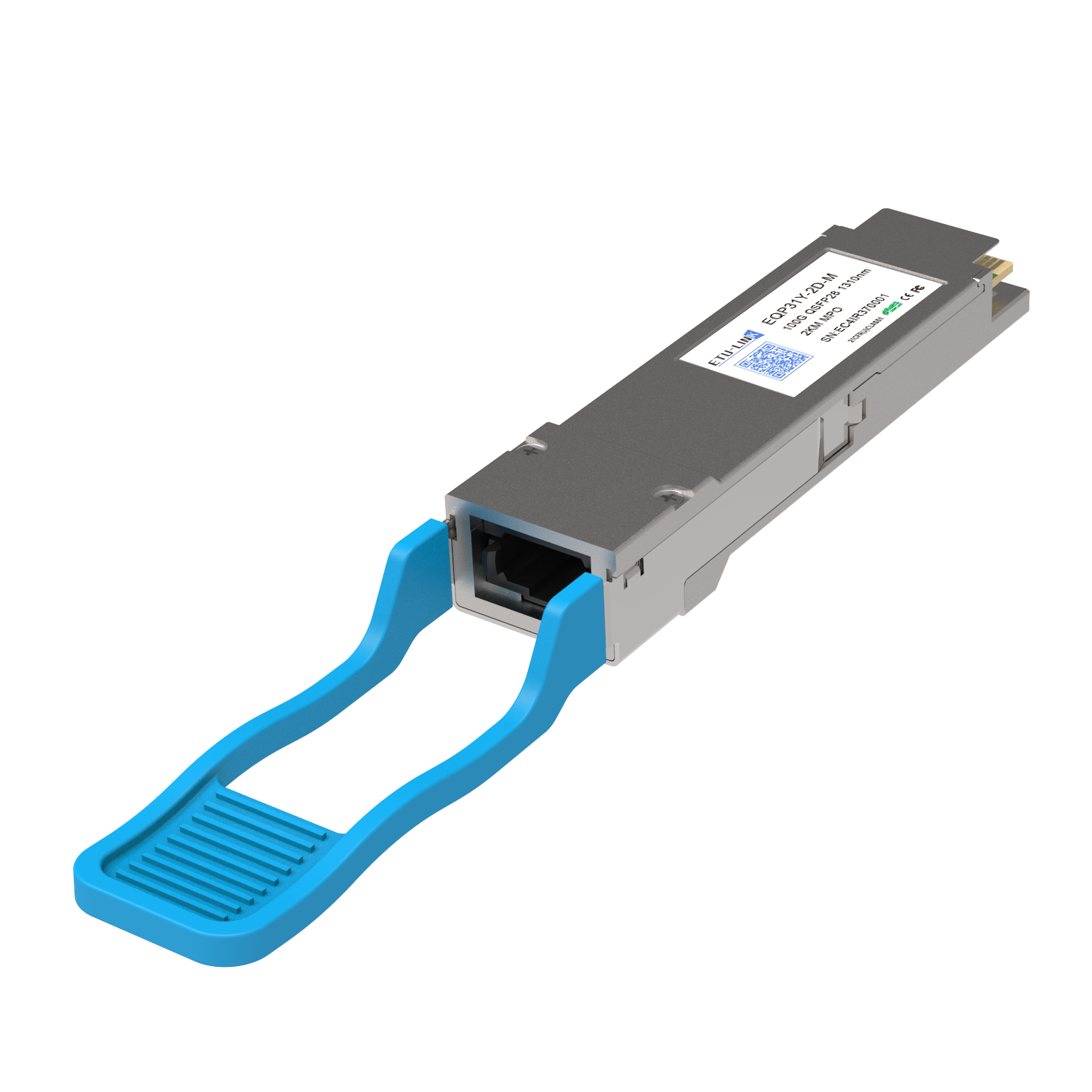

100G QSFP28 PSM4 2KM MPO Optical Transceiver

100G QSFP28 PSM4 2KM MPO Optical Transceiver



  • Product Model:

    EQP31Y-2D-M
  • Data Rate:

    100G
  • Wavelength:

    1310nm
  • Distance:

    2KM
  • Connector:

    MPO
  • Fiber Type:

    SM
  • DDM:

    yes
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    Please contact sales for confirmation
  • Product Detail

  • 4 channels full-duplex transceiver modules
  • Transmission data rate up to 26Gbps per channel
  • 4 channels 1310nm DFB
  • 4 channels PIN photo detector array
  • Internal CDR circuits on both receiver and transmitter channels
  • Support CDR bypass
  • Low power consumption <3.5W
  • Hot Pluggable QSFP form factor
  • Up to 2km reach for G.652 SMF
  • Single male MPO(APC 8-degree) connector receptacle
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant(lead free)
