 2.5G DWDM SFP 120KM LC Optical Transceiver
2.5G DWDM SFP 120KM LC Optical Transceiver 2.5G DWDM SFP 120KM LC Optical Transceiver

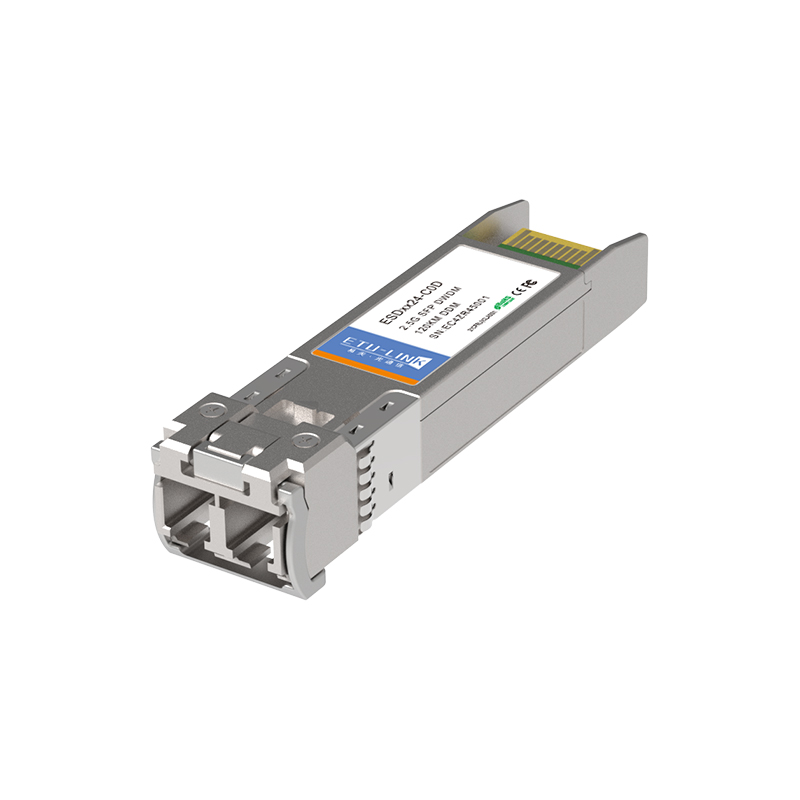

2.5G DWDM SFP 120KM LC Optical Transceiver



  • Product Model:

    ESDXX24-3LCD120

  • Data Rate:

    2.67G

  • Wavelength:

    1528.77~1563.86nm

  • Distance:

    120KM

  • Connector:

    LC

  • Fiber Type:

    SM

  • DDM:

    YES

  • Product Origin:

    China

  • Shipping Port:

    ShengZheng/HK

  • Lead Time：

    Please contact our sales for confirmatio
Contact Us Datasheets

  • Product Detail

  • Wavelength selectable to C-band ITU-T grid wavelengths
  • Suitable for use in 100GHz channel spacing DWDM systems
  • DWDM SFP MSA Compliant
  • Dual data-rate of 2.67Gbps/1.25Gbps/1.063Gbps operation
  • OC-48 120KM range
  • Up to 2.67Gb/s data rate
  • Cold Start up Wavelength Compliance
  • Low Power Dissipation <1.3W Maximum
  • -5ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, Receive optical power, Laser temperature and TEC current
  • Extended link budget with APD receiver technology
  • RoHS compliant and lead free


Hot Tags :

10G SFP Copper
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

New Products
Related Products
2.5G DWDM SFP 80KM LC Optical Transceiver
2.5G DWDM SFP 80KM LC Optical Transceiver

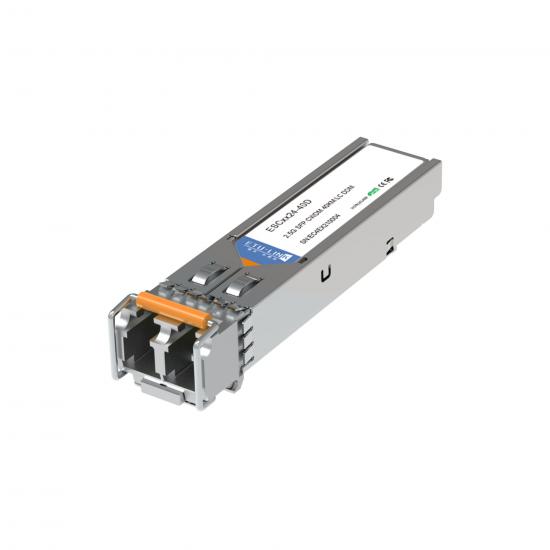

2.67G CWDM SFP Transceiver
2.5G CWDM SFP 120KM LC Optical Transceiver


2.5G CWDM SFP 80KM LC Optical Transceiver
2.5G CWDM SFP 80KM LC Optical Transceiver


2.67G CWDM SFP Transceiver
2.5G CWDM SFP 40KM LC Optical Transceiver


2.67G CWDM SFP Transceiver
2.5G CWDM SFP 2KM LC Optical Transceiver

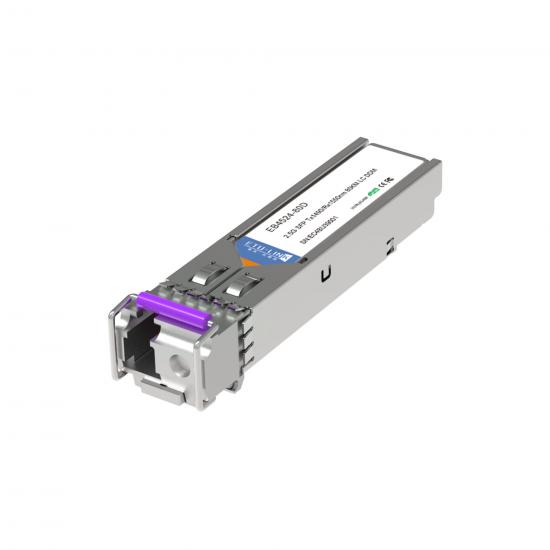

2.5G SFP BIDI Transceiver
2.5G BiDi SFP Tx1490/Rx1550nm 80KM LC Optical Transceiver

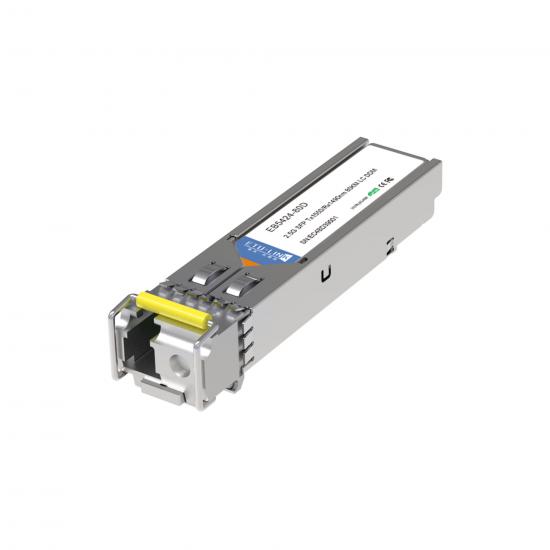

2.5G SFP Transceiver
